Plan 890092AH

Duplex House Plan with Matching Two-Floor Units

Heated S.F.
3,172
Units
2
Width
Depth

Floor Plan

Plan 890092AH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 890092AH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

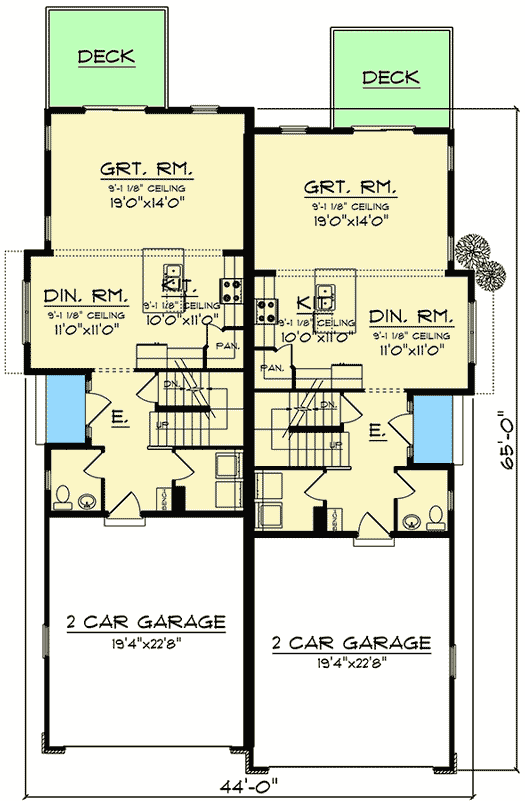

Plan 890092AH: Duplex House Plan with Matching Two-Floor Units - Floor Plan - Main Level - Craftsman, Northwest, Traditional

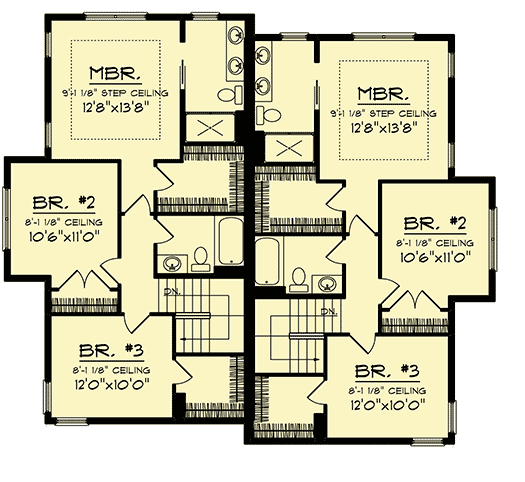

2nd Floor

Plan 890092AH: Duplex House Plan with Matching Two-Floor Units - Floor Plan - 2nd Floor - Craftsman, Northwest, Traditional

Plan Details

  • This traditional duplex includes gives you matching two floor units with 3 bedrooms located on the upper floor. Each unit gives you 1,586 sq. ft. of heated living space (797 sq. ft. on the main floor, 790 sq. ft. on the upper floor).
  • The main floor is made up of the kitchen, dining, and great room.
  • Right outside of the great room you have a perfect deck to relax on during the summer days.
  • The master bedroom features a spacious walk-in closet and dual sinks. Bedroom three features a large walk-in closet. The two bedrooms share a bathroom located in the hallway.
  • This design is completed with a 2-car garage.
Unit A
Heated Area
1,586Sq. Ft.
797 Sq. Ft. 1st
790 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
460 Sq. Ft.
Dimensions
22'width
65'depth
29' 6"height
Unfinished Areas
460 Sq. Ft. Garage
Unit B
Heated Area
1,586Sq. Ft.
797 Sq. Ft. 1st
790 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
460 Sq. Ft.
Dimensions
22'width
65'depth
29' 6"height
Unfinished Areas
460 Sq. Ft. Garage

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,172 sq. ft.

1st Floor

1,593 sq. ft.

2nd Floor

1,579 sq. ft.

Deck

56 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

65' 0"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

920 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,172 sq. ft.

1st Floor

1,593 sq. ft.

2nd Floor

1,579 sq. ft.

Deck

56 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

65' 0"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

920 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Photo Gallery
