Plan 21422DR
Duplex House Plan with Matching Units Under 1,200 Square Feet
Heated S.F.
2,398
Units
2
Width
40'
Depth
29'
Plan Details
  • This duplex house plan gives you matching 1,199 square foot units (586 square feet on the first floor and 613 square feet on the second floor).
  • A covered entry porch shelters you from the elements.
  • Inside, a spacious living/dining area is open to the kitchen.
  • Three bedrooms on the second floor share a large hall bath.
  • Related Plan: Get more room and an alternate exterior with duplex house plan 21867DR.
  • Delivery Delay: Please allow up to 15 business days for plan delivery.
Unit A
1,199 Sq. Ft.
586 Sq. Ft. 1st Floor
613 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
20' w 39' 8" d 27' 8" h
Unit B
1,199 Sq. Ft.
586 Sq. Ft. 1st Floor
613 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
20' w 39' 8" d 27' 8" h
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex House Plan with Matching Units Under 1,200 Square Feet

  • 2,398

    Heated s.f.

  • 2

    Units

  • 40'

    Width

  • 29'

    Depth

Floor Plan

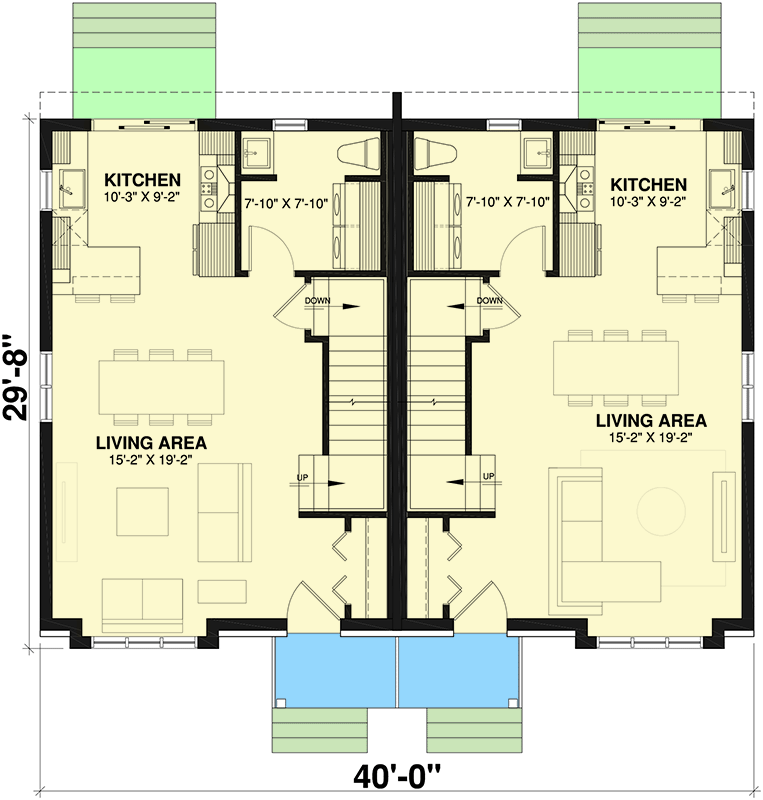

  • Main Level

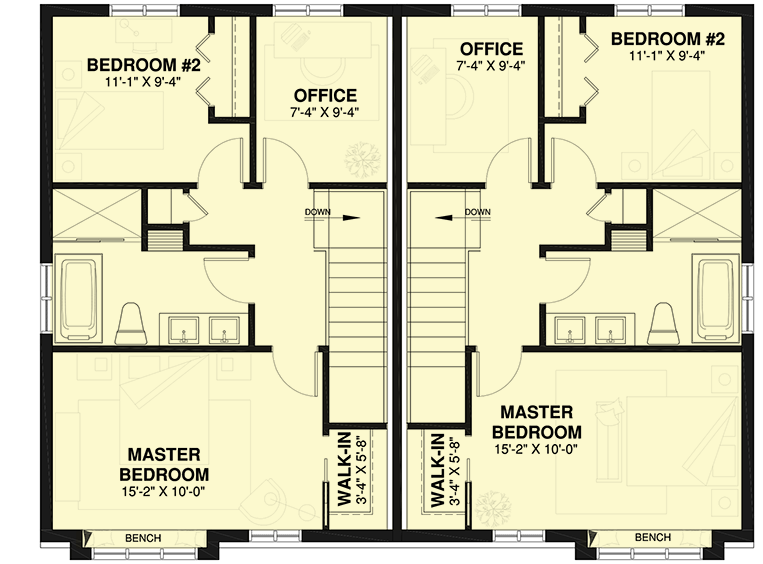

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,398 sq. ft.
  • 1st Floor: 1,172 sq. ft.
  • 2nd Floor: 1,226 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 29' 0"
  • Max ridge height: 27' 8"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
