Duplex House Plan with Side-By-Side 3-Bed Units Under 1700 Square Feet

Heated S.F.
3,298
Units
2
Width
Depth

Floor Plan

Plan 41862DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 41862DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

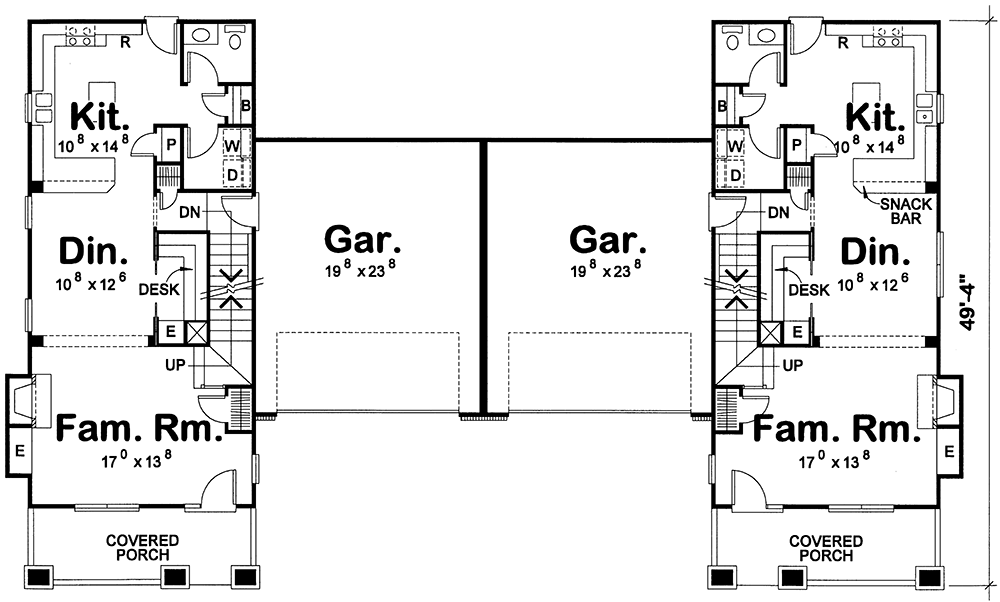

Plan 41862DB: Duplex House Plan with Side-By-Side 3-Bed Units Under 1700 Square Feet - Floor Plan - Main Level - Country, Craftsman

2nd Floor

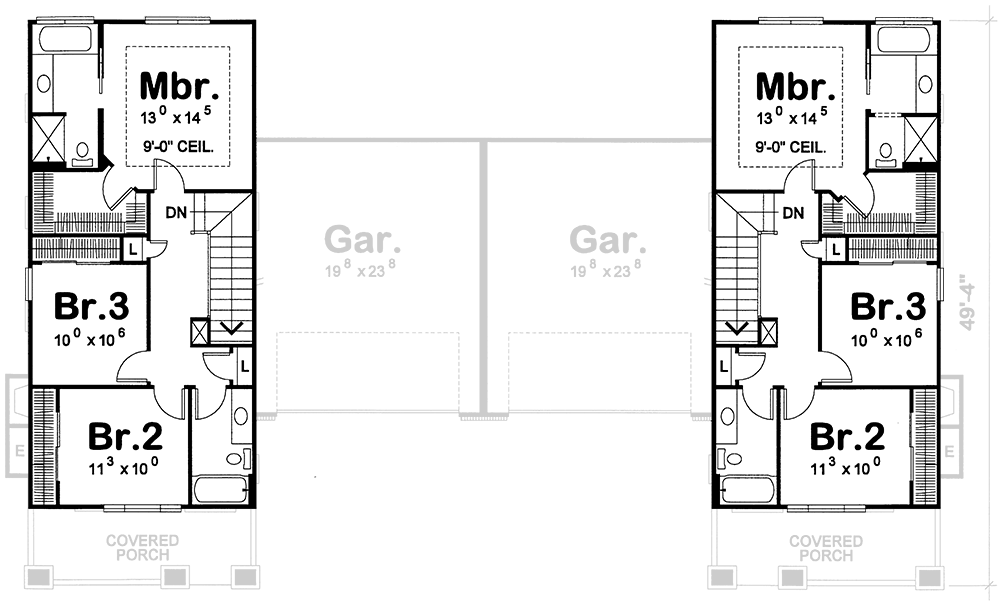

Plan 41862DB: Duplex House Plan with Side-By-Side 3-Bed Units Under 1700 Square Feet - Floor Plan - 2nd Floor - Country, Craftsman

Plan Details

  • This duplex house plan gives you matching 3 bed, 3 bath units, each with a 2-car garage.
  • Each unit delivers 1,649 square feet of heated living (853 sq. ft. on the main floor and 796 sq. ft. on the second floor) and includes a 487 square foot garage.
  • Related Plan: Get an alternate version with duplex house plan 41868DB.
Unit 1
Heated Area
1,649Sq. Ft.
853 Sq. Ft. 1st
796 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
487 Sq. Ft.
Dimensions
40'width
49' 4"depth
Unfinished Areas
487 Sq. Ft. Garage
Unit 2
Heated Area
1,649Sq. Ft.
1706 Sq. Ft. 1st
1592 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
487 Sq. Ft.
Dimensions
40'width
49' 4"depth
28' 1"height
Unfinished Areas
974 Sq. Ft. Attached
487 Sq. Ft. Garage

What's Included

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,298 sq. ft.

1st Floor

1,706 sq. ft.

2nd Floor

1,592 sq. ft.

Porch, Front

133 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

49' 4"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

487 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Country

Craftsman

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,298 sq. ft.

1st Floor

1,706 sq. ft.

2nd Floor

1,592 sq. ft.

Porch, Front

133 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

49' 4"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

487 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Country

Craftsman

Special Features

Master Suite - Upstairs
