Plan 623342DJ
Duplex House Plan with Side-By-Side 3-Bedroom Units - 1277 Sq Ft Each
Heated S.F.
2,554
Units
2
Width
60'
Depth
32' 4"
Cars
2
Tour
Videos
What's Included
Plan Details

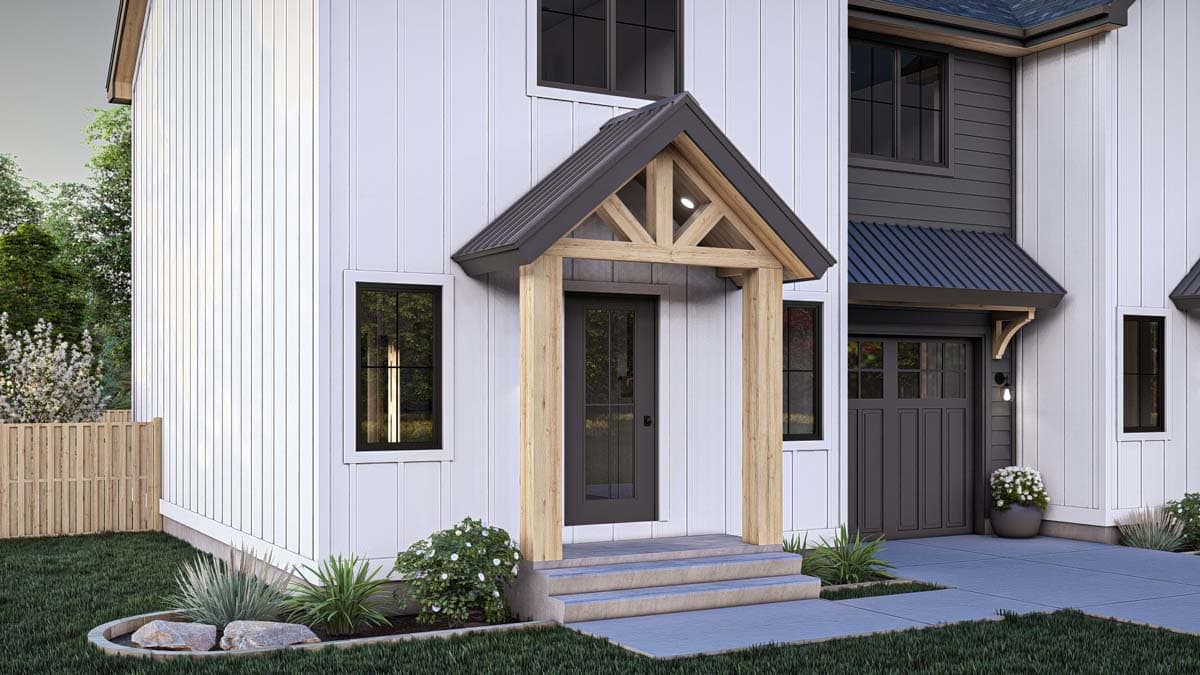

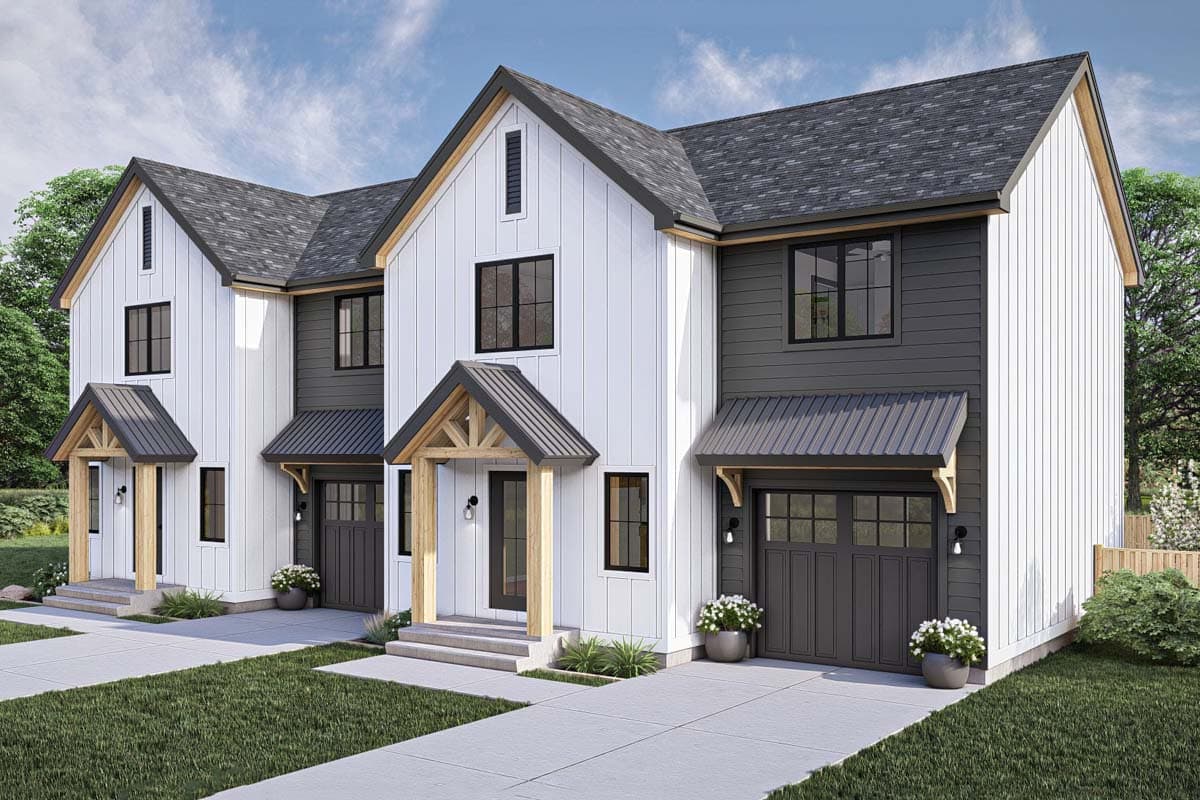

  • This duplex house plan gives you side-by-side 3 bedroom units, each 1,277 square feet of heated living space and is the 2-family version of single-family house plan 623276DJ. The exterior showcases a harmonious mix of board and batten siding, complemented by the elegant presence of lap siding. The gabled front porch has a decorative wood truss, adding to the curb appeal.
  • Above the garage, a sleek shed roof with standing seam metal roofing adds a modern twist to the design, while also protecting the garage area. The 1-car garage provides practicality and convenience, offering secure parking and storage space.

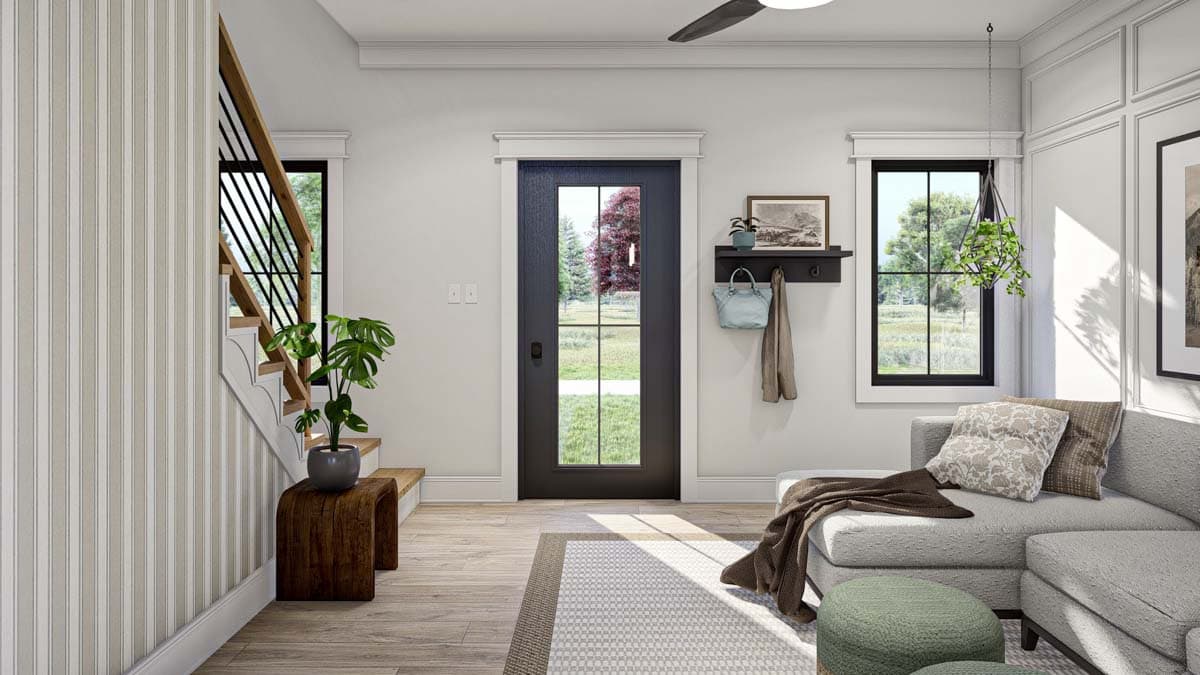

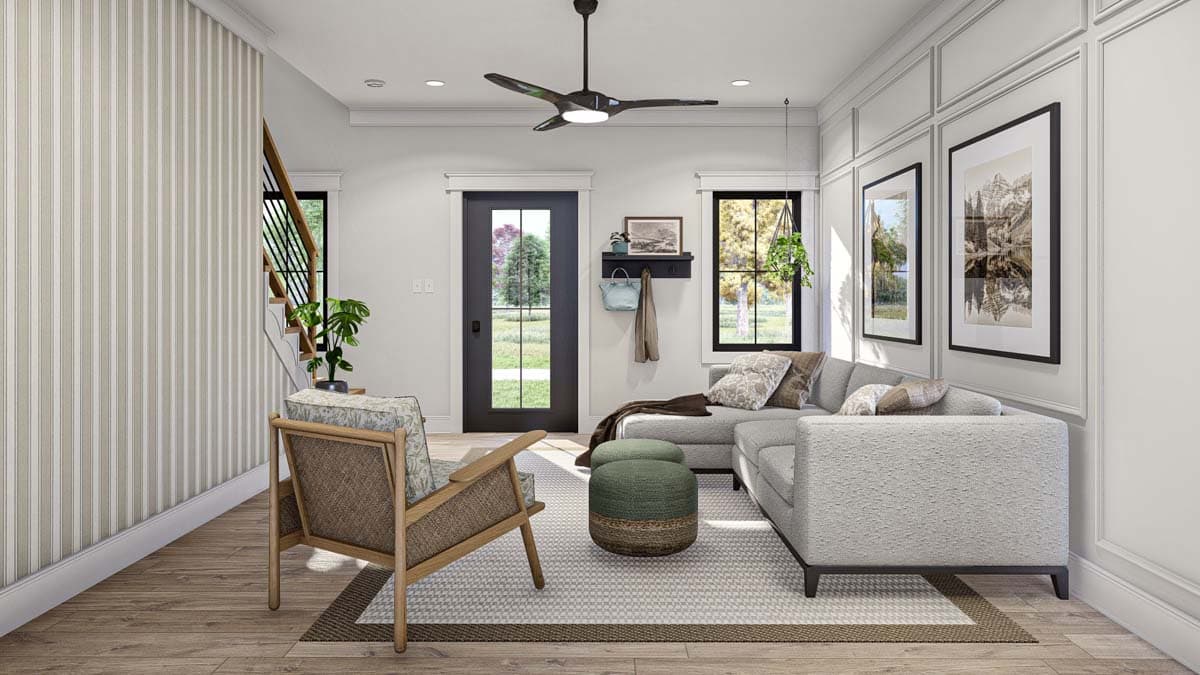

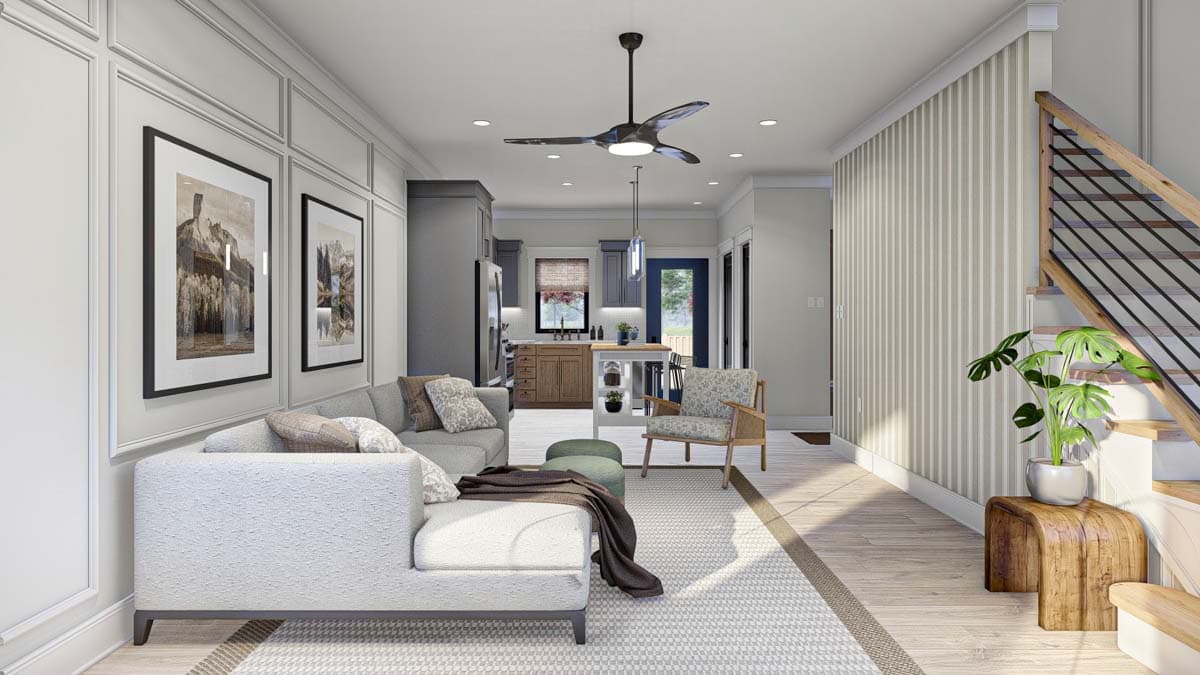

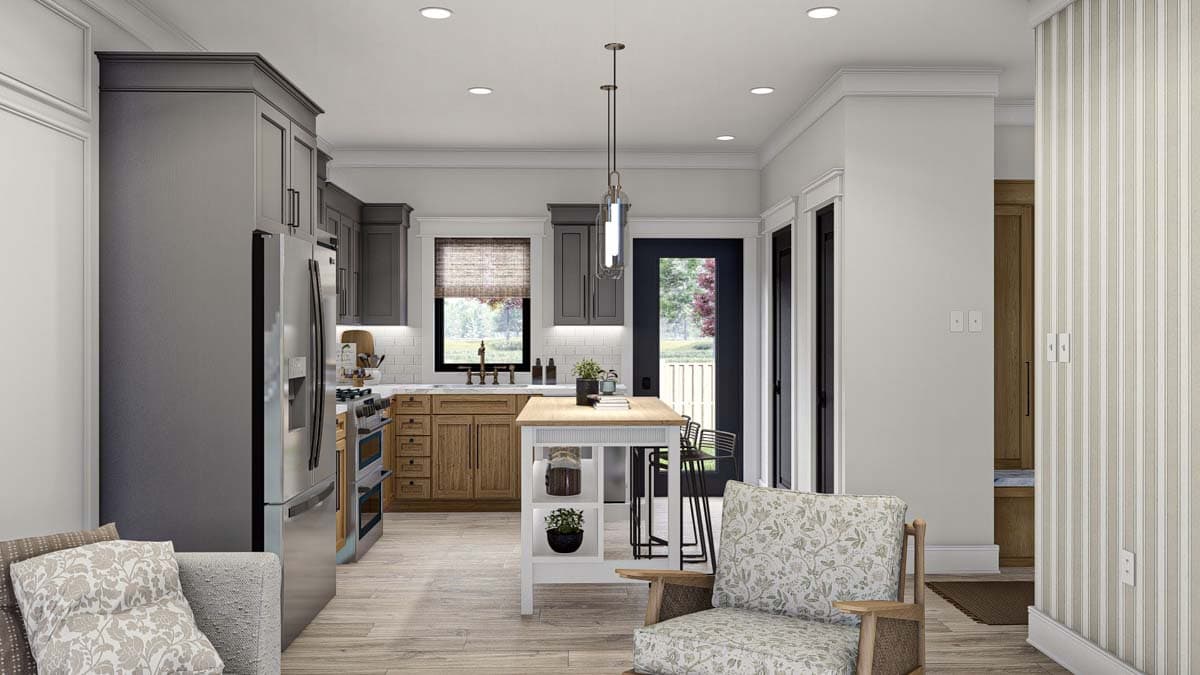

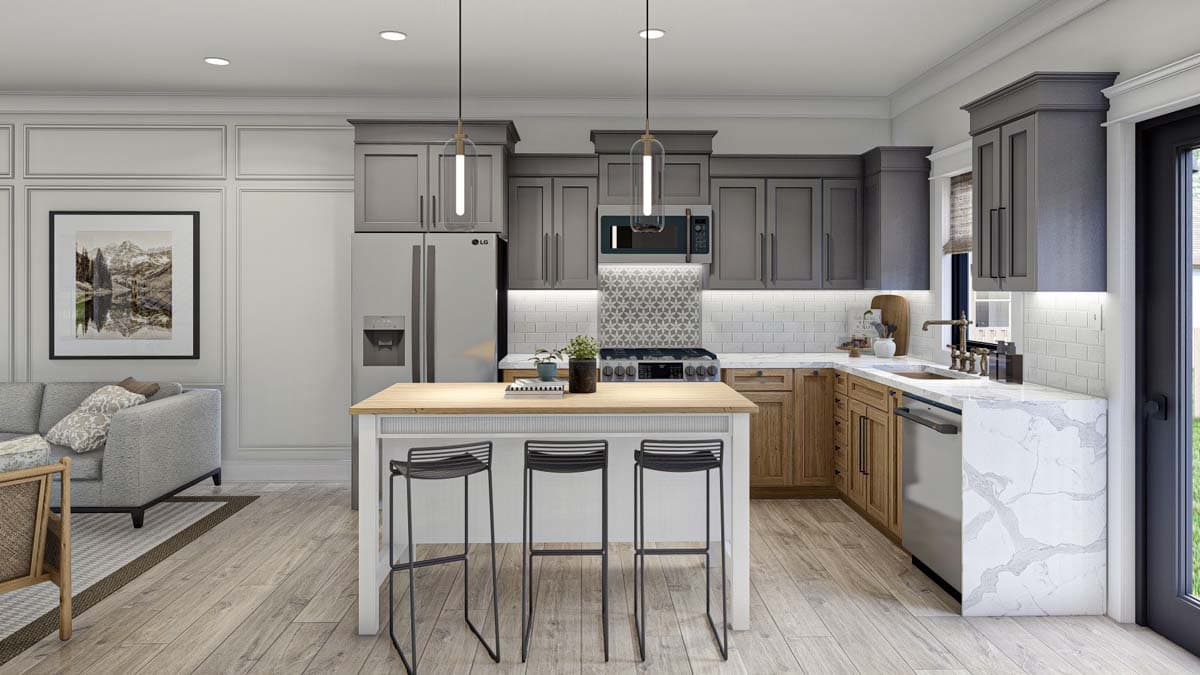

  • Inside, you are greeted by an open and inviting living room. The living room seamlessly flows into the modern kitchen, creating a seamless transition between living and dining spaces. The kitchen boasts an island with a convenient snack bar.
  • A thoughtful addition to the main floor is the powder bath, adding convenience for both residents and visitors alike.

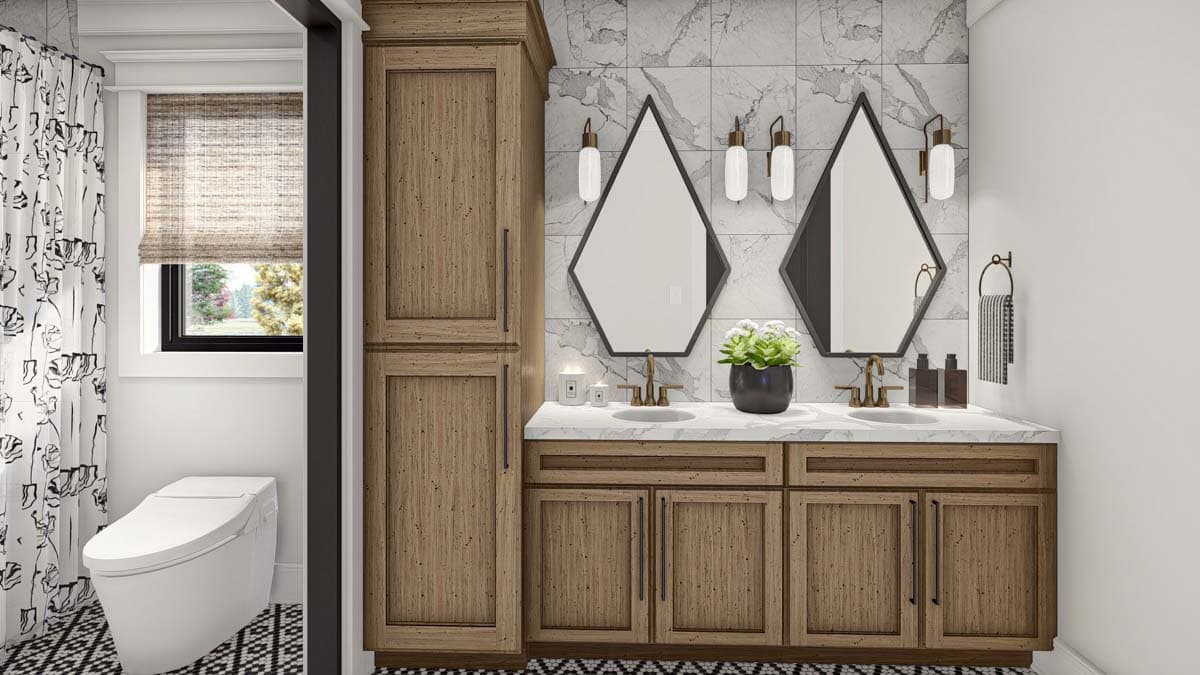

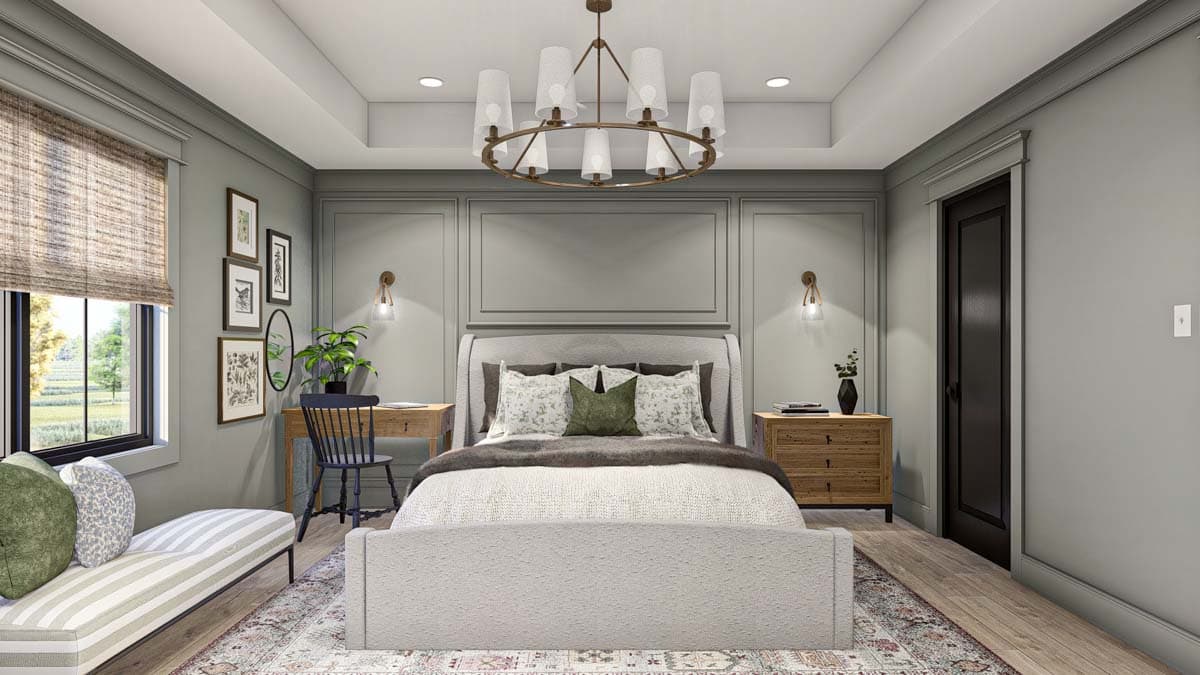

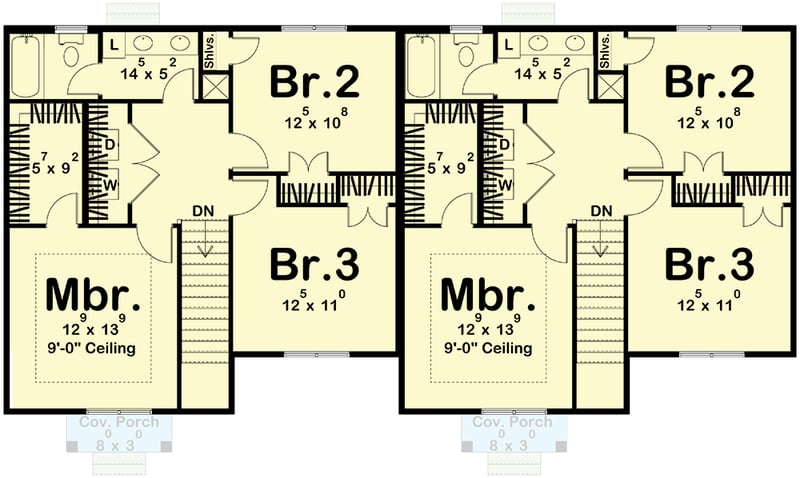

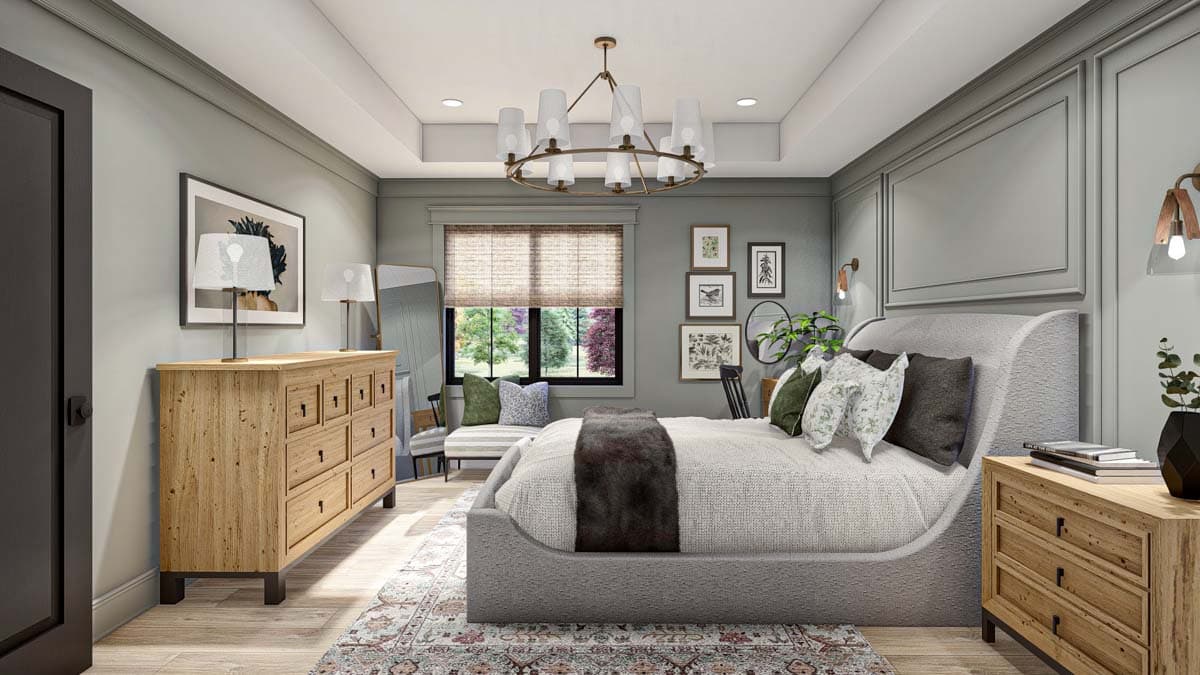

  • All three bedrooms are upstairs. The master bedroom boasts a spacious walk-in closet. The remaining two bedrooms are equipped with reach-in closets, providing practical storage solutions. All three bedrooms share a hall bathroom complete with a double vanity. A laundry area is centrally located for everyone's convenience.
  • Related Plan: Get a single family version with house plan 623276DJ.
Unit A
1,277 Sq. Ft.
508 Sq. Ft. 1st Floor
769 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
1 Vehicle
Attached
317 Sq. Ft.
30' w 32' 4" d 27' 2" h
Unit B
1,277 Sq. Ft.
508 Sq. Ft. 1st Floor
769 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
1 Vehicle
Attached
317 Sq. Ft.
30' w 32' 4" d 27' 2" h
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex House Plan with Side-By-Side 3-Bedroom Units - 1277 Sq Ft Each

  • 2,554

    Heated s.f.

  • 2

    Units

  • 60'

    Width

  • 32' 4"

    Depth

Floor Plan

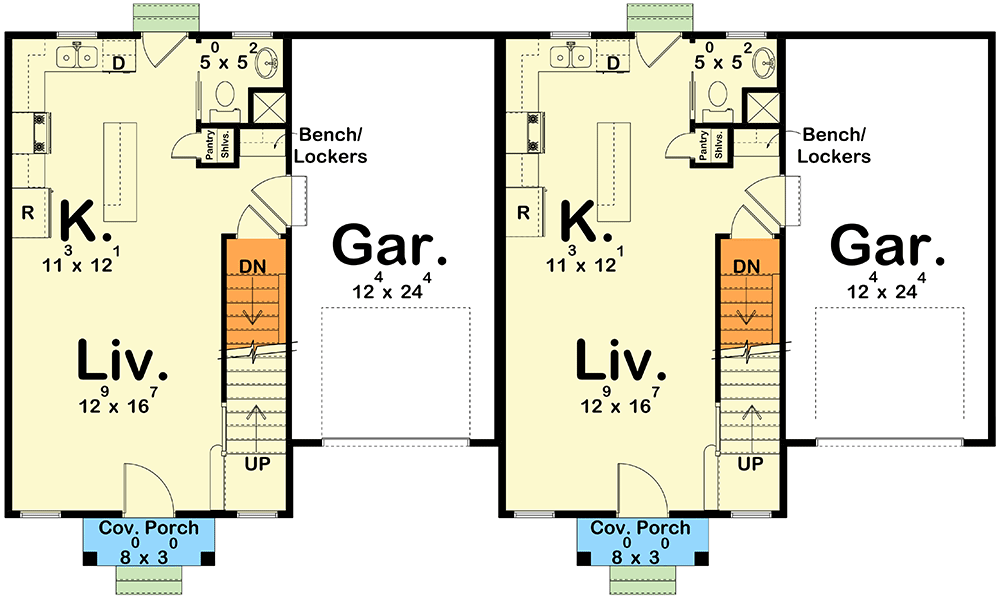

  • Main Level

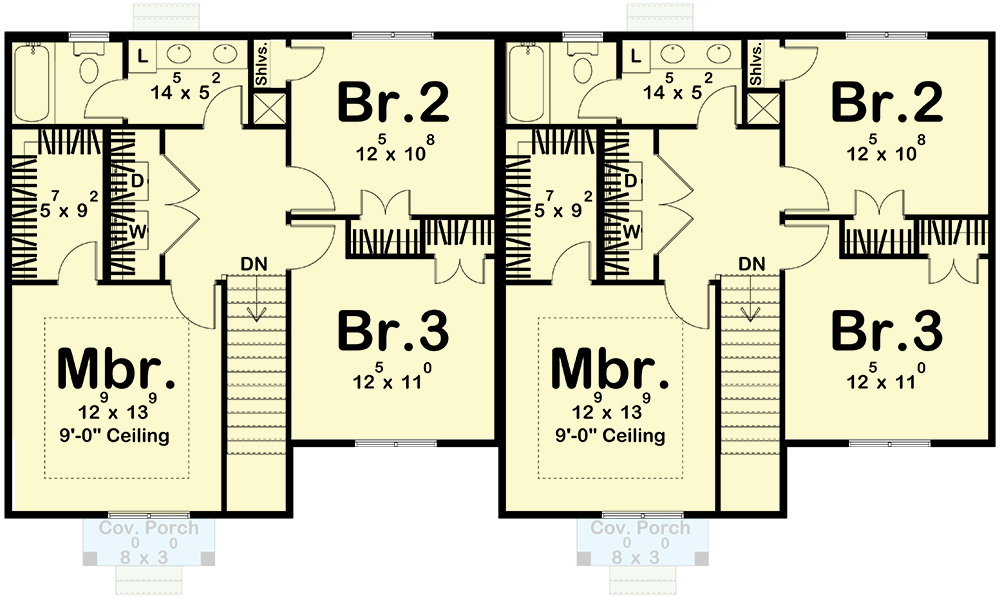

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,554 sq. ft.
  • 1st Floor: 1,016 sq. ft.
  • 2nd Floor: 1,538 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 32' 4"
  • Max ridge height: 27' 2"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Duplex House Plan with Side-By-Side 3-Bedroom Units - 1277 Sq Ft Each

  • 2,554

    Heated s.f.

  • 2

    Units

  • 60'

    Width

  • 32' 4"

    Depth

Duplex House Plan with Side-By-Side 3-Bedroom Units - 1277 Sq Ft Each

  • 2,554

    Heated s.f.

  • 2

    Units

  • 60'

    Width

  • 32' 4"

    Depth

Plan Details

Square Footage Breakdown

  • Total: 2,554 sq. ft.
  • 1st Floor: 1,016 sq. ft.
  • 2nd Floor: 1,538 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 32' 4"
  • Max ridge height: 27' 2"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12

    Main Level

    2nd Floor
