Plan 42649DB

Duplex House Plan with Two Owner's Suites

Heated S.F.
2,774
Units
2
Width
Depth

Floor Plan

Plan 42649DB

Main Level
Main Level
Optional Main Level Layout
Optional Main Level Layout

Plan 42649DB

M-F 9am-5pm EST |

1-203-761-8500

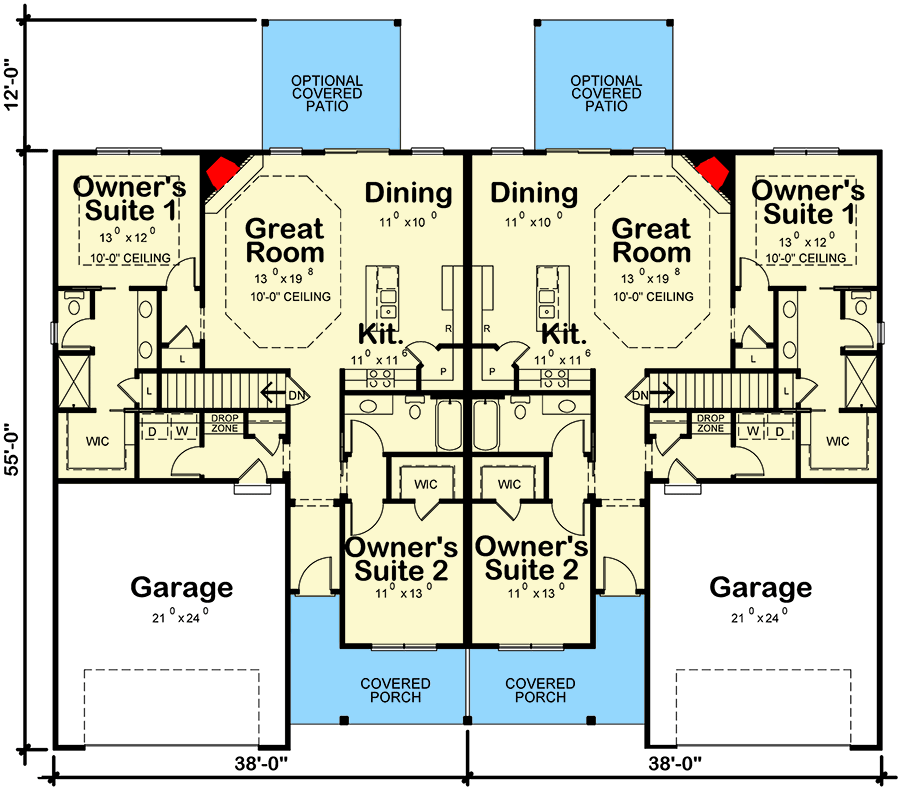

Main Level

Plan 42649DB: Duplex House Plan with Two Owner's Suites - Floor Plan - Main Level - Craftsman, New American, Ranch

Optional Main Level Layout

Plan 42649DB: Duplex House Plan with Two Owner's Suites - Floor Plan - Optional Main Level Layout - Craftsman, New American, Ranch

Plan Details

  • This duplex house plan gives you matching side-by-side 2 bed, 2 bath units. Each unit has 1,387 square feet of heated living space and a 2-car 527 square foot garage.
  • The owner's suites are in a split bedroom layout maximizing your privacy.
  • The center of each unit consists of an open concept layout with the great room, kitchen and dining area open to each other.
Unit A
Heated Area
1,387Sq. Ft.
1387 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
527 Sq. Ft.
Dimensions
38'width
55'depth
24'height
Unfinished Areas
527 Sq. Ft. Garage
Unit B
Heated Area
1,387Sq. Ft.
1387 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
527 Sq. Ft.
Dimensions
38'width
55'depth
24'height
Unfinished Areas
527 Sq. Ft. Garage

What's Included

  • General Notes

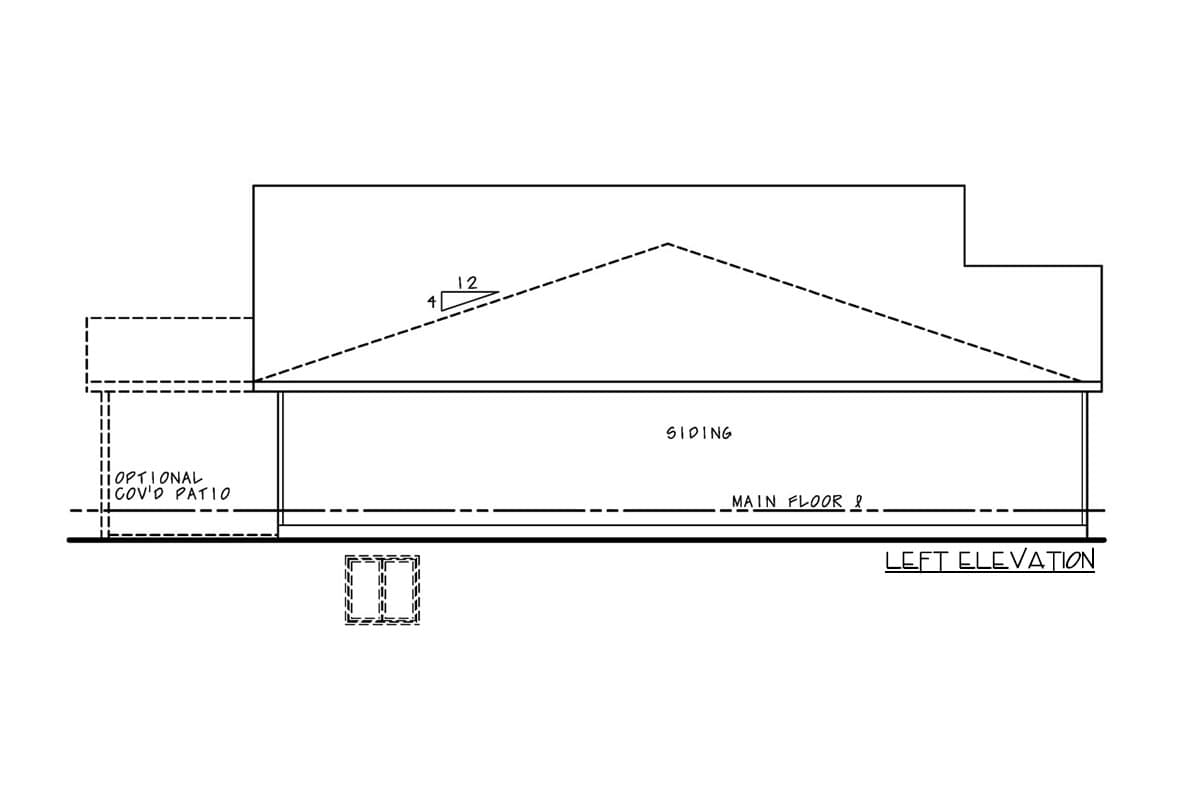

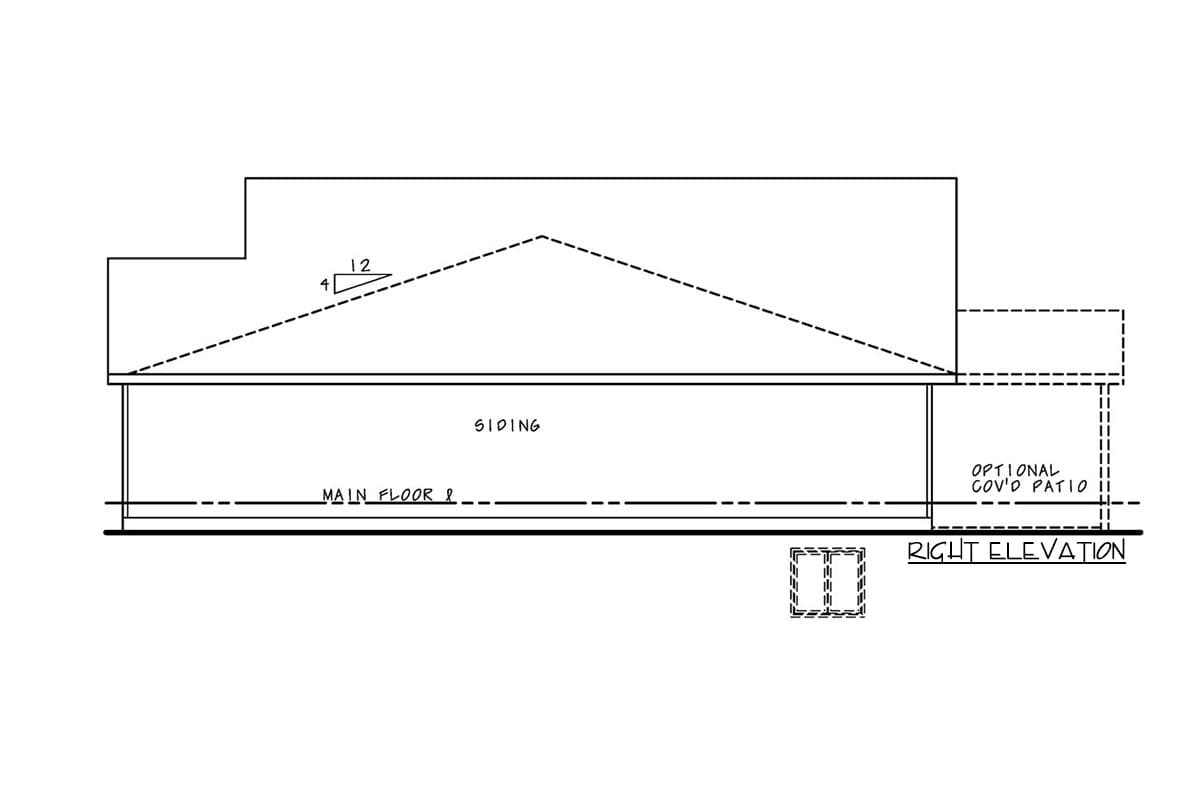

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,774 sq. ft.

1st Floor

1,387 sq. ft.

Porch, Front

276 sq. ft.

Porch, Rear

304 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

55' 0"

Max Ridge Height

24' 2"

Garage

Area

527 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,774 sq. ft.

1st Floor

1,387 sq. ft.

Porch, Front

276 sq. ft.

Porch, Rear

304 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 0"

Depth

55' 0"

Max Ridge Height

24' 2"

Garage

Area

527 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

8 on 12

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Master Suite - 1st Floor
