Duplex House Plan with Walkout Basement

Heated S.F.
2,898
Units
2
Width
Depth

Floor Plan

Plan 38010LB

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 38010LB

M-F 9am-5pm EST |

1-203-761-8500

Basement

Plan 38010LB: Duplex House Plan with Walkout Basement - Floor Plan - Basement

Main Level

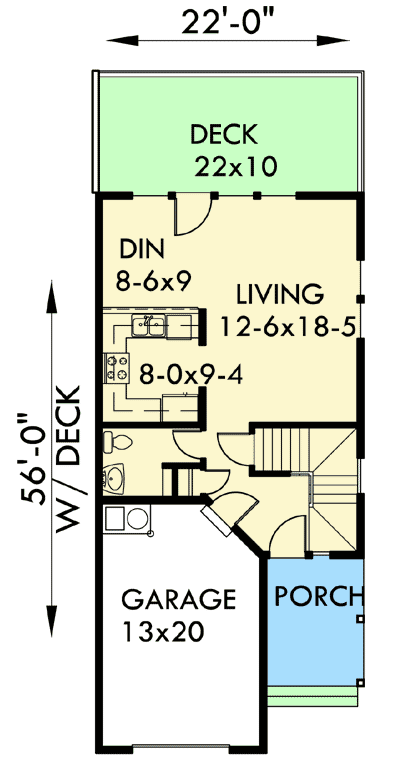

Plan 38010LB: Duplex House Plan with Walkout Basement - Floor Plan - Main Level

2nd Floor

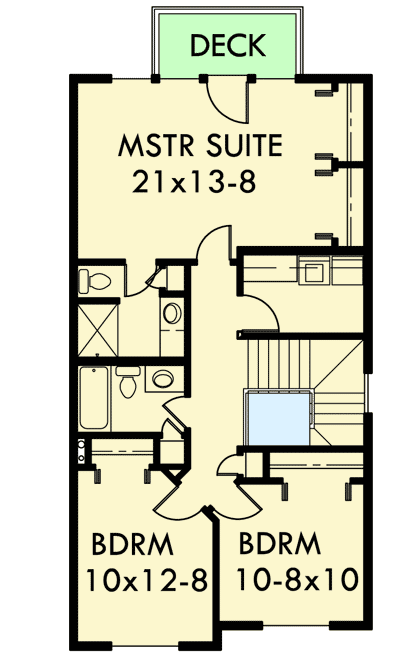

Plan 38010LB: Duplex House Plan with Walkout Basement - Floor Plan - 2nd Floor

Plan Details

  • This duplex house plan is designed for a sloping lot and gives each unit a basement with outdoor access. The basement is 573 square feet and is unfinished.
  • Each unit gives you 1,449 square feet of finished living space (609 square feet on the main floor and 840 square feet on the upper floor) and a 275 square foot garage.
  • The master bedroom has a deck overlooking the back. Laundry is conveniently located on the upper level where all your laundry is generated.
  • Each unit is 22'-wide making this great for a higher density neighborhood development.
Unit A
Heated Area
1,449Sq. Ft.
573 Sq. Ft. LL
609 Sq. Ft. 1st
840 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
275 Sq. Ft.
Dimensions
22'width
56'depth
30' 2"height
Unfinished Areas
275 Sq. Ft. Garage
Unit B
Heated Area
1,449Sq. Ft.
573 Sq. Ft. LL
609 Sq. Ft. 1st
840 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
275 Sq. Ft.
Dimensions
22'width
56'depth
30' 2"height
Unfinished Areas
275 Sq. Ft. Garage

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,898 sq. ft.

1st Floor

1,218 sq. ft.

2nd Floor

1,680 sq. ft.

Basement Unfinished

1,146 sq. ft.

Deck

440 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

56' 0"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

550 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Special Features

Master Suite - Sitting Area

Master Suite - Upstairs

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,898 sq. ft.

1st Floor

1,218 sq. ft.

2nd Floor

1,680 sq. ft.

Basement Unfinished

1,146 sq. ft.

Deck

440 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

56' 0"

Max Ridge Height

29' 10"

Garage

Type

Attached

Area

550 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Special Features

Master Suite - Sitting Area

Master Suite - Upstairs

Plan Collections

Photo Gallery
