Plan 60518ND

Duplex in Brick or Siding

Heated S.F.
1,704
Units
2
Width
Depth

Floor Plan

Plan 60518ND

Main Level
Main Level

Plan 60518ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

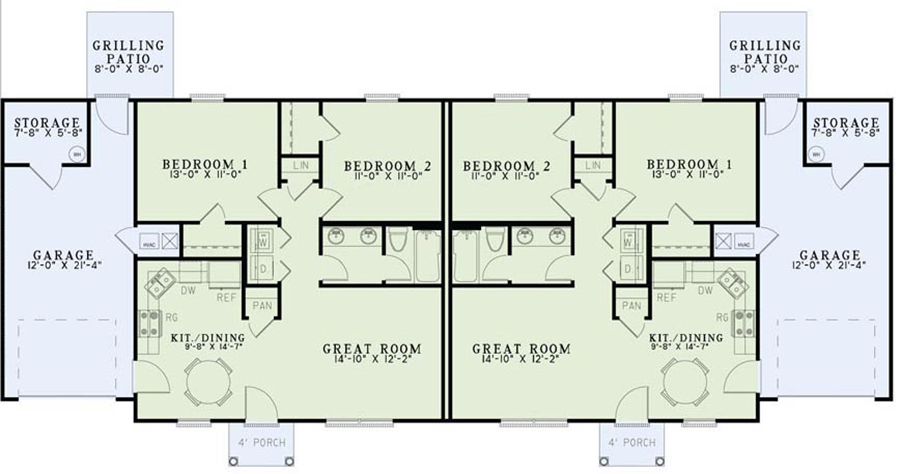

Plan 60518ND: Duplex in Brick or Siding - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This duplex house plan features a pair of matching 2-bedroom units each giving you 852 sq. ft. of living space.
  • Related Plan: For an alternate floor plan, see duplex house plan 60519ND.
Unit A & B
Heated Area
852Sq. Ft.
1704 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Cars
Attached
345 Sq. Ft.
Dimensions
41' 4"width
34'depth
18' 10"height
Unfinished Areas
345 Sq. Ft. Garage
24 Sq. Ft. Porch, Front
690 Sq. Ft. Attached

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area
