Plan 72965DA

Duplex Ranch Home Plan with Matching 3-Bed Units

Heated S.F.
3,134
Units
2
Width
Depth

Floor Plan

Plan 72965DA

Main Level
Main Level

Plan 72965DA

M-F 9am-5pm EST |

1-203-761-8500

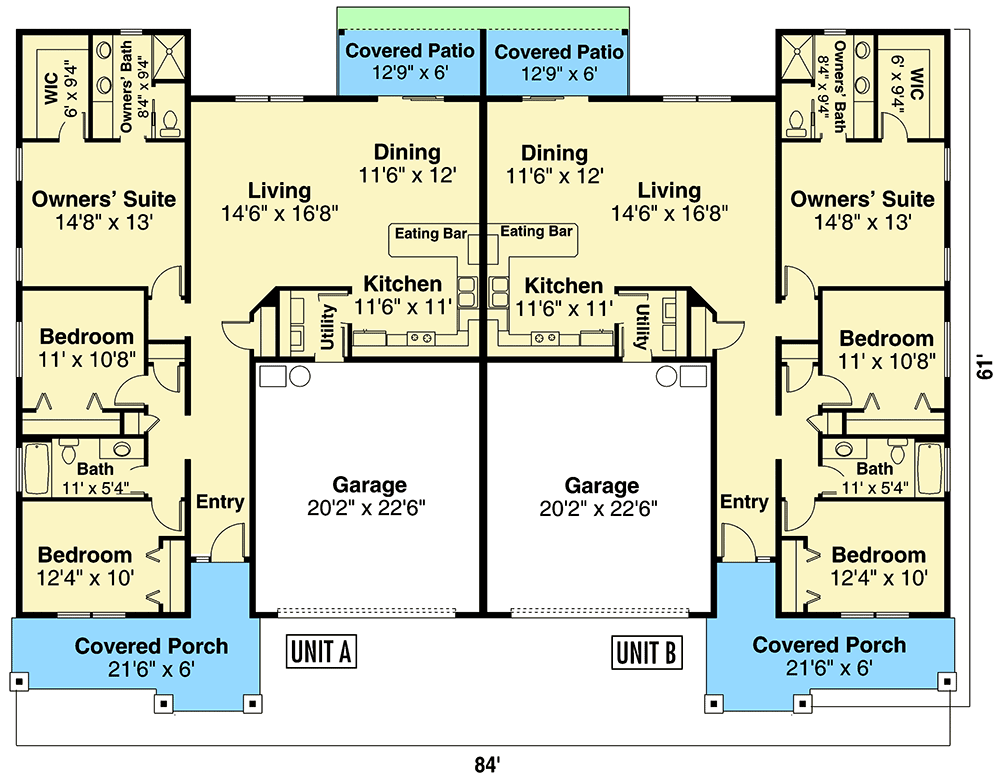

Main Level

Plan 72965DA: Duplex Ranch Home Plan with Matching 3-Bed Units - Floor Plan - Main Level - Ranch

Plan Details

  • This duplex ranch home plan gives you matching 3 bed, 2 bath units.
  • Each unit gives you 1,567 square feet of heated living space.
  • The C-shaped kitchen has an eating bar. There's also room for a dining room table.
  • Sliding doors open to your back covered patio.
  • All three bedrooms are lined up on the outside walls.

Unit A
Heated Area
0Sq. Ft.
1567 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
474 Sq. Ft.
Dimensions
42'width
61'depth
21' 10"height
Unfinished Areas
474 Sq. Ft. Garage
Unit B
Heated Area
1,567Sq. Ft.
1567 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
474 Sq. Ft.
Dimensions
42'width
61'depth
21' 10"height
Unfinished Areas
474 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

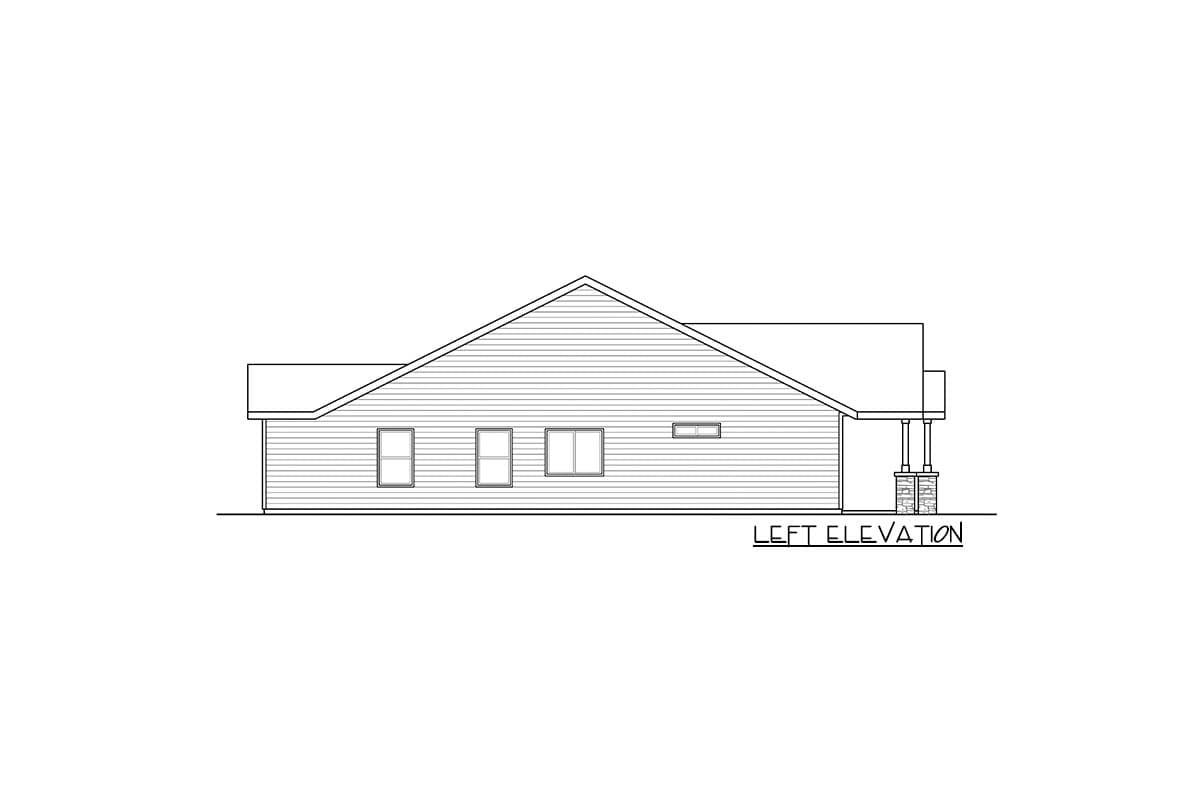

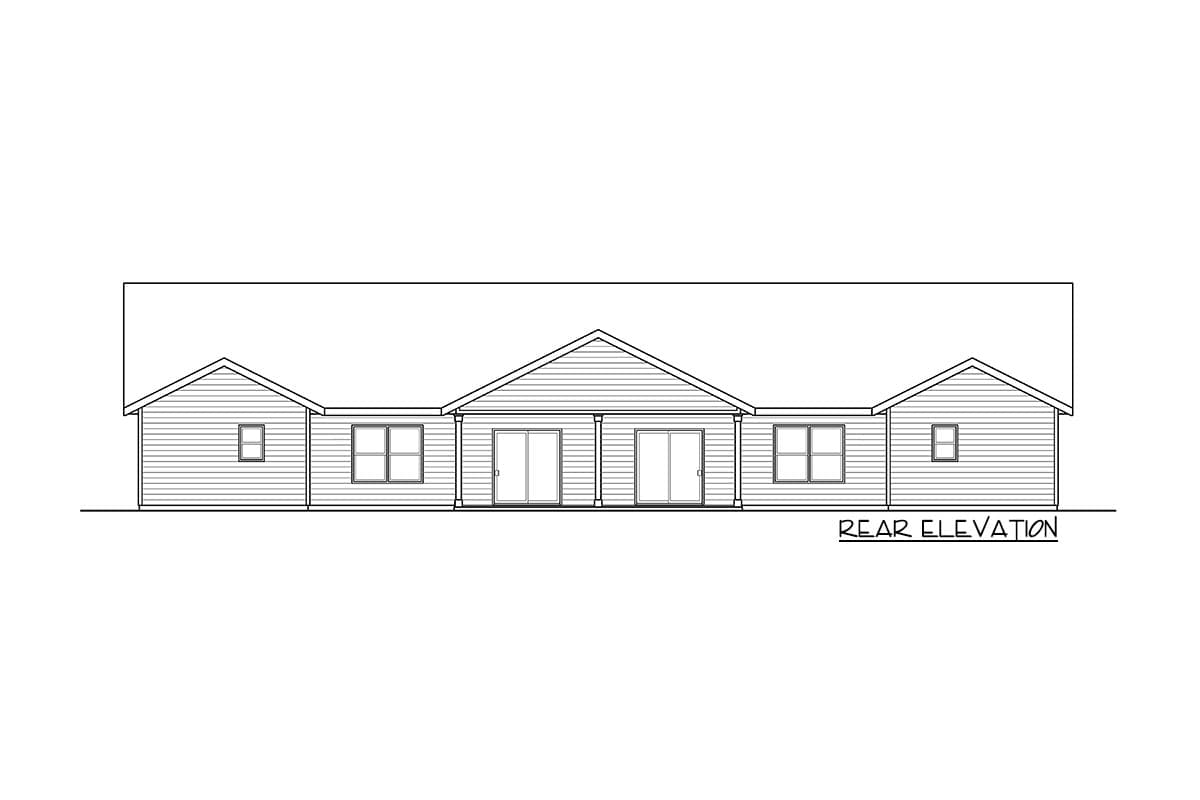

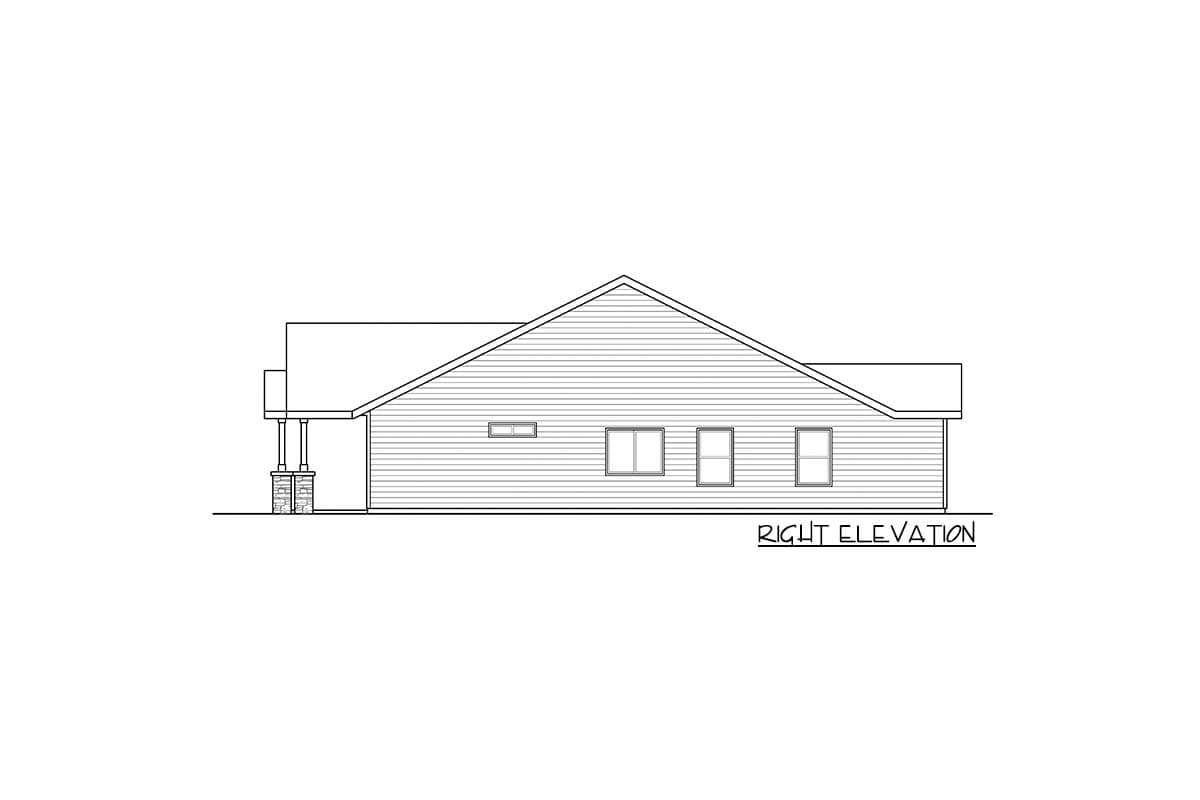

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,134 sq. ft.

1st Floor

3,134 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 0"

Depth

61' 0"

Max Ridge Height

21' 10"

Garage

Type

Attached

Area

948 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,134 sq. ft.

1st Floor

3,134 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

84' 0"

Depth

61' 0"

Max Ridge Height

21' 10"

Garage

Type

Attached

Area

948 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
