Plan 55091BR
Duplex with 2 Bed Units Under 1300 Square Feet
Heated S.F.
2,541
Units
2
Width
46'
Depth
34'
What's Included
Plan Details
  • This duplex house plan provides offset units in mirrored layouts. Locating the stairs on the adjoining walls helps create more private family living spaces in each unit.
  • Each two-story home features an attractively large kitchen, an open living/dining room layout and front and rear porches.
  • Upstairs, two bedrooms and a balcony provide comfortable retreats for all.
Unit A
1,258 Sq. Ft.
614 Sq. Ft. 1st Floor
644 Sq. Ft. 2nd Floor
2 Beds
1 Full Bath
1 Half Bath
23' w 34' d 26' h
Unit B
1,283 Sq. Ft.
622 Sq. Ft. 1st Floor
661 Sq. Ft. 2nd Floor
2 Beds
1 Full Bath
1 Half Bath
23' w 34' d 26' h
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex with 2 Bed Units Under 1300 Square Feet

  • 2,541

    Heated s.f.

  • 2

    Units

  • 46'

    Width

  • 34'

    Depth

Floor Plan

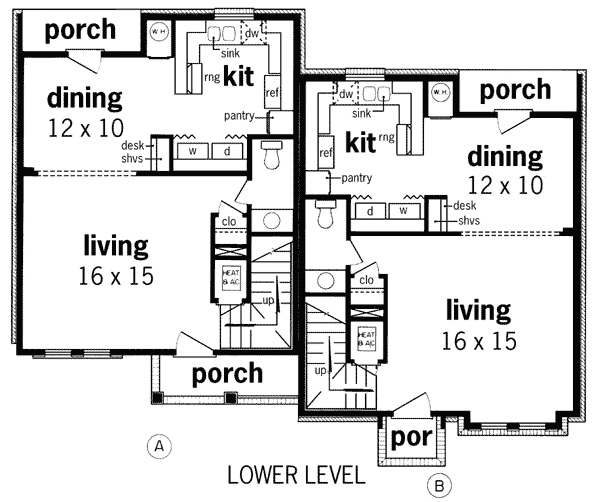

  • Main Level

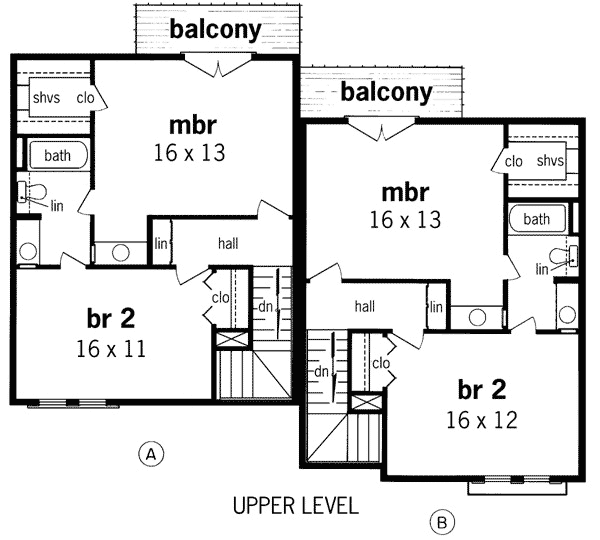

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,541 sq. ft.
  • 1st Floor: 1,236 sq. ft.
  • 2nd Floor: 1,305 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 34' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
