Plan 69383AM

Duplex with Asymmetrical 3 Bedroom Units Under 1500 Sq Ft

Heated S.F.
2,934
Units
2
Width
Depth

Floor Plan

Plan 69383AM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 69383AM

M-F 9am-5pm EST |

1-203-761-8500

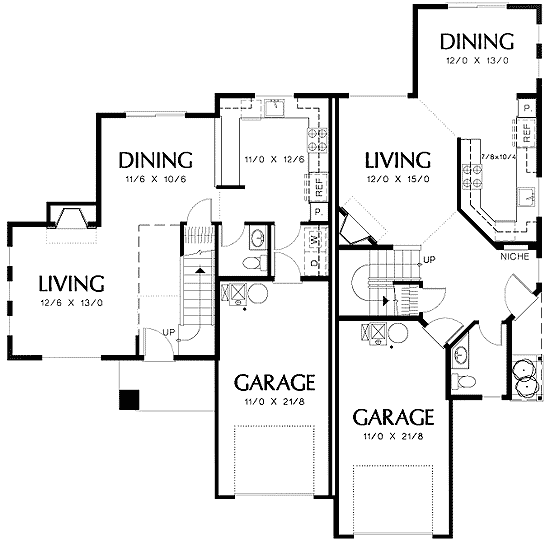

Main Level

Plan 69383AM: Duplex with Asymmetrical 3 Bedroom Units Under 1500 Sq Ft - Floor Plan - Main Level - Traditional

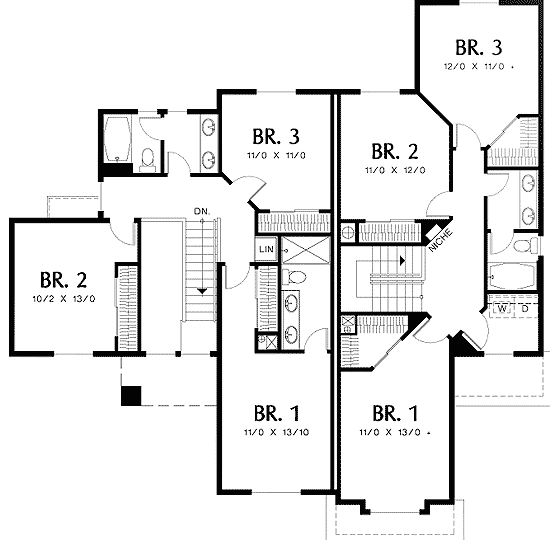

2nd Floor

Plan 69383AM: Duplex with Asymmetrical 3 Bedroom Units Under 1500 Sq Ft - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Which unit is your favorite? Each side of this delightful duplex offers great livability and charming extras for a comfortable lifestyle.
  • Unit A opens from a recessed entry to roomy living and dining rooms and a railed staircase to the upper level. The living room has a warm hearth; the dining room sports sliding glass doors to the rear yard. The U-shaped kitchen is tucked behind the one-car garage, near a half-bath and the laundry room. Three bedrooms upstairs include one with a private bath. Bedrooms 2 and 3 share a compartmented bath with dual sinks.
  • Unit B has an angled entry door opening to a spacious foyer. A coat closet, half-bath and garage access are found here. Living and dining areas are to the back. The living room has a corner hearth. Sliding glass doors in the dining room access the backyard. The upper level holds three bedrooms--two with walk-in closets--and a shared compartmented bath. The laundry room is also on the second floor in this unit.
Unit A
Heated Area
1,471Sq. Ft.
654 Sq. Ft. 1st
817 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
260 Sq. Ft.
Dimensions
27'width
54'depth
26' 8"height
Unfinished Areas
260 Sq. Ft. Garage
Unit B
Heated Area
1,463Sq. Ft.
651 Sq. Ft. 1st
812 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
255 Sq. Ft.
Dimensions
27'width
54'depth
26' 8"height
Unfinished Areas
255 Sq. Ft. Garage

What's Included

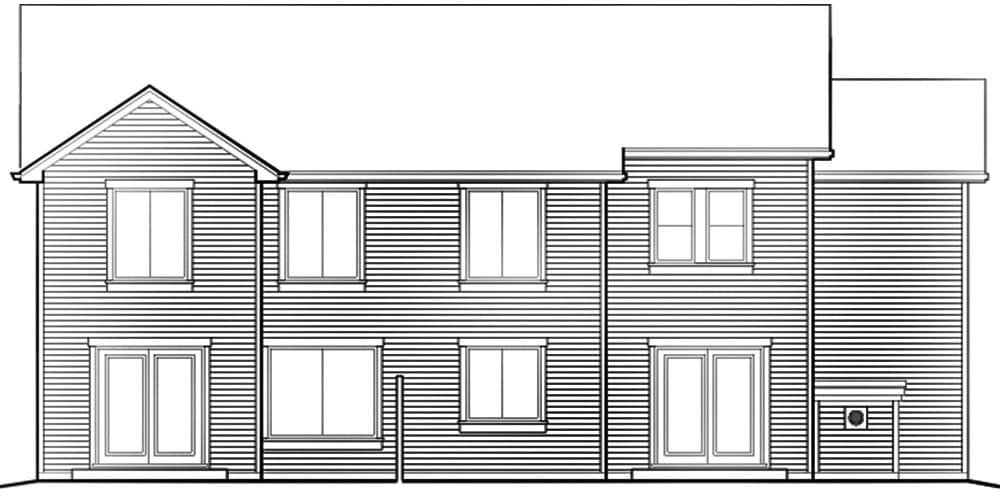

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,934 sq. ft.

1st Floor

1,305 sq. ft.

2nd Floor

1,629 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

54' 0"

Max Ridge Height

26' 8"

Garage

Type

Attached

Area

476 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,934 sq. ft.

1st Floor

1,305 sq. ft.

2nd Floor

1,629 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

54' 0"

Max Ridge Height

26' 8"

Garage

Type

Attached

Area

476 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Laundry - Upstairs

Master Suite - Upstairs
