Plan 2145DR

Duplex with Center Car Garage for Privacy - 926 Sq Ft Units

Heated S.F.
1,852
Units
2
Width
Depth

Floor Plan

Plan 2145DR

Main Level
Main Level

Plan 2145DR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

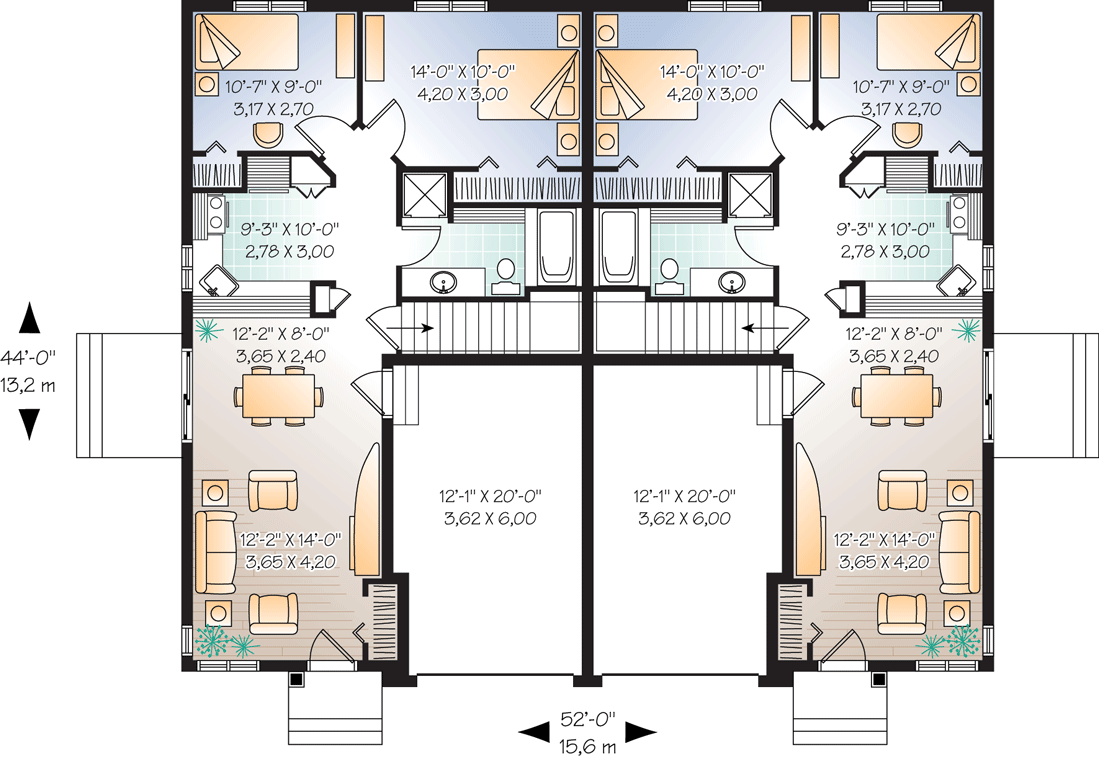

Plan 2145DR: Duplex with Center Car Garage for Privacy - 926 Sq Ft Units - Floor Plan - Main Level

Plan Details

  • This duplex house plan features a centralized garage arrangement which creates added privacy by separating the main living quarters from each 926 square foot 2 bed,1 bath unit.
  • The kitchen is open to the family room and the bedrooms are tucked at the rear of the design.
  • Covered front and side porches are nice touches.
  • Related Plan: For a reverse version, see duplex house plan 21574DR.
Unit A
Heated Area
926Sq. Ft.
926 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Cars
Attached
250 Sq. Ft.
Dimensions
26'width
44'depth
21' 4"height
Unfinished Areas
1000 Sq. Ft. Attached
250 Sq. Ft. Garage
Unit B
Heated Area
926Sq. Ft.
926 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Cars
Attached
250 Sq. Ft.
Dimensions
26'width
44'depth
21' 4"height
Unfinished Areas
250 Sq. Ft. Garage

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,852 sq. ft.

1st Floor

1,852 sq. ft.

Basement Unfinished

1,852 sq. ft.

Entry

18 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

44' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

250 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,852 sq. ft.

1st Floor

1,852 sq. ft.

Basement Unfinished

1,852 sq. ft.

Entry

18 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

44' 0"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

250 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
