Plan 89296AH
Duplex with Country Flair
Heated S.F.
3,126
Units
2
Width
93'
Depth
58'
Cars
5
What's Included
Plan Details
  • A careful combination of stone and shingle siding gives this duplex a country flair that will please today's buyer. With two identical units, this duplex has been designed to maximize living space for family living.
  • The kitchen features a breakfast bar that accesses the great room and adjacent dining area, and a pocket door that leads to the laundry just off the garage.
  • You can enjoy your morning coffee in the sunroom with its cathedral ceiling just off the dining area.
  • The master suite pleases with its step ceiling detail and walk-in closet while the second bedroom with direct access to the full bath, completes the plan.
  • Additional amenities include a tray ceiling in the dining area, a cathedral ceiling in the great room, an art niche and a window seat in the second bedroom.
Unit A
1,563 Sq. Ft.
1563 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
2 Vehicle
Attached
409 Sq. Ft.
46' 6" w 57' d 21' 6" h
Unit B
1,563 Sq. Ft.
1563 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
3 Vehicle
Attached
613 Sq. Ft.
43' 6" w 58' d 21' 6" h
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex with Country Flair

  • 3,126

    Heated s.f.

  • 2

    Units

  • 93'

    Width

  • 58'

    Depth

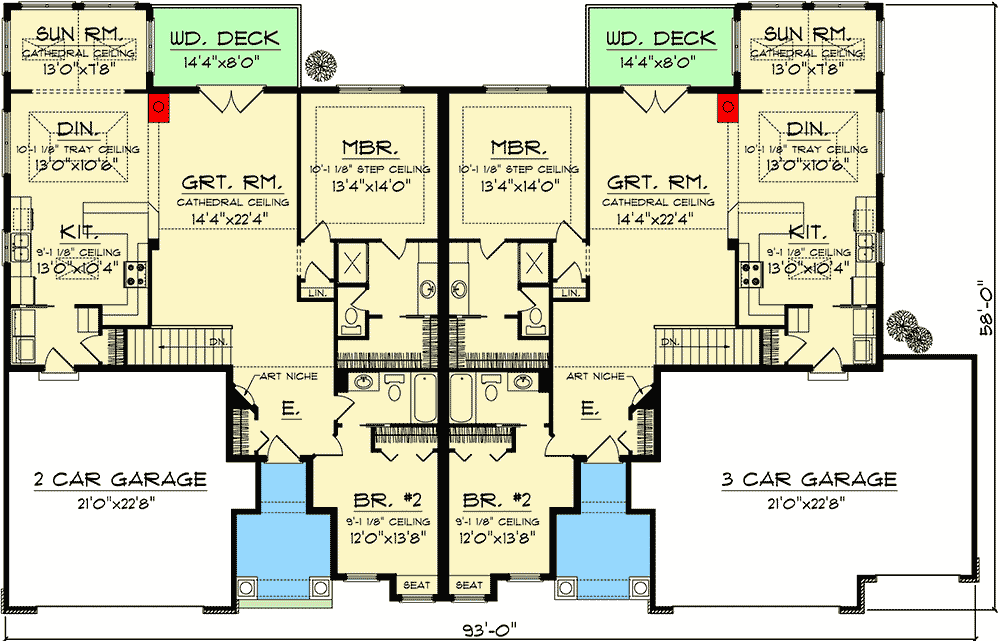

Floor Plan
