Plan 8162LB

Duplex with Drive-under Garage

Heated S.F.
1,886
Units
2
Width
Depth

Floor Plan

Plan 8162LB

Main Level
Main Level
2nd Floor
2nd Floor
Ground Level
Ground Level

Plan 8162LB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 8162LB: Duplex with Drive-under Garage - Floor Plan - Main Level

2nd Floor

Plan 8162LB: Duplex with Drive-under Garage - Floor Plan - 2nd Floor

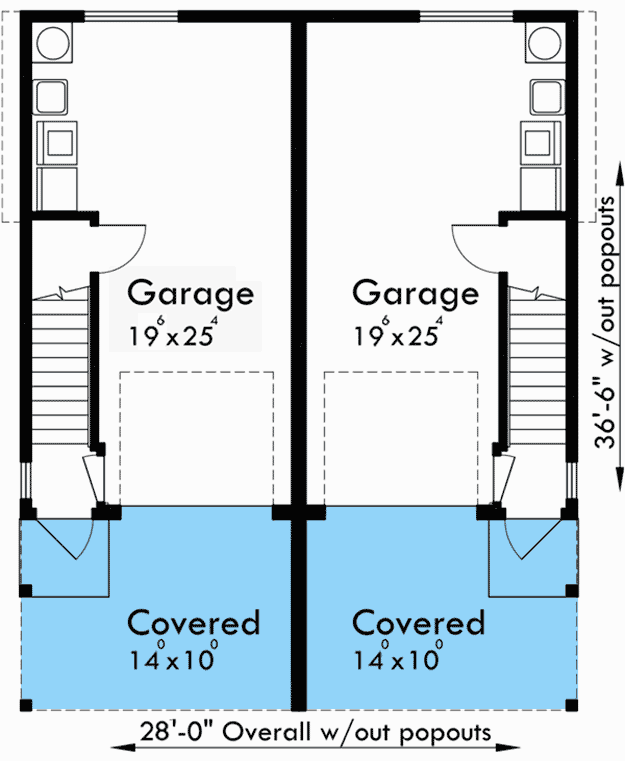

Ground Level

Plan 8162LB: Duplex with Drive-under Garage - Floor Plan - Ground Level

Plan Details

  • This duplex house plan gives you matching units with a drive-under garage.
  • Each unit gives you 438 square feet on the main floor and 488 square feet on the second floor, with 2 beds and 2 baths.
Unit A
Heated Area
943Sq. Ft.
17 Sq. Ft. LL
438 Sq. Ft. 1st
488 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Drive Under
330 Sq. Ft.
Dimensions
14'width
36' 6"depth
31' 9"height
Unfinished Areas
330 Sq. Ft. Garage
Unit B
Heated Area
943Sq. Ft.
17 Sq. Ft. LL
438 Sq. Ft. 1st
488 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Drive Under
330 Sq. Ft.
Dimensions
14'width
36' 6"depth
31' 9"height
Unfinished Areas
330 Sq. Ft. Garage

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,886 sq. ft.

Lower Level

34 sq. ft.

1st Floor

876 sq. ft.

2nd Floor

976 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

36' 6"

Max Ridge Height

31' 9"

Garage

Type

Drive Under

Area

660 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,886 sq. ft.

Lower Level

34 sq. ft.

1st Floor

876 sq. ft.

2nd Floor

976 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

36' 6"

Max Ridge Height

31' 9"

Garage

Type

Drive Under

Area

660 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Master Suite - Upstairs
