Plan 69384AM

Duplex with French Doors and Fireplaces - 3 Bedroom 1908 Sq Ft Units

Heated S.F.
3,816
Units
2
Width
Depth

Floor Plan

Plan 69384AM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 69384AM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

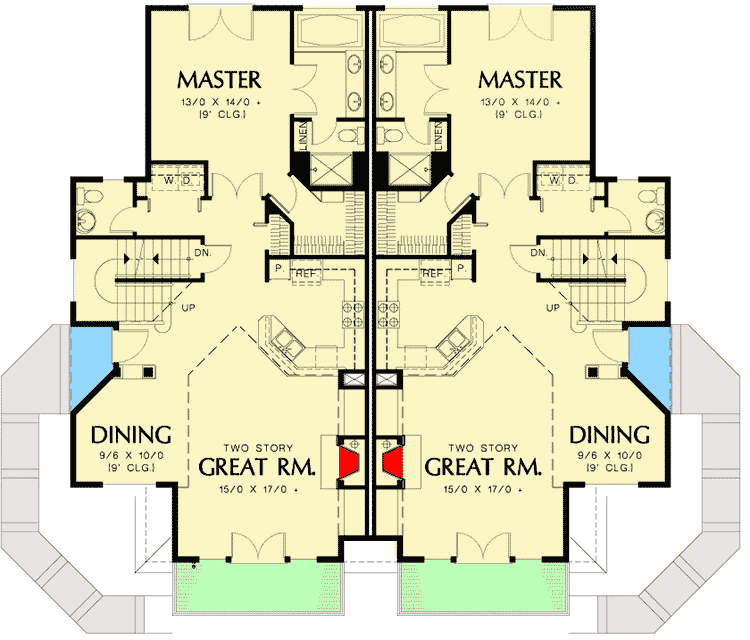

Plan 69384AM: Duplex with French Doors and Fireplaces - 3 Bedroom 1908 Sq Ft Units - Floor Plan - Main Level - Traditional

2nd Floor

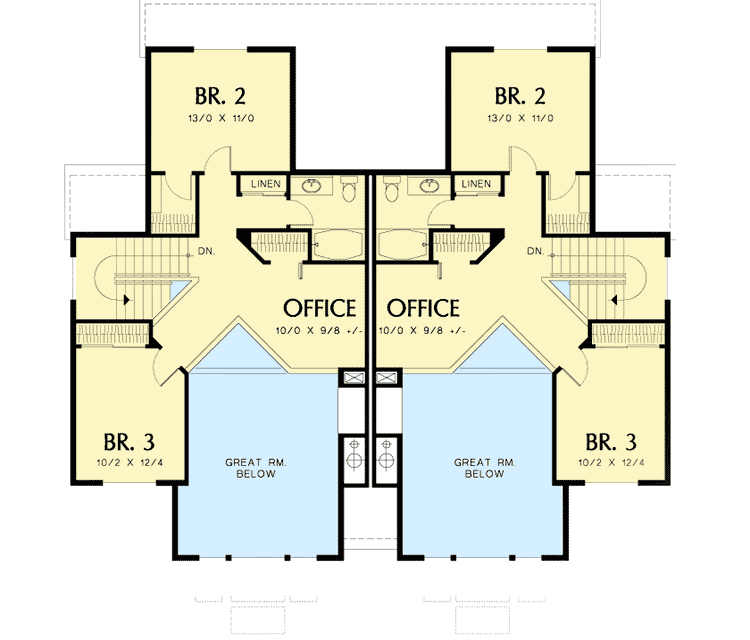

Plan 69384AM: Duplex with French Doors and Fireplaces - 3 Bedroom 1908 Sq Ft Units - Floor Plan - 2nd Floor - Traditional

Plan Details

  • What could be better than owning a luxury dwelling? Owning two luxury dwellings! These side-by-side homes incorporate every convenience, every amenity.
  • Voluminous great rooms soar two stories to the roofline, eliciting compliments from all who gather there. That's not all. Each great room features a fireplace, a floor-to-ceiling wall of windows, and French doors that open to a balcony. Adjacent spaces house the dining room and an efficient U-shaped kitchen with a built-in pantry. The sink peninsula is open to the great room and includes a sit-down snack counter.
  • Master suites with walk-in closets are housed on the main level of each dwelling. Double doors lead into the bedroom; French doors open to the outdoors. The adjoining bath is equipped with a double-sink vanity, whirlpool tub, and a privacy compartment for the toilet and shower. Laundry facilities are beside the master suite.
  • The top floor is occupied by two generously sized bedrooms with large closets, a full bath, and a loft area that's ideal for a home office. Half walls in the hall and office overlook the great room below.
Unit A
Heated Area
1,908Sq. Ft.
1248 Sq. Ft. 1st
660 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
496 Sq. Ft.
Dimensions
28'width
52'depth
37'height
Unfinished Areas
496 Sq. Ft. Garage
Unit B
Heated Area
1,908Sq. Ft.
1248 Sq. Ft. 1st
660 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
496 Sq. Ft.
Dimensions
28'width
52'depth
37'height
Unfinished Areas
496 Sq. Ft. Garage

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan
