Plan 59366ND
Duplex with Private 2-Bed Units Under 900 Square Feet Each
Heated S.F.
1,636
Units
2
Width
54' 6"
Depth
38' 4"
What's Included
Plan Details
  • This two bedroom duplex plan allows neighbors privacy as well as a shared rear porch for afternoon conversation.
  • Each 2 bed, 1 bath unit gives you 818 square feet of heated living.
  • An enormous living room opens to the kitchen and gives you many options for furniture arrangement.
  • A handy storage room located on the rear porch is available for a clutter free backside.
  • Related Plans: Get alternate versions with duplex house plan 59370D (2-bed units) and 59365ND (3-bed units).
Unit A
818 Sq. Ft.
818 Sq. Ft. 1st Floor
2 Beds
1 Full Bath
None
27' 3" w 38' 4" d
Unit B
818 Sq. Ft.
818 Sq. Ft. 1st Floor
2 Beds
1 Full Bath
None
27' 3" w 38' 4" d 18' 4" h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex with Private 2-Bed Units Under 900 Square Feet Each

  • 1,636

    Heated s.f.

  • 2

    Units

  • 54' 6"

    Width

  • 38' 4"

    Depth

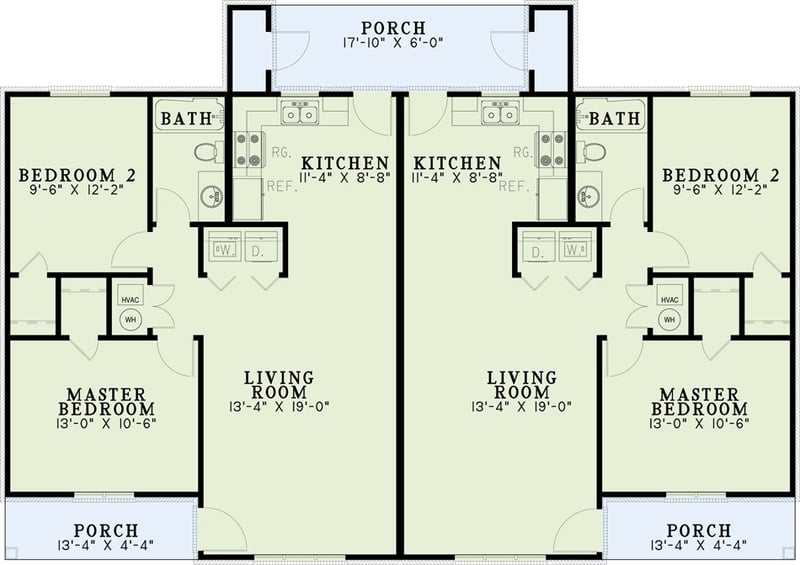

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,636 sq. ft.
  • 1st Floor: 1,636 sq. ft.

Dimensions

  • Width: 54' 6"
  • Depth: 38' 4"
  • Max ridge height: 18' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Duplex with Private 2-Bed Units Under 900 Square Feet Each

  • 1,636

    Heated s.f.

  • 2

    Units

  • 54' 6"

    Width

  • 38' 4"

    Depth

Duplex with Private 2-Bed Units Under 900 Square Feet Each

  • 1,636

    Heated s.f.

  • 2

    Units

  • 54' 6"

    Width

  • 38' 4"

    Depth

Plan Details

Square Footage Breakdown

  • Total: 1,636 sq. ft.
  • 1st Floor: 1,636 sq. ft.

Dimensions

  • Width: 54' 6"
  • Depth: 38' 4"
  • Max ridge height: 18' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
