Plan 59368ND

Duplex with Single-Family Appearance

Heated S.F.
2,010
Units
2
Width
Depth

Floor Plan

Plan 59368ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59368ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

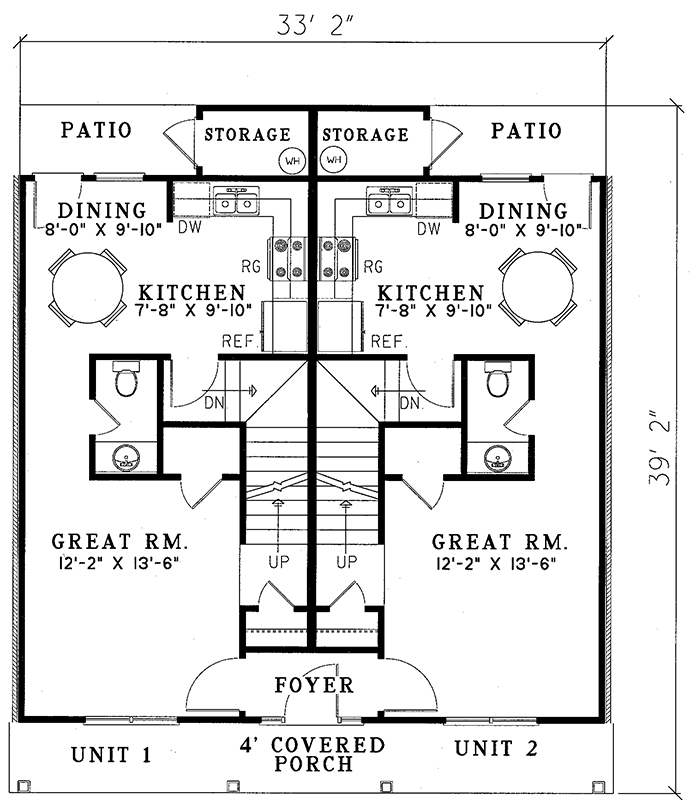

Plan 59368ND: Duplex with Single-Family Appearance - Floor Plan - Main Level

2nd Floor

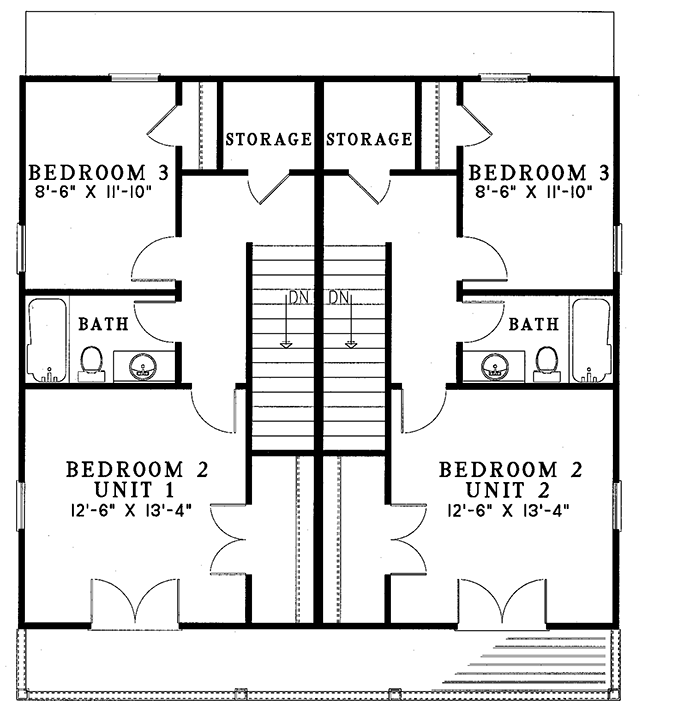

Plan 59368ND: Duplex with Single-Family Appearance - Floor Plan - 2nd Floor

Plan Details

  • The designer has created a southern traditional duplex plan with the appearance of a two story single family home plan.
  • The front door leads to a foyer concealing two separate living quarters. Each living quarter has a great room with large closet that can be used as a computer nook; a spacious kitchen with dining area and a rear access to a patio with storage room.
  • Travel upstairs and find a full bath, large storage closet and two bedrooms - one a walk-in closet and French doors to the balcony.
  • Related Plans: See these related house plans: 59366ND and 59370ND.
Unit A
Heated Area
1,005Sq. Ft.
516 Sq. Ft. 1st
489 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Dimensions
16' 7"width
39' 2"depth
38'height
Unfinished Areas
132 Sq. Ft. Porch, Combined
Unit B
Heated Area
1,005Sq. Ft.
516 Sq. Ft. 1st
489 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Dimensions
16' 7"width
39' 2"depth
38'height
Unfinished Areas
136 Sq. Ft. Porch, Combined

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,010 sq. ft.

1st Floor

1,032 sq. ft.

2nd Floor

978 sq. ft.

Porch, Front

264 sq. ft.

Storage

104 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 2"

Depth

39' 2"

Max Ridge Height

38' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Special Features

Breakfast Nook

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,010 sq. ft.

1st Floor

1,032 sq. ft.

2nd Floor

978 sq. ft.

Porch, Front

264 sq. ft.

Storage

104 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 2"

Depth

39' 2"

Max Ridge Height

38' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Special Features

Breakfast Nook

Master Suite - Upstairs
