Plan 8127LB

Duplex with Sky Decks

Heated S.F.
3,488
Units
2
Width
Depth

Floor Plan

Plan 8127LB

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 8127LB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 8127LB: Duplex with Sky Decks - Floor Plan - Main Level

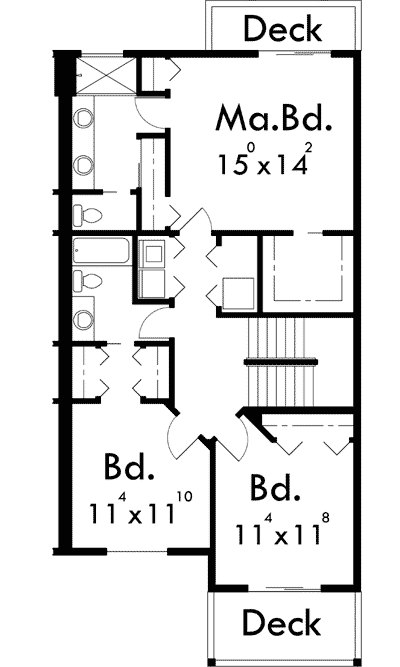

2nd Floor

Plan 8127LB: Duplex with Sky Decks - Floor Plan - 2nd Floor

3rd Floor

Plan 8127LB: Duplex with Sky Decks - Floor Plan - 3rd Floor

Plan Details

  • This attractive duplex house plan comes with lots of outdoor spaces including two decks on the bedroom floor and an exciting roof deck that gives you terrific views.
  • On the ground level, the two car garage opens to the eating, cooking and living areas with a wide open floor plan layout.
  • Sliding glass doors get you outside to the patio and back yard.
  • The next level up is for the sleeping area and laundry closet.
  • The large master suite features a walk-in closet, private bathroom and private deck.
Unit A
Heated Area
1,744Sq. Ft.
723 Sq. Ft. 1st
1021 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
460 Sq. Ft.
Dimensions
24'width
50'depth
32' 9"height
Unfinished Areas
460 Sq. Ft. Garage
Unit B
Heated Area
1,744Sq. Ft.
723 Sq. Ft. 1st
1021 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
460 Sq. Ft.
Dimensions
24'width
50'depth
32' 9"height
Unfinished Areas
460 Sq. Ft. Garage

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,488 sq. ft.

1st Floor

1,446 sq. ft.

2nd Floor

2,042 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

48' 0"

Depth

50' 0"

Max Ridge Height

32' 9"

Garage

Type

Attached

Area

920 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Stick

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,488 sq. ft.

1st Floor

1,446 sq. ft.

2nd Floor

2,042 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

48' 0"

Depth

50' 0"

Max Ridge Height

32' 9"

Garage

Type

Attached

Area

920 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Stick

Special Features

Master Suite - Upstairs
