Easy Living

Plan 81016W

  • 1,933

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • This traditional Cape Cod cottage is updated with an open floor plan that invites easy living.
  • True to tradition, the formal living room sits to the front of the plan, just off the foyer.
  • Comfortable living will surely be centered around the fireplace in the family room with the conjoining spacious kitchen.
  • Enjoy casual dining at the snack bar or sit down for a meal in the formal dining room with a bay window.
  • A study on the main level would also make a nice guest room thanks to the full hall bath nearby.
  • Up the central stairs, you will find the master bedroom with a private bath.

All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

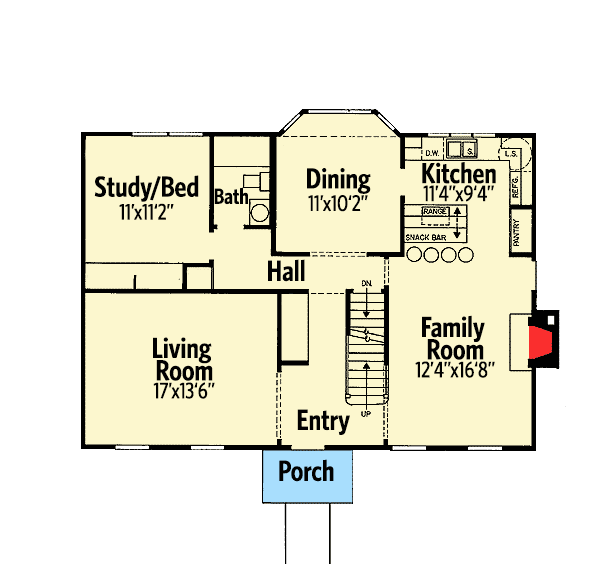

Easy Living - 81016W floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

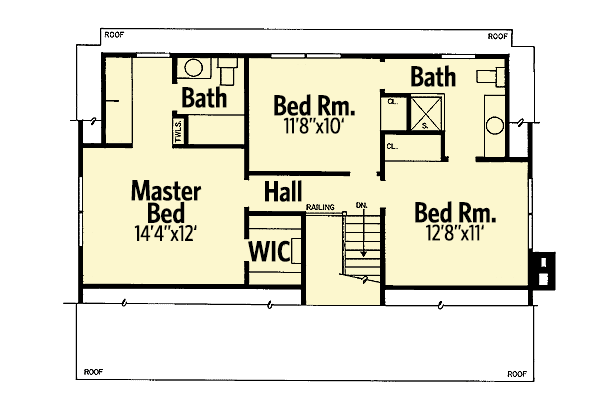

Easy Living - 81016W floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,933 sq. ft.
  • 1st Floor: 1,137 sq. ft.
  • 2nd Floor: 796 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 40' 0"
  • Depth: 28' 0"
  • Max ridge height: 22' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Easy Living

  • 1,933

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $800
  • PDF - Single-Build $800
  • 8 Sets $1,000
  • View all purchase option online

About This Plan

  • This traditional Cape Cod cottage is updated with an open floor plan that invites easy living.
  • True to tradition, the formal living room sits to the front of the plan, just off the foyer.
  • Comfortable living will surely be centered around the fireplace in the family room with the conjoining spacious kitchen.
  • Enjoy casual dining at the snack bar or sit down for a meal in the formal dining room with a bay window.
  • A study on the main level would also make a nice guest room thanks to the full hall bath nearby.
  • Up the central stairs, you will find the master bedroom with a private bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,933 sq. ft.
  • 1st Floor: 1,137 sq. ft.
  • 2nd Floor: 796 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 40' 0"
  • Depth: 28' 0"
  • Max ridge height: 22' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 81016W
View this and more for this plan by visiting www.architechtecturaldesigns.com/81016W
|
