Plan 5108MM
Easy to Build Split Bedroom Plan - 1488 Sq Ft
Heated S.F.
1,488
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This house plan features a popular split bedroom layout, with two or three bath options. The optional third bath space may be used as a computer space/office, or nursery.
  • Single eating area allows for central gathering place for family and friends.
  • His and her walk-in closets provide great use of space.
  • Covered porch and patio offer room for informal gatherings.
  • Basement level provides additional space for family needs.
  • Foundation options: slab or basement. Specify when ordering.
  • Related Plans: See these related house plans in siding - 51115MM (1,200 sq. ft.), 51129MM (1,310 sq. ft.), 5107MM, 5104MM - and these in brick - 5105MM and 5106MM.
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Easy to Build Split Bedroom Plan - 1488 Sq Ft

  • 1,488

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

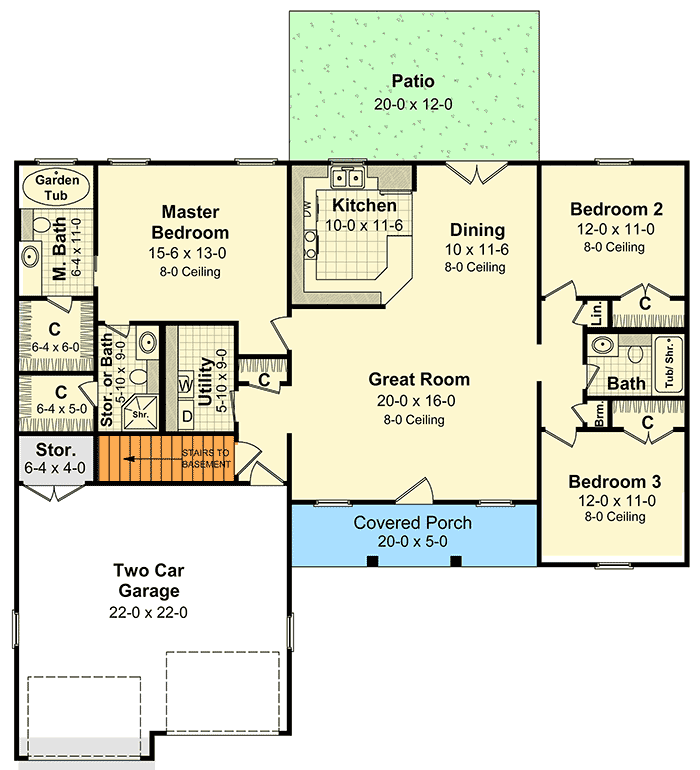

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,488 sq. ft.
  • 1st Floor: 1,488 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 48' 0"
  • Max ridge height: 18' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 466 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
