Plan 6726MG
Economical Cottage
Heated S.F.
884
Beds
2
Baths
1
Stories
1
What's Included
Plan Details
  • This cute vacation or retirement home is very modest on size, yet contains all the necessary amenities.
  • A non-basement design, it will be very economical to construct.
  • A handy laundry and mud room combination is found at the side entrance. Close by is the main bathroom.
  • The livingroom, dining and kitchen all look out on the covered deck, and when combined in this manner, provide a very spacious atmosphere to this low area home.
What's Included
  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

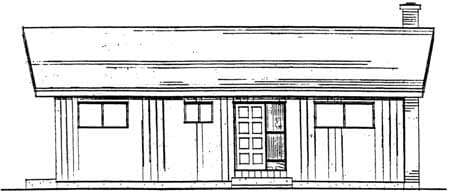

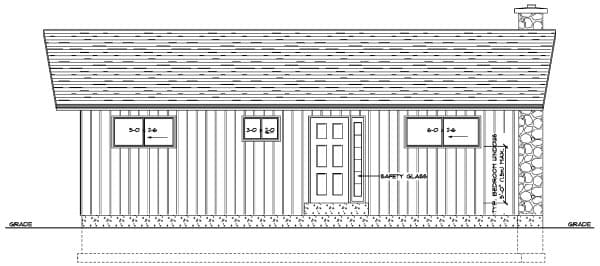

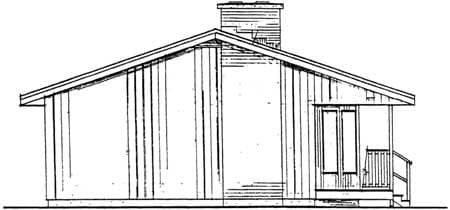

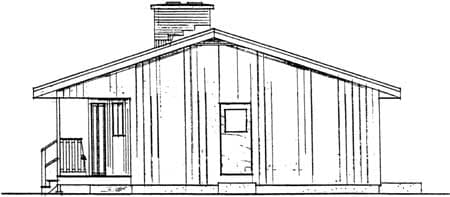

  • Elevations
  • Cross section
  • Wall details, etc.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Economical Cottage

  • 884

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 884 sq. ft.
  • 1st Floor: 884 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 31' 0"
  • Max ridge height: 16' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Economical Cottage

  • 884

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Economical Cottage

  • 884

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Plan Details

Square Footage Breakdown

  • Total: 884 sq. ft.
  • 1st Floor: 884 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 31' 0"
  • Max ridge height: 16' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

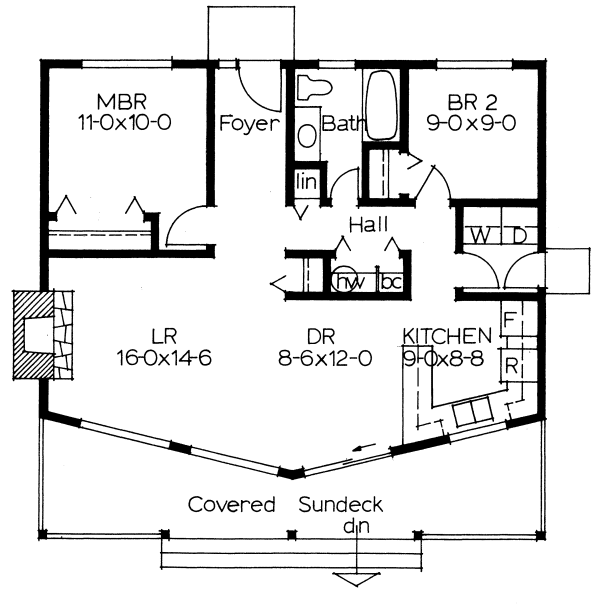

    Main Level
