Economical Ranch Home Plan
Heated S.F.
1,244
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This small ranch-style home plan is economical to build and easy to maintain, and could easily be adapted for wheelchair accessibility. As such, it's equally well suited to young families buying their first home, or empty nesters eager to reduce their maintenance work.
  • From the street, the plan pleasantly symmetrical its multipaned windows, set under the low-profile right gable, echo the wider gable on the left and its gridded garage door. The recessed entry porch opens into a vaulted entry, brightened by a sidelight.
  • The entry's vaulted ceiling rises higher as you proceed forward, reaching its apex at the far edge of the vaulted kitchen, then sloping down toward the living/dining room's richly glassed rear wall. Sliding doors in the dining room open out onto a patio which could be screened.
  • An eating bar fronts the peninsular counter that bounds the kitchen. The laundry appliances are also conveniently close, hidden behind folding doors, and a pantry adds to the already generous cupboard space.
  • In the owners' suite, a pocket door links the sleeping area to the bathroom and walk-in closet. Secondary bedrooms share the main bathroom, and each has a wide rectangular window bay that could be outfitted with a window seat.
  • The roof has a 5 on 12 pitch.
What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

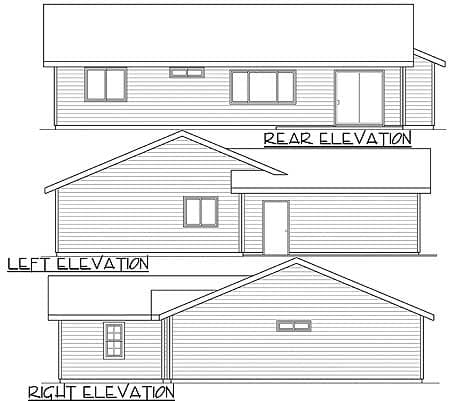

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan

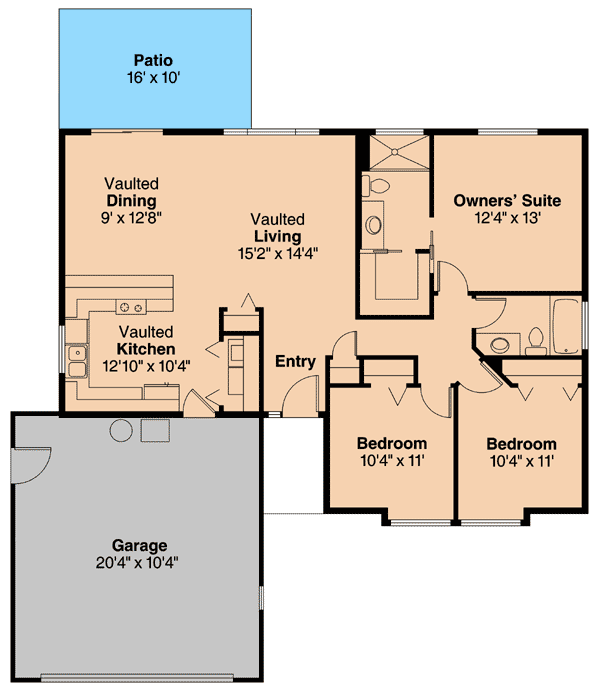

Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
