Plan 57149HA

Efficient Ranch Home Plan For A Slender Lot

Heated S.F.
1,171
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 57149HA

Main Level
Main Level

Plan 57149HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

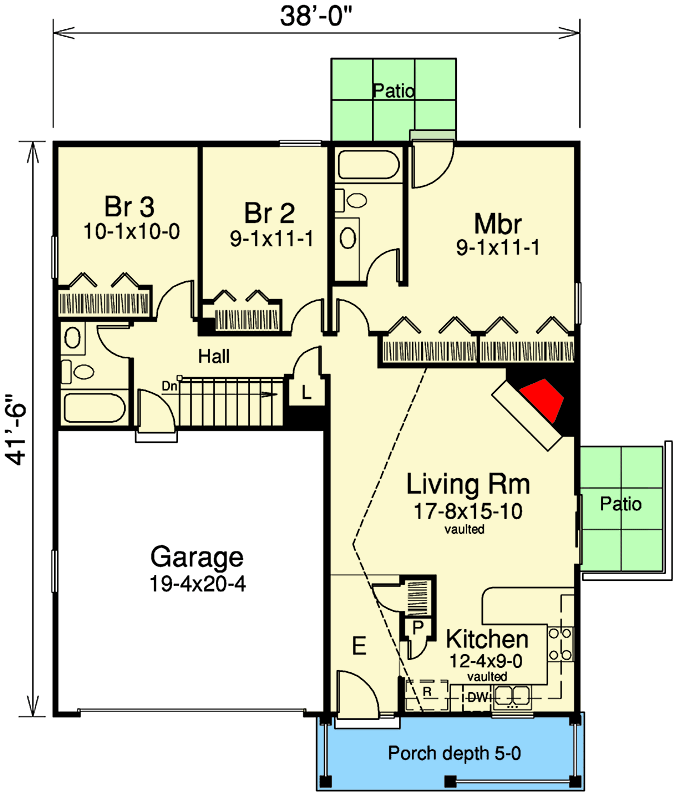

Plan 57149HA: Efficient Ranch Home Plan For A Slender Lot - Floor Plan - Main Level - Ranch

Plan Details

  • This home is perfect for a starter home or second home on a lake or countryside setting.
  • The vaulted living room offers many exciting features including a corner fireplace and dining area with sliding doors to the side patio.
  • A built-in pantry, vaulted ceiling and breakfast bar are just a few of the amenities of the delightful kitchen.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,171 sq. ft.

1st Floor

1,171 sq. ft.

Basement Unfinished

1,171 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

38' 0"

Depth

46' 6"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

393 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

1,171 sq. ft.

1st Floor

1,171 sq. ft.

Basement Unfinished

1,171 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

38' 0"

Depth

46' 6"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

393 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Lake House Plans
