Plan 31841DN
Elaborate Florida House Plan
Heated S.F.
6,005
Beds
4
Baths
4.5+
Stories
2
Cars
3
What's Included
Plan Details

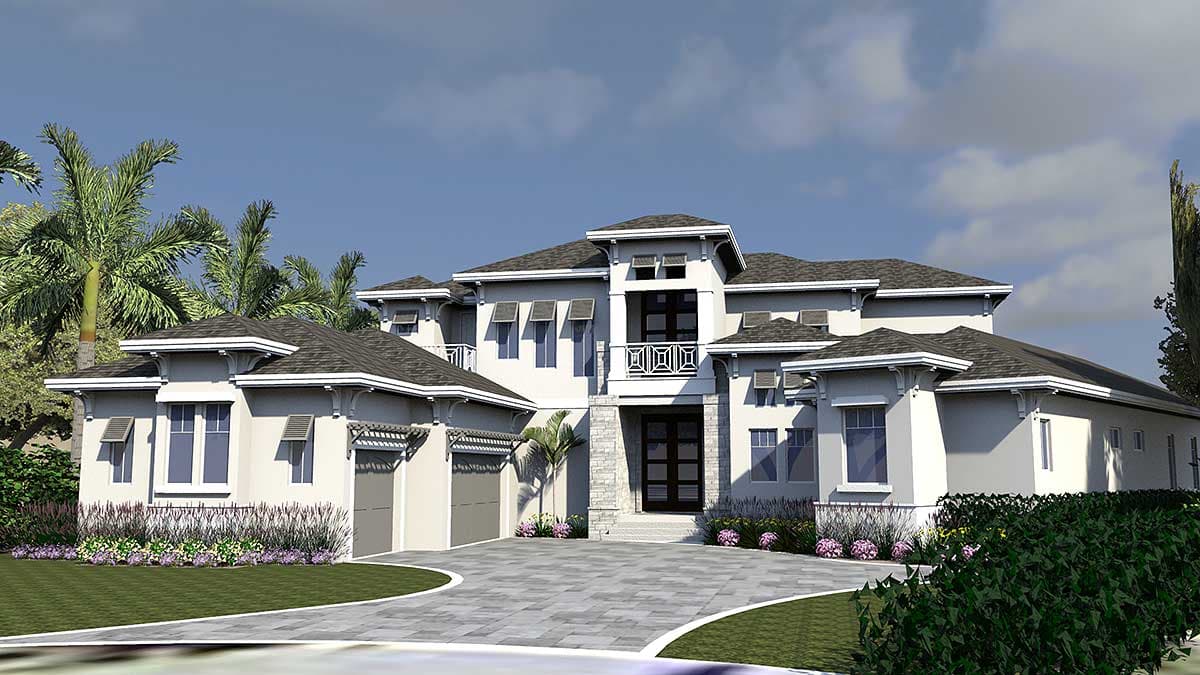

  • Unique angles, intricate roof lines and decorative shutters all combine to give you a one-of-a-kind Florida house plan.

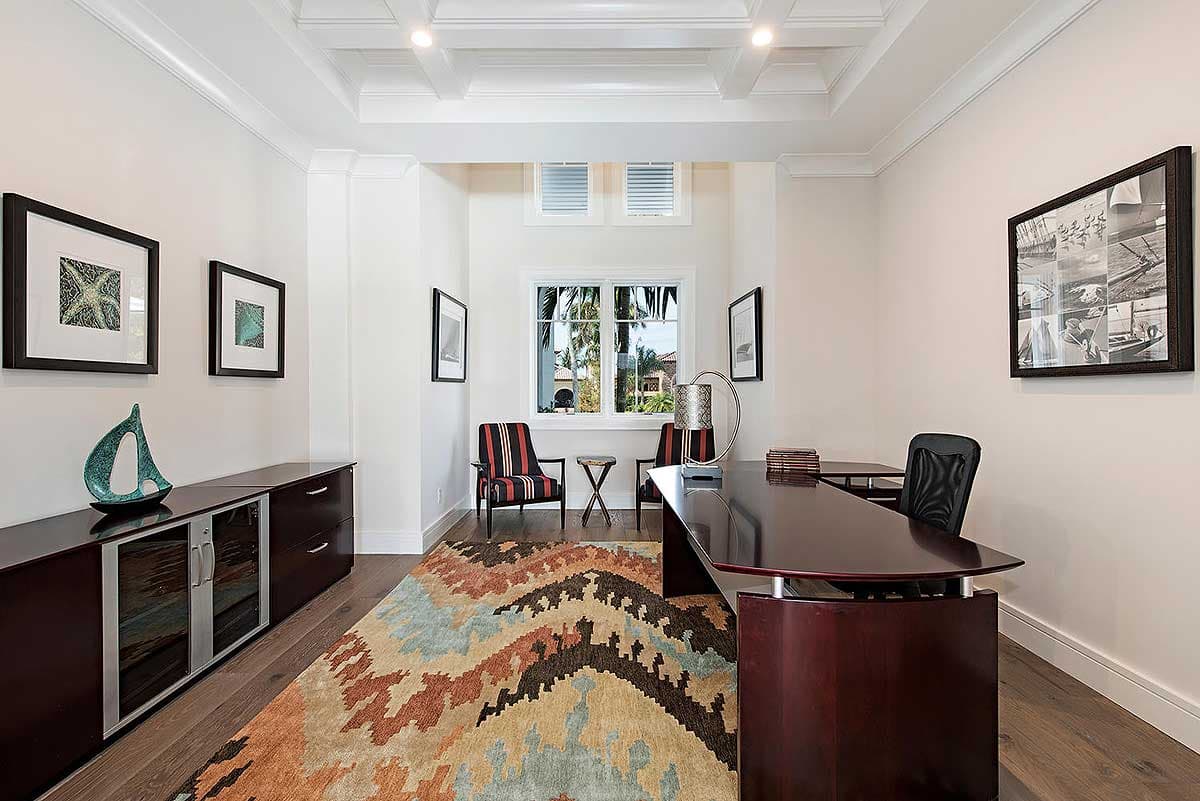

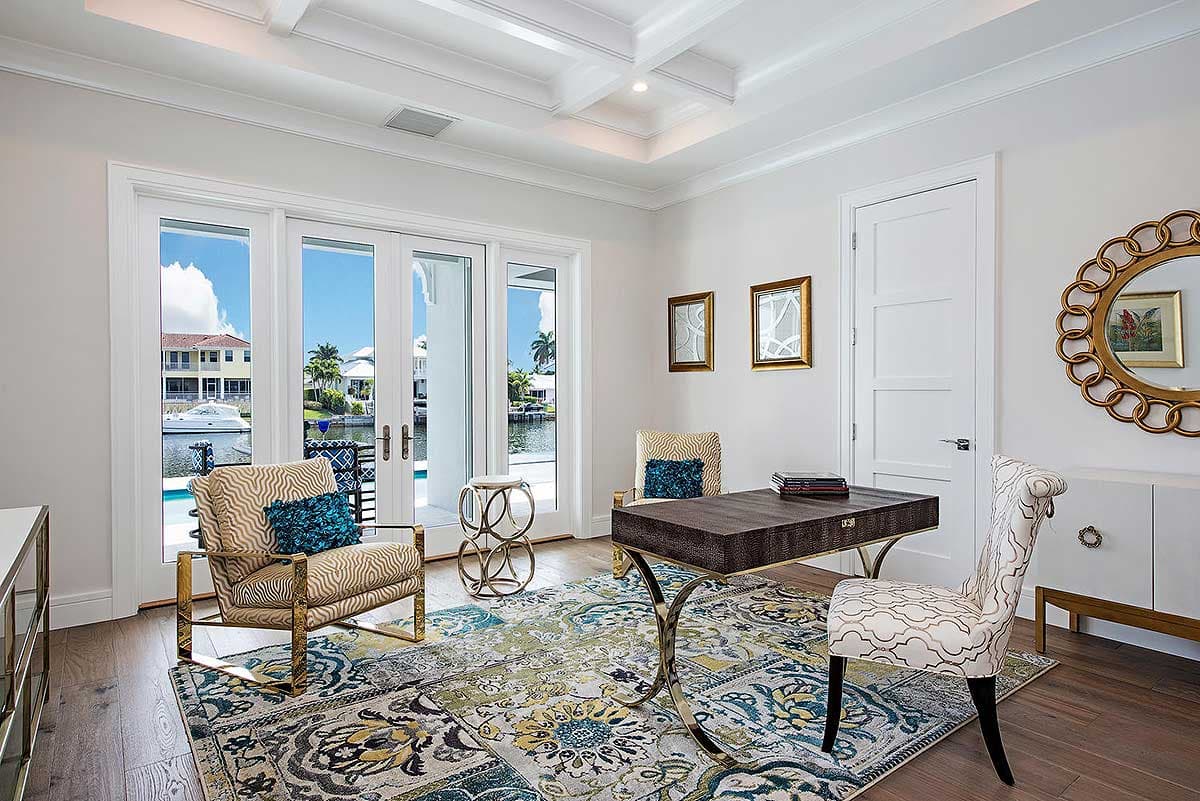

  • Inside every room in the house gets beautiful ceiling treatments that heighten the custom feel of the home.

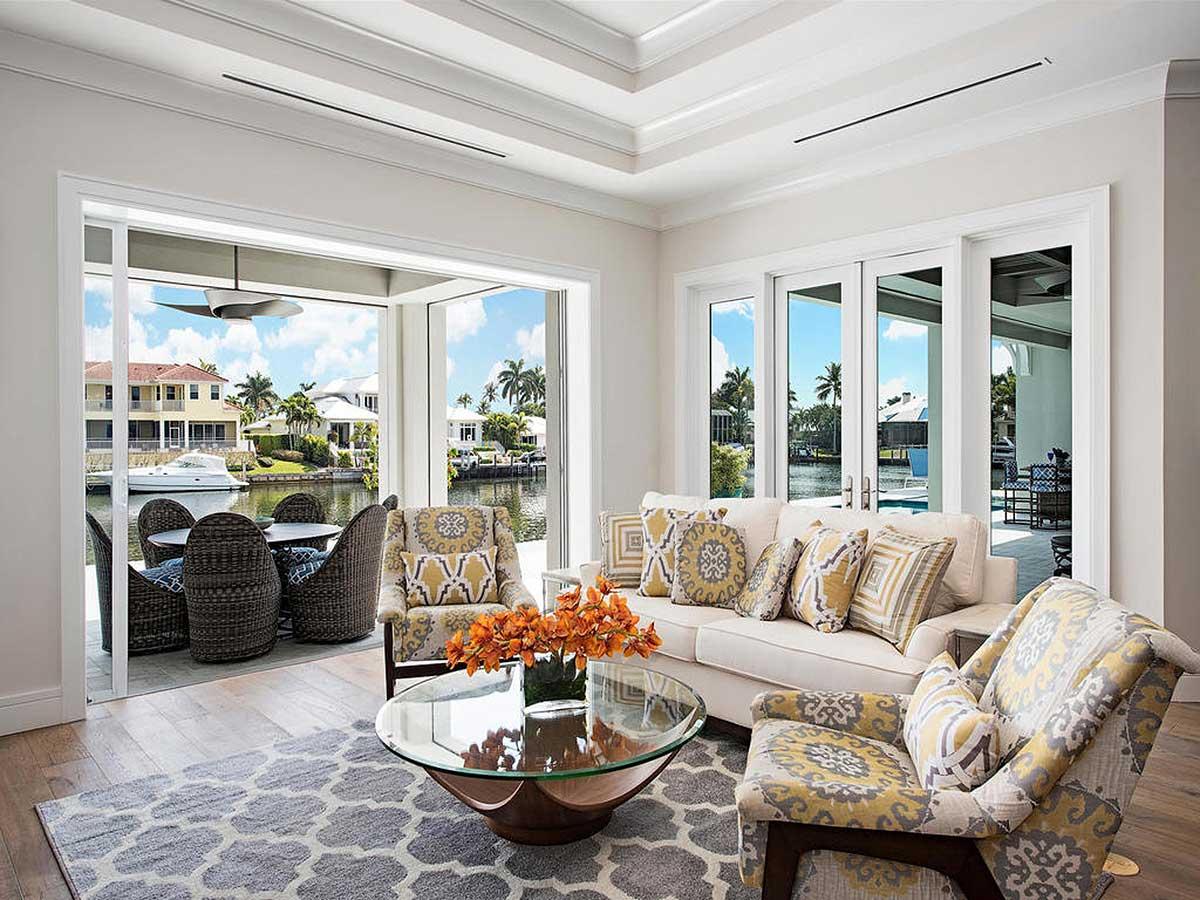

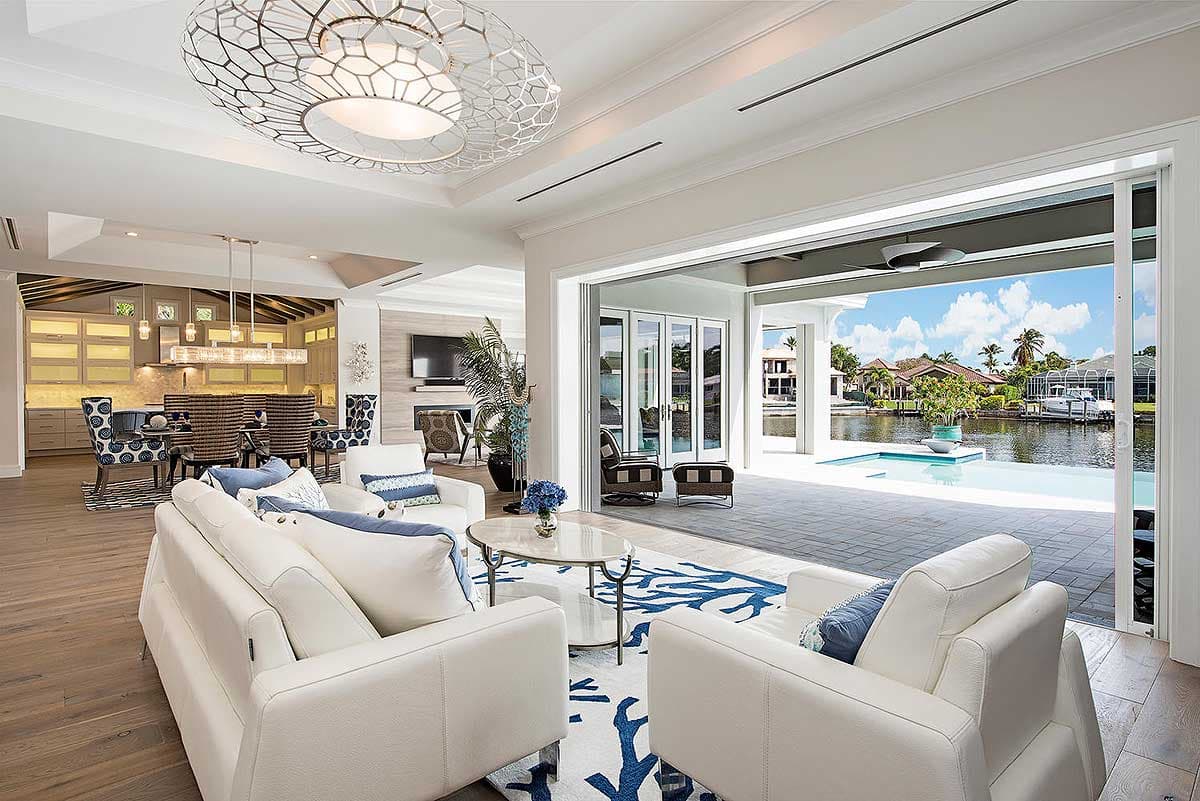

  • A curved wet bar in the enormous living room has seating for five people.

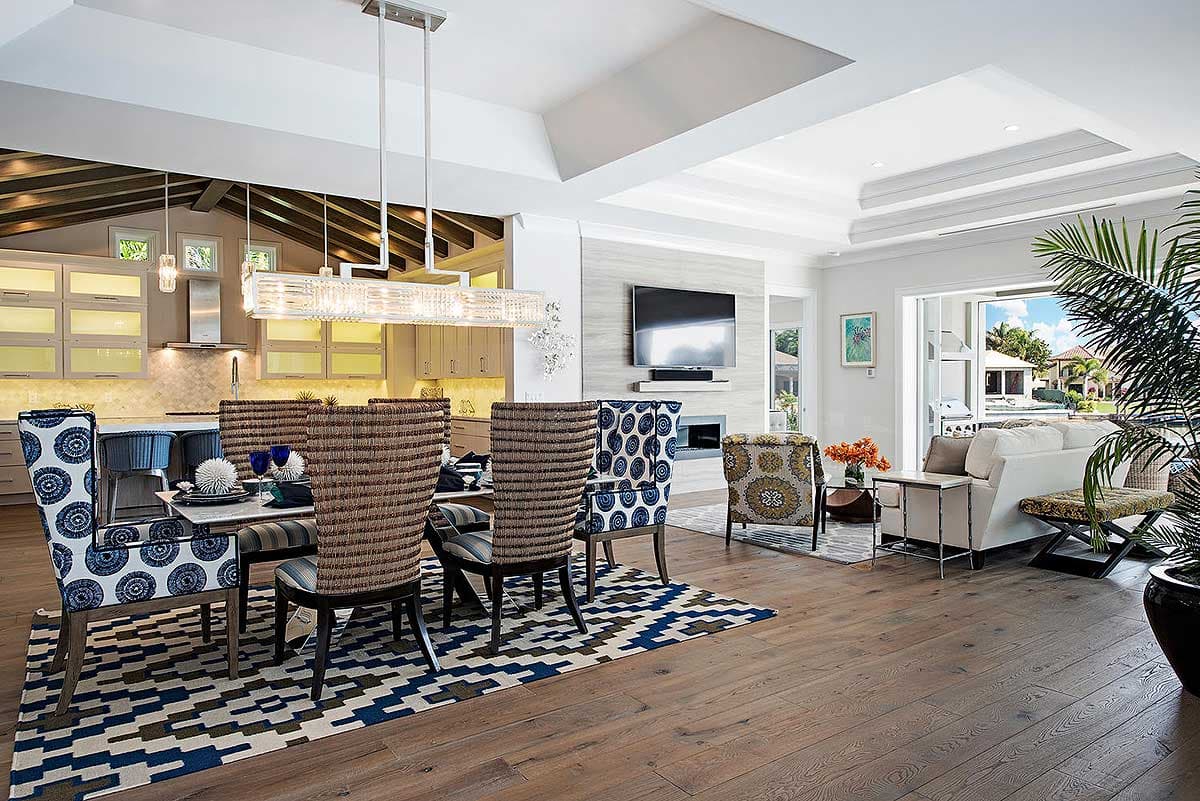

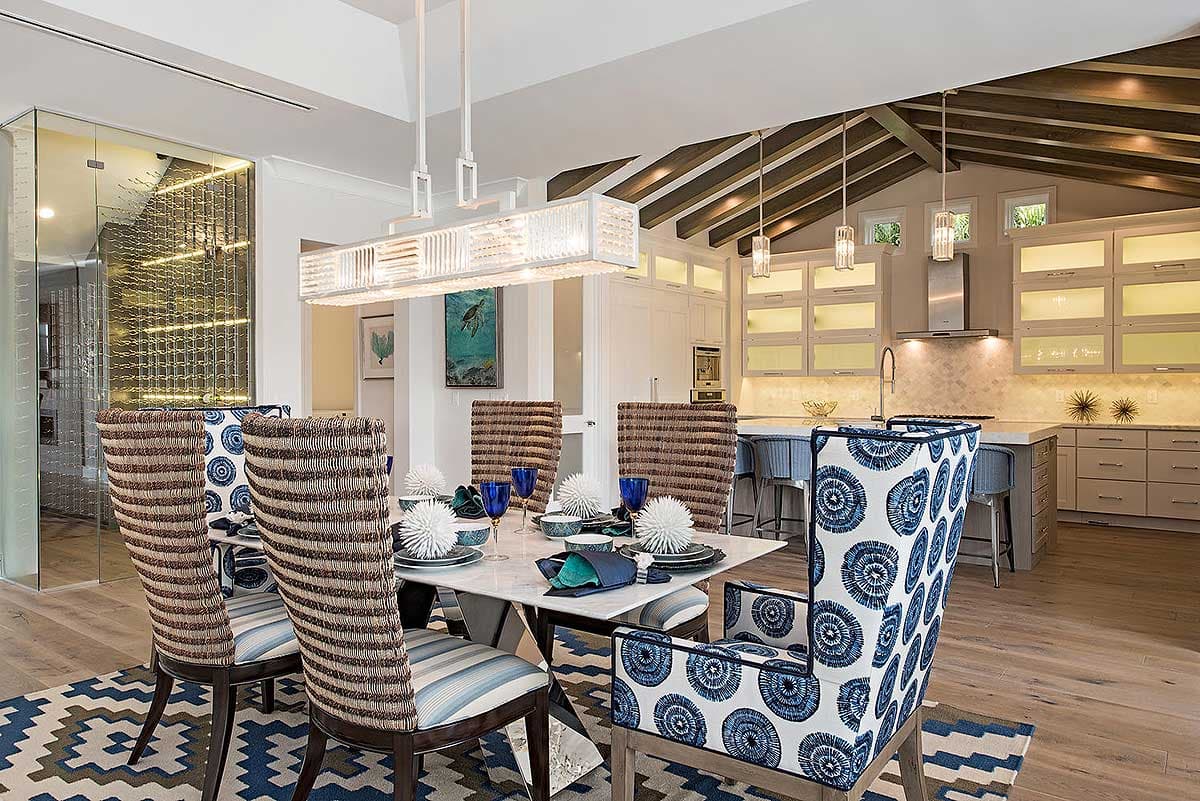

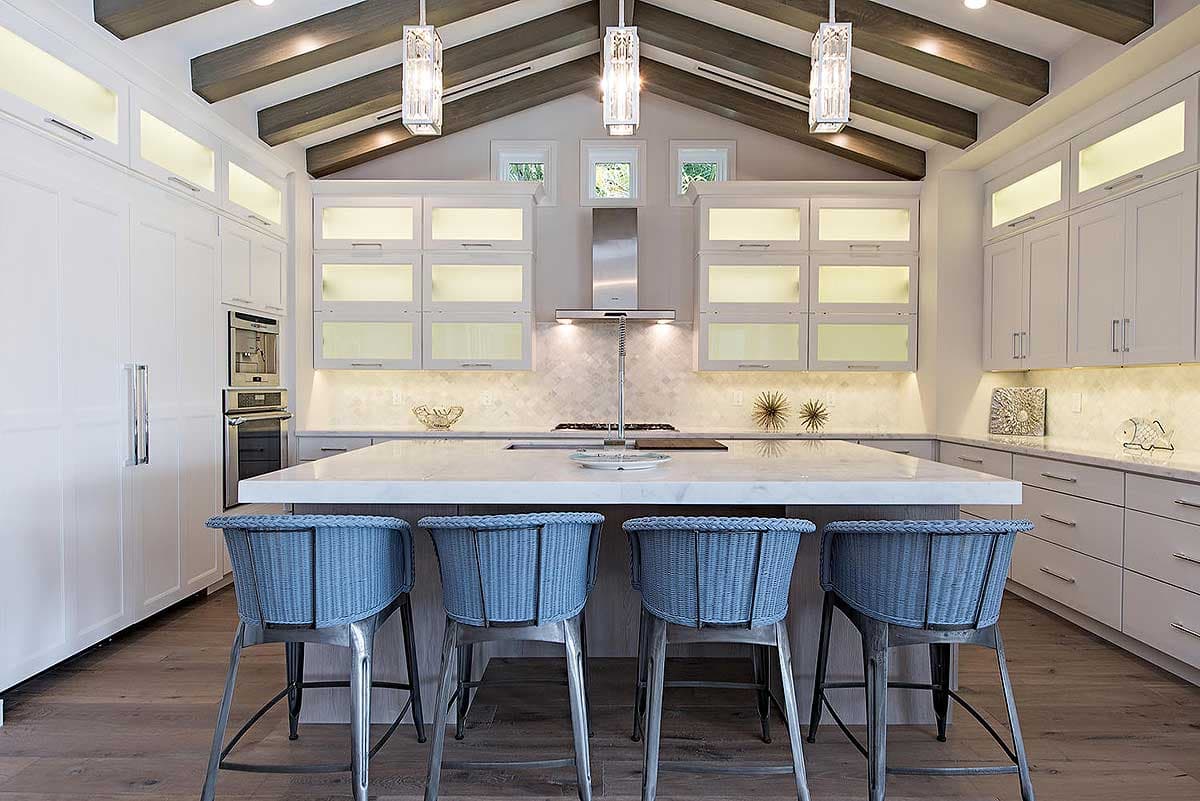

  • From the kitchen you can take in the whole scene with the amazing sightlines that come with the open layout.

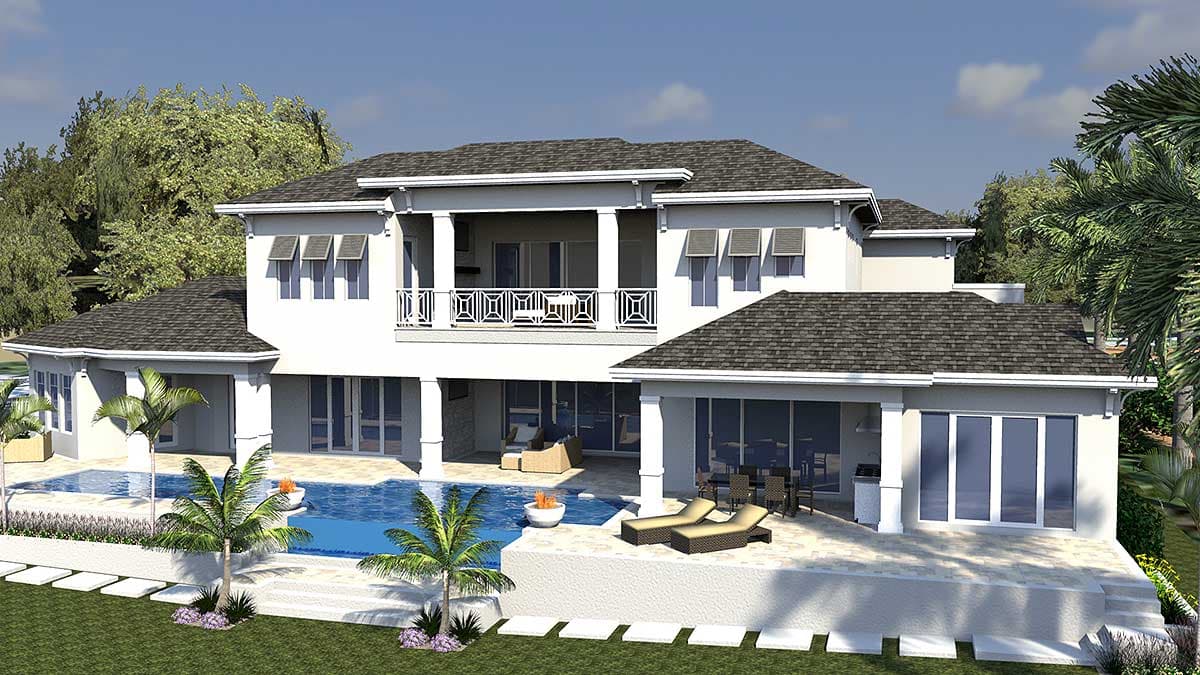

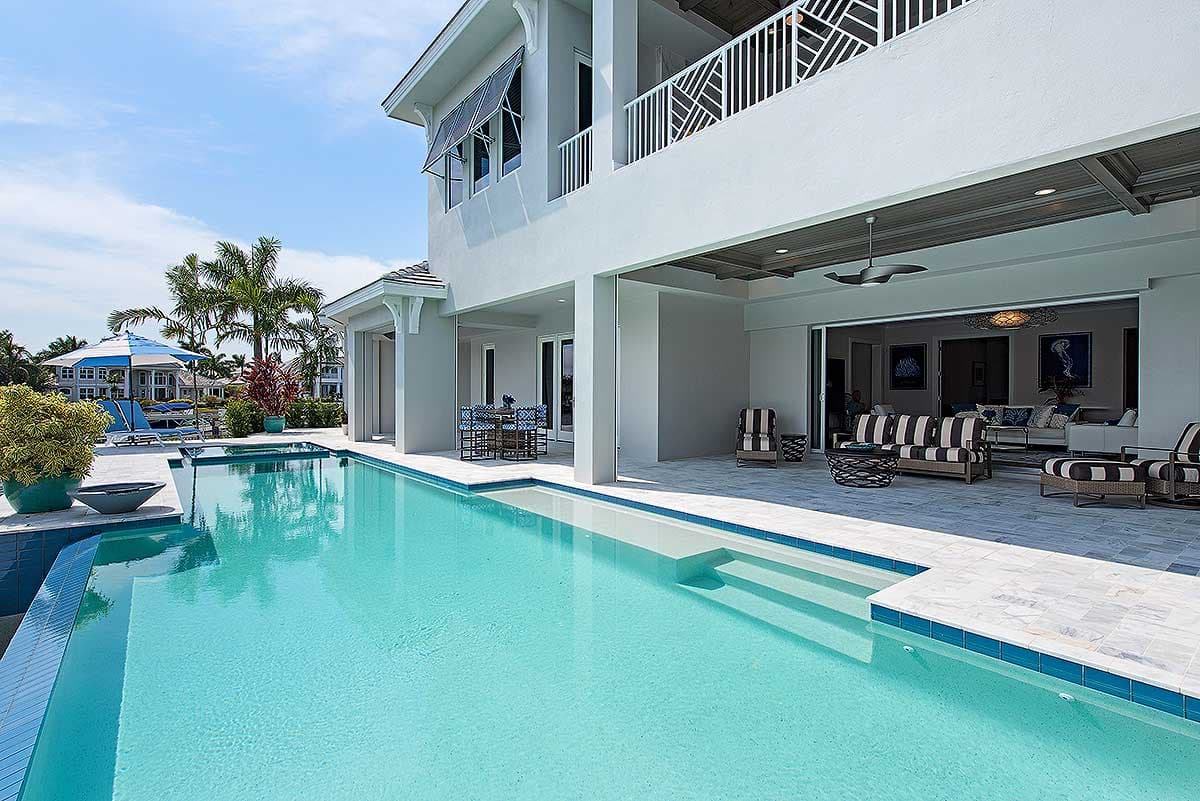

  • Every room along the back has a door to the rear covered lanai that spans almost the whole width of the house.

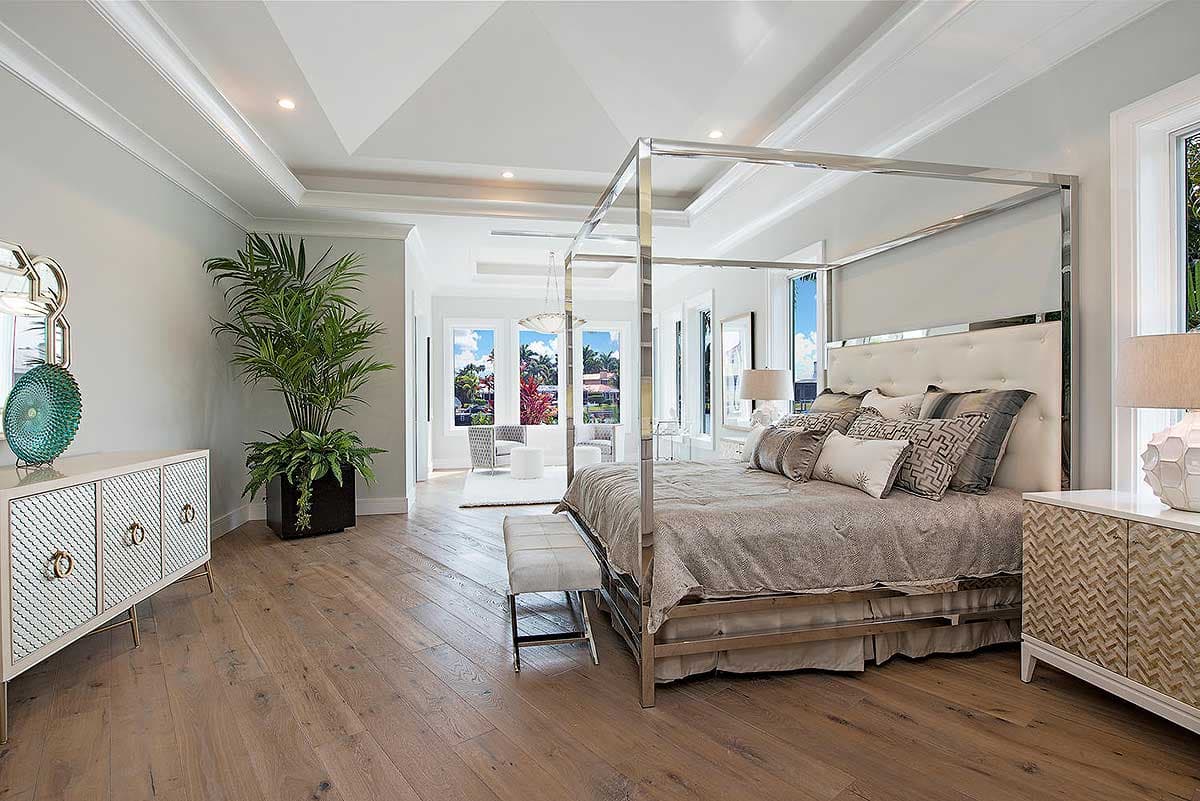

  • The master suite angles off and fills the entire right side of the home.
  • There's a big sitting room, two huge walk-in closets and a stunning master bathroom with a grand soaking tub right in the middle backed by a giant two-entry walk-in shower.
  • Luxuriate in the home sauna that will warm you right up.
  • Upstairs, two more guest suites have their own second floor lounge that opens to a huge covered balcony.
  • A residential elevator makes it easy to get from floor to floor.
What's Included

  • Slab Plan
  • First Floor Notes
  • First Floor Dimensions
  • Second Floor Notes
  • Second Floor Dimensions
  • Door and Window Schedules
  • First Floor Electrical
  • Second Floor Electrical
  • First Floor Ceiling Plan
  • Second Floor Ceiling Plan
  • Front Elevation
  • Right Elevation
  • Rear Elevation
  • Left Elevation
  • Lower Roof Plan
  • Upper Roof Plan
  • Building Sections
  • Wall Sections
  • Fastener Requirements

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Elaborate Florida House Plan

  • 6,005

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

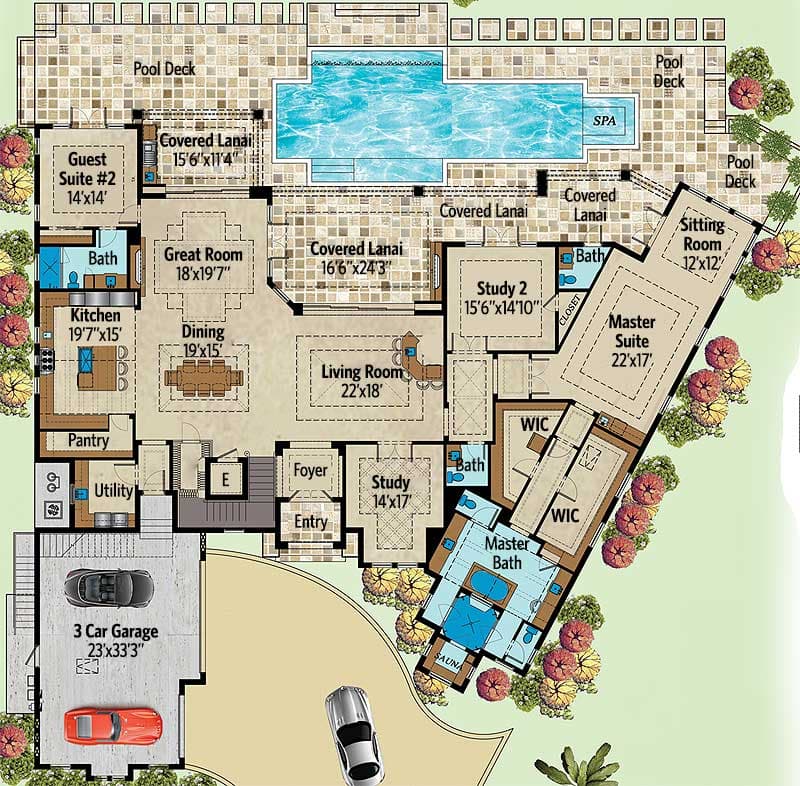

  • Main Level

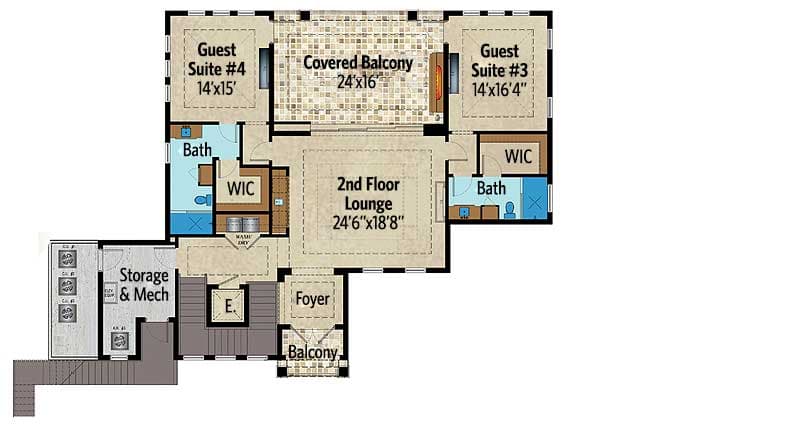

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 6,005 sq. ft.
  • 1st Floor: 4,381 sq. ft.
  • 2nd Floor: 1,624 sq. ft.

Dimensions

  • Width: 105' 11"
  • Depth: 92' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 828 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
