Plan: 56316SM

Elegance in a Small Package

1,919 3 3 1 2
Pageloader

Elegance in a Small Package

Plan 56316SM

  • 1,919

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Less than 2,000 square feet, this elegant French Country home still covers all your "must-have" list.
  • From the open floor plan and walk-in pantry to the tray ceiling in the master suite plus two walk-in closets, you can have it all in a manageable size.
  • Carport storage is an added bonus and the rear covered porch gives you privacy and views of your backyard.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT:  Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn.  Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details.  Also included are wall sections, and any other necessary details for your framer or other subcontractors

Floor Plan

Plan details



Elegance in a Small Package

  • 1,919

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 6 Sets $675
  • PDF - single-use $775
  • 8 Sets $775
  • View all purchase option online

About This Plan

  • Less than 2,000 square feet, this elegant French Country home still covers all your "must-have" list.
  • From the open floor plan and walk-in pantry to the tray ceiling in the master suite plus two walk-in closets, you can have it all in a manageable size.
  • Carport storage is an added bonus and the rear covered porch gives you privacy and views of your backyard.

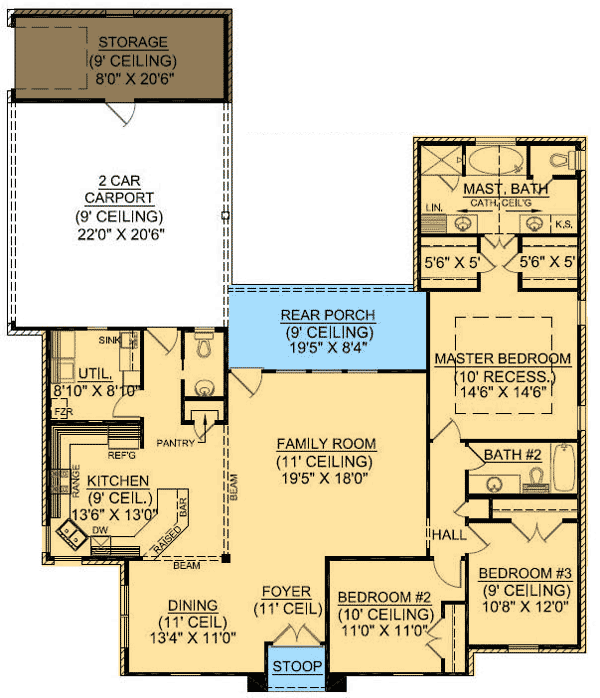

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,919 sq. ft.
  • 1st Floor: 1,919 sq. ft.
  • Porch, Front: 21 sq. ft.
  • Porch, Rear: 172 sq. ft.
  • Storage: 164 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 56' 7"
  • Depth: 66' 9"
  • Max ridge height: 24' 8"

Garage

  • Type: Carport
  • Area: 451 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12

Architectural Style

  • Acadian
  • European
  • French Country
  • Southern

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • PDF

Plan Collections

  • Photo Gallery
