Plan 57132HA
Elegance With Efficiency
Heated S.F.
1,580
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Home offers great looks with an oversized front porch.
  • The large great room features a corner fireplace, vaulted ceiling, access to the patio and is open to the bayed dining area and kitchen breakfast bar.
  • The spacious kitchen enjoys an adjoining multi-purpose room ideal for a study or hobby room.
  • The master bedroom boasts a vaulted ceiling, two walk-in closets and a plush bath.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

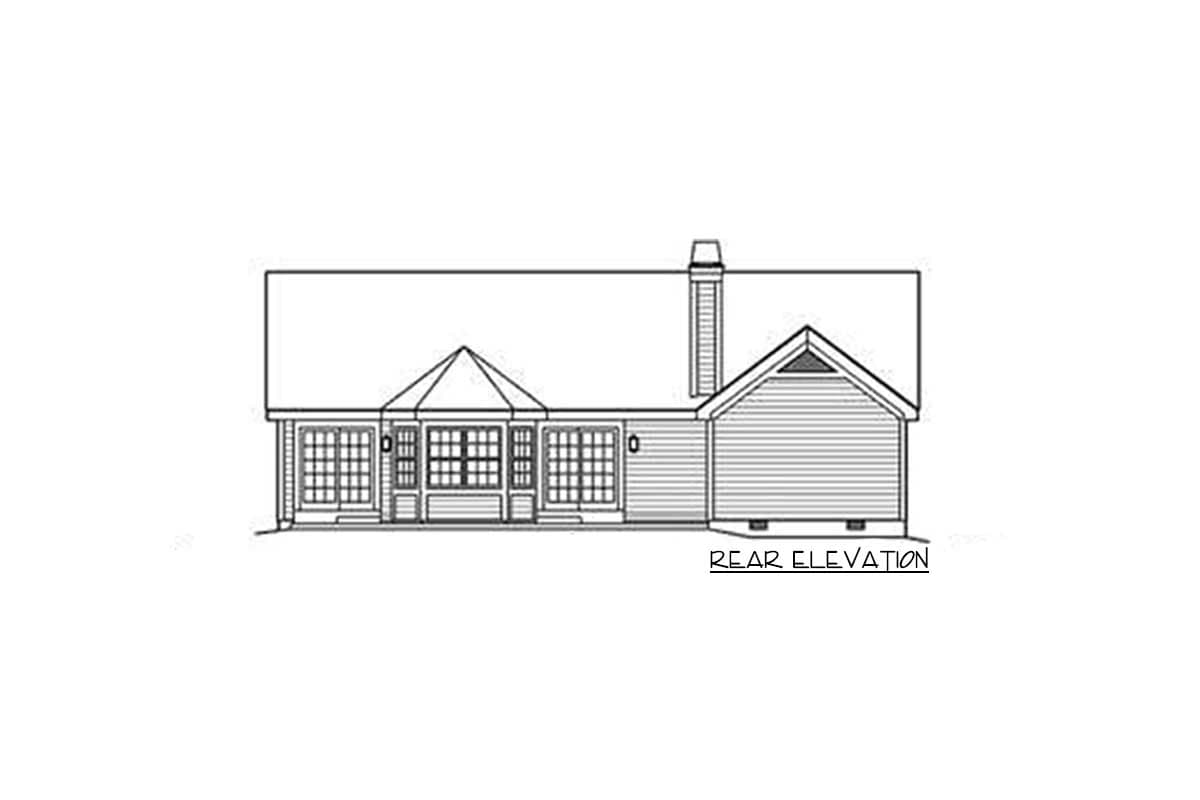

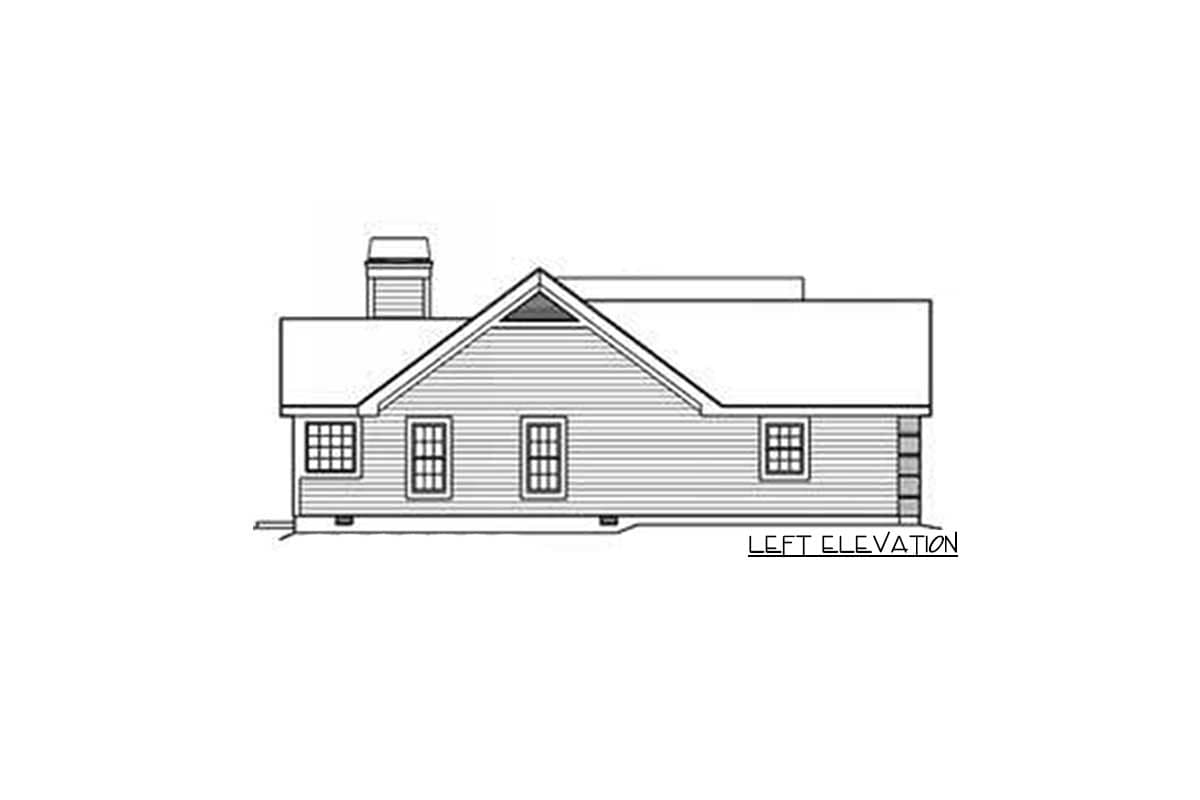

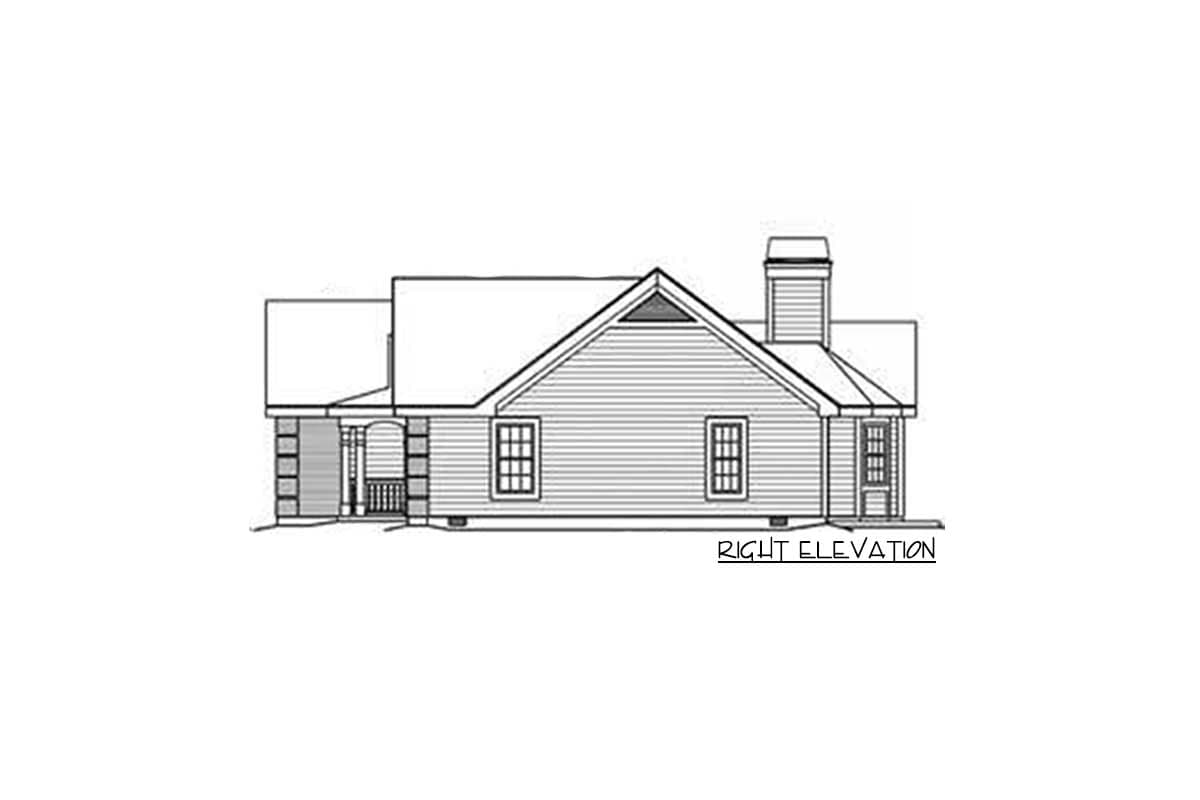

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Elegance With Efficiency

  • 1,580

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

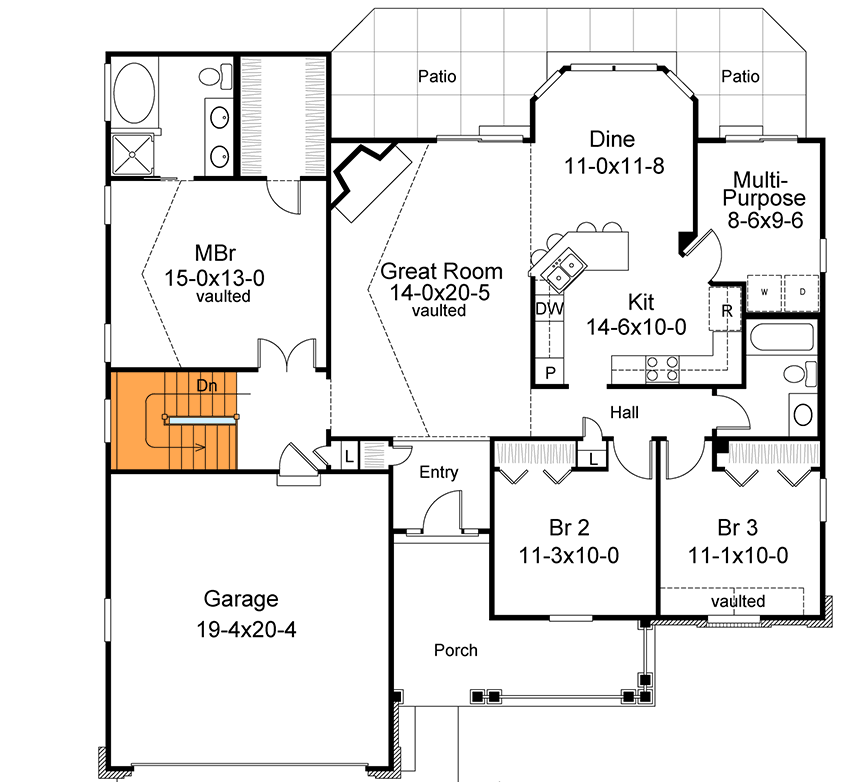

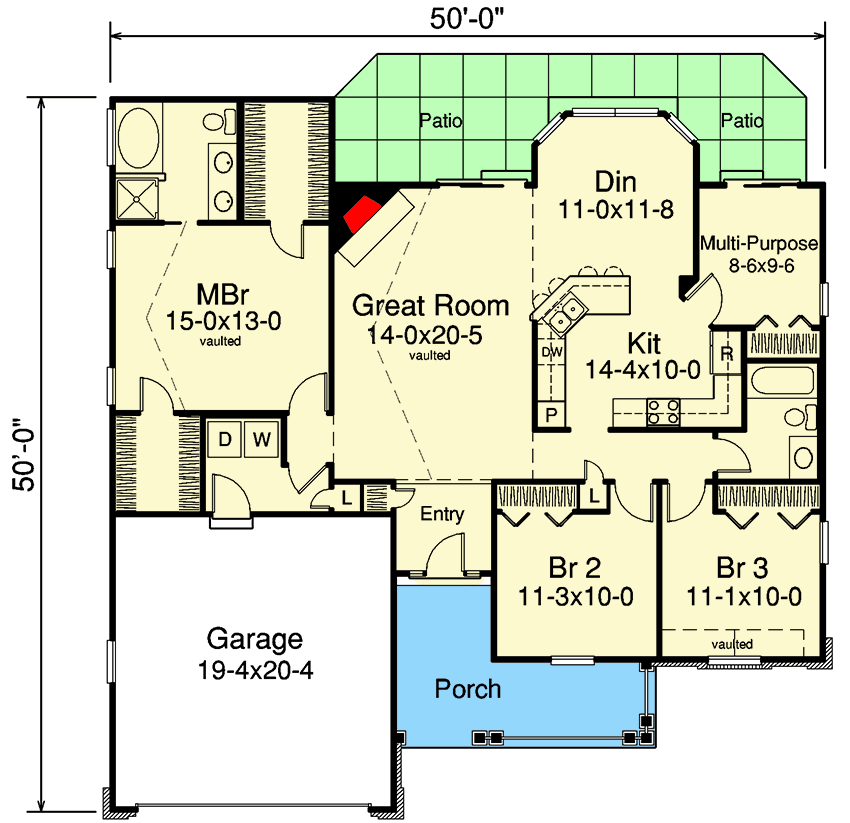

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,580 sq. ft.
  • 1st Floor: 1,580 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 50' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 393 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
