Plan 16853WG

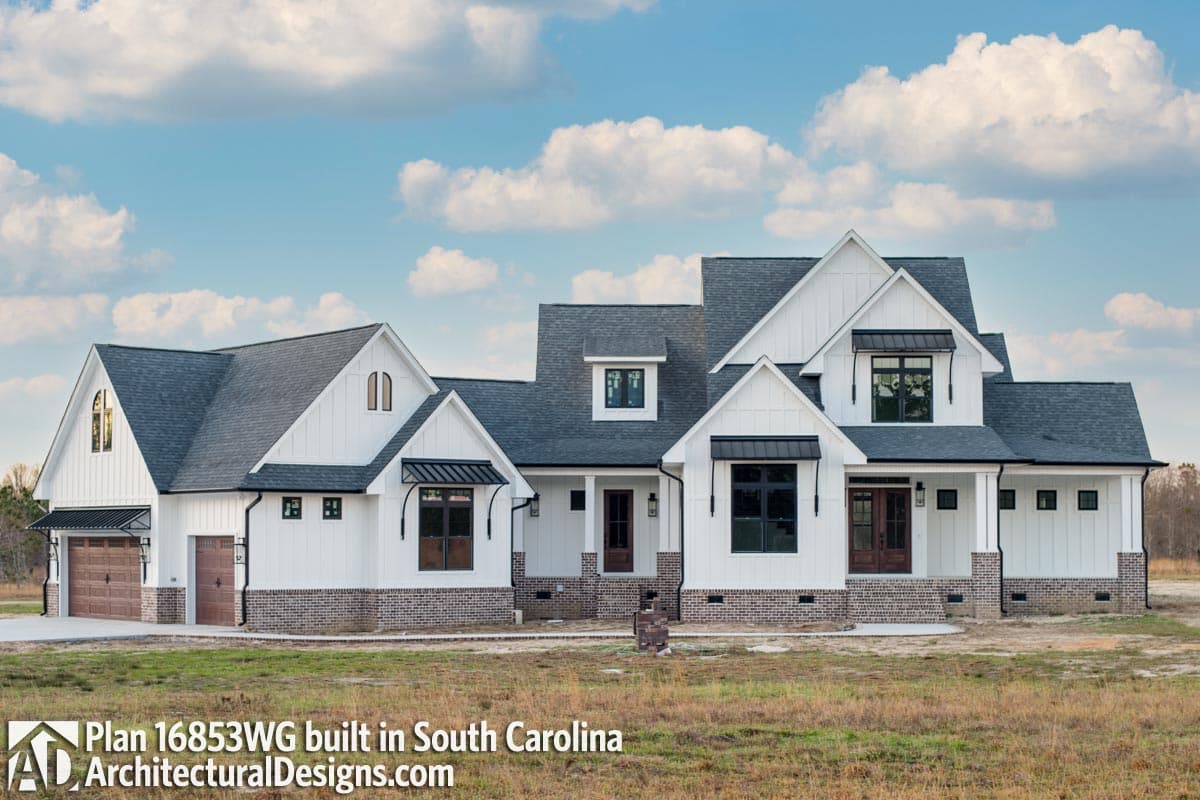

Elegant 3-Bed Farmhouse with Great Outdoor Living Spaces - 2984 Sq Ft
Heated S.F.
2,984
Beds
3
Baths
2.5
Stories
2
Cars
3
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Modern Farmhouse Plan 16853WG Comes to Life in Texas

Modern Farmhouse Plan 16853WG Comes to Life in Texas

31

Photos

Photos
Floor Plan

Plan 16853WG

Main Level
slide image 0

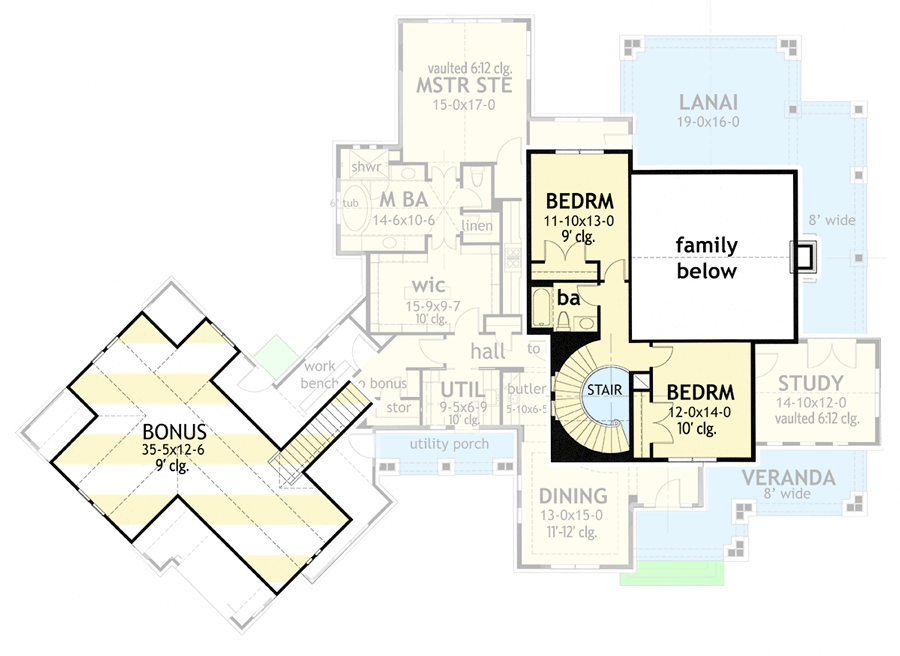

2nd Floor
slide image 1

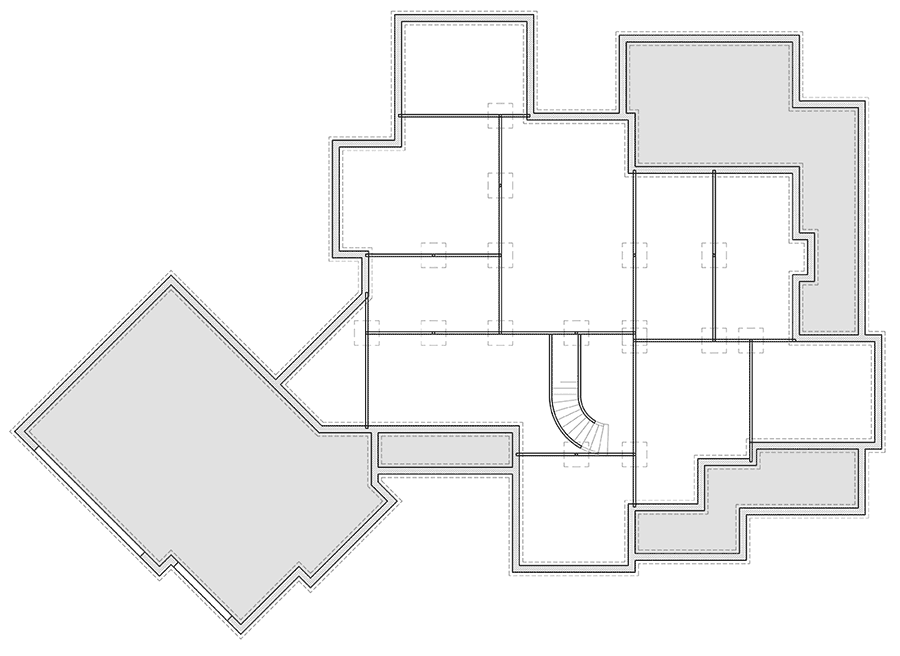

Unfinished Basement Layout
slide image 2

Plan 16853WG

1-800-854-7852

1-262-521-4596

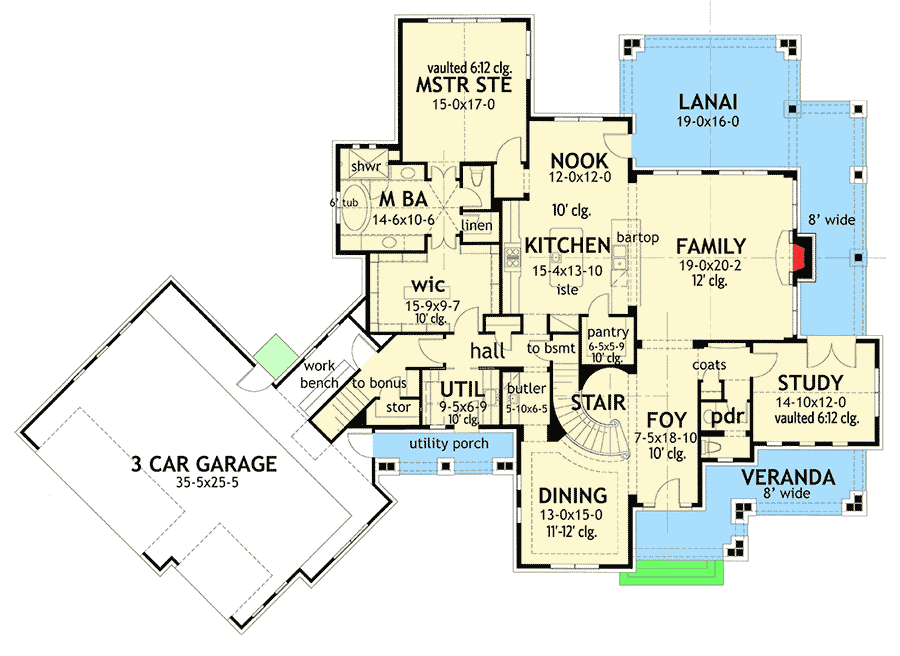

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Unfinished Basement Layout
floor plan image Unfinished Basement Layout
Plan Details
  • We've taken the traditional farmhouse and given it more elegant trappings including a spacious lanai and accoutrements like bracketed awnings, multi-paned windows and numerous vaulted ceilings.
  • Step in off the front porch and marvel at the circular stair leading to the upstairs bedrooms. And take in the front-to-back views extending all the way to the lanai in back.
  • A butler pantry makes serving guests in your formal dining room with tray ceiling a breeze. The cook gets to stay in touch with friends via the bar top and views extending to the vaulted family room, nook and lanai.
  • The main floor master suite is vaulted and has an expansive walk-in closet. Access to the garage simplifies getting in and out quickly.
  • The study is vaulted and has french doors that let you easily enjoy the outdoors on the lanai which makes a great place for an outdoor living room.
  • Stairs by the garage take you to the optional bonus room where you have 605 square feet of space to turn into whatever your heart desires.
  • The bonus room above the garage has 5' knee walls and a 9' ceiling.
  • Were you to detach and move the garage, the main body of the house measures 66'-10" across and 67'-11" deep.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

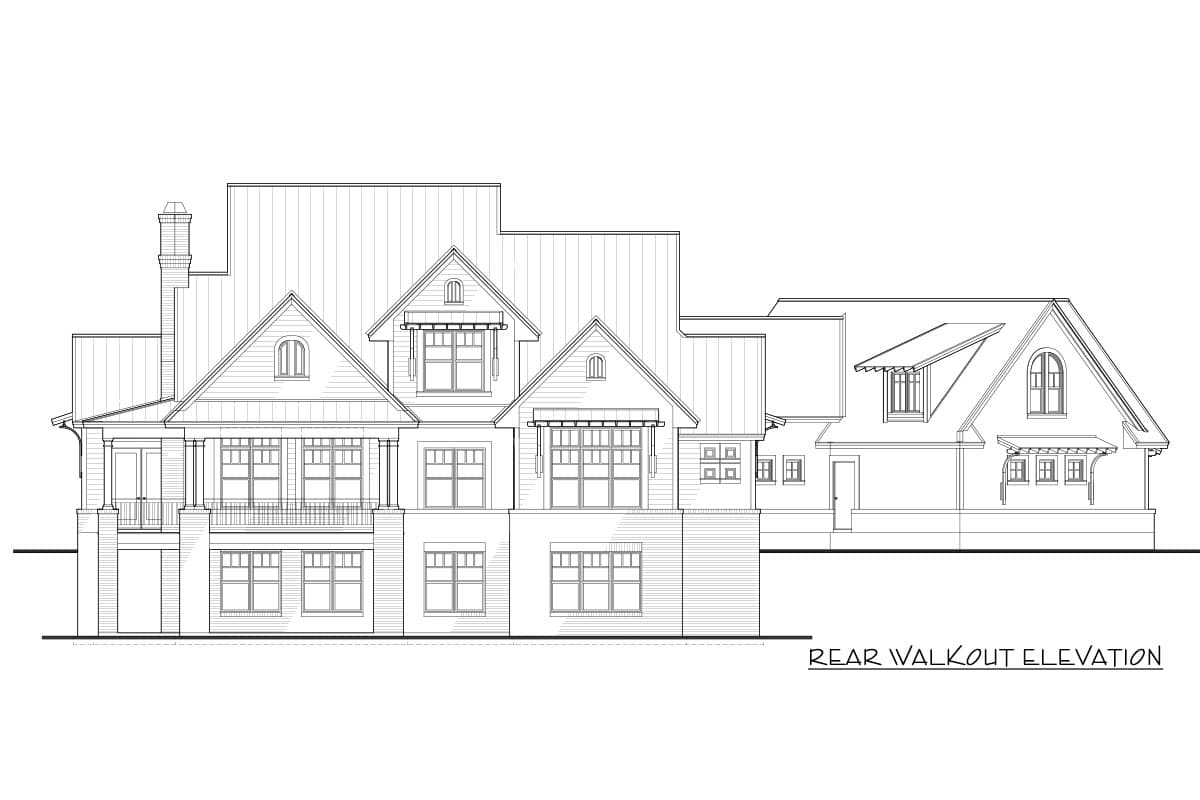

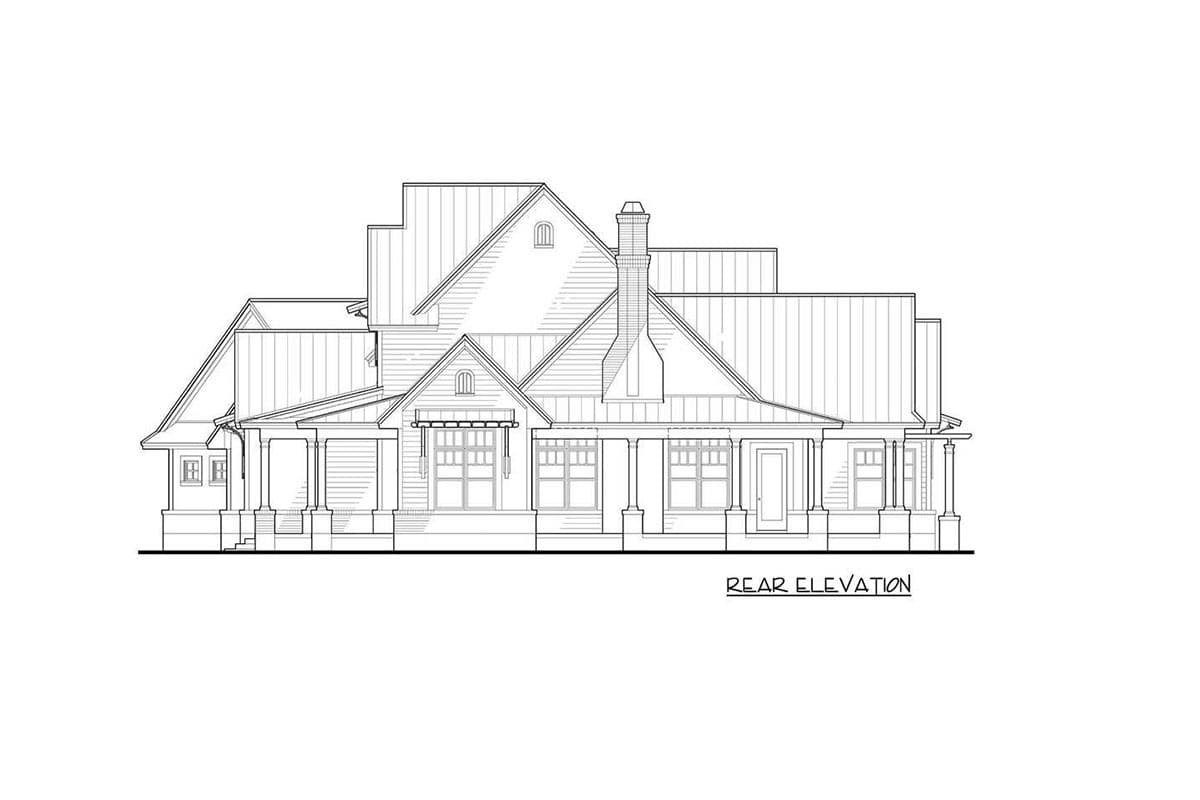

  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,984 sq. ft.

1st Floor

2,459 sq. ft.

2nd Floor

525 sq. ft.

Bonus

605 sq. ft.

Lanai

929 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

105' 6"

Depth

75' 6"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1153 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

Flat

12' 0''

Master Bedroom

Vaulted

12' 0''

Master Bath

Vaulted

12' 0''

Study

Vaulted

12' 0''

Dining Room

Tray

11' 0''

Bedroom 2

Flat

10' 0''

Bedroom 3

Flat

9' 0''

Kitchen

Flat

10' 0''

Foyer

Flat

10' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Plan Collections

Square Footage Breakdown

Total Heated Area

2,984 sq. ft.

1st Floor

2,459 sq. ft.

2nd Floor

525 sq. ft.

Bonus

605 sq. ft.

Lanai

929 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

105' 6"

Depth

75' 6"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1153 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

Flat

12' 0''

Master Bedroom

Vaulted

12' 0''

Master Bath

Vaulted

12' 0''

Study

Vaulted

12' 0''

Dining Room

Tray

11' 0''

Bedroom 2

Flat

10' 0''

Bedroom 3

Flat

9' 0''

Kitchen

Flat

10' 0''

Foyer

Flat

10' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Plan Collections
