Plan 54031LK

Elegant 4-Bed House Plan with Large Outdoor Living Space

Name: Plan 54031LK: Elegant 4-Bed House Plan with Large Outdoor Living Space
Brand: Architectural Designs
SKU: 54031LK
Price: 2475.0 USD
Availability: InStock

Heated S.F.

3,886

Beds

Baths

3.5

Stories

Cars

Floor Plan

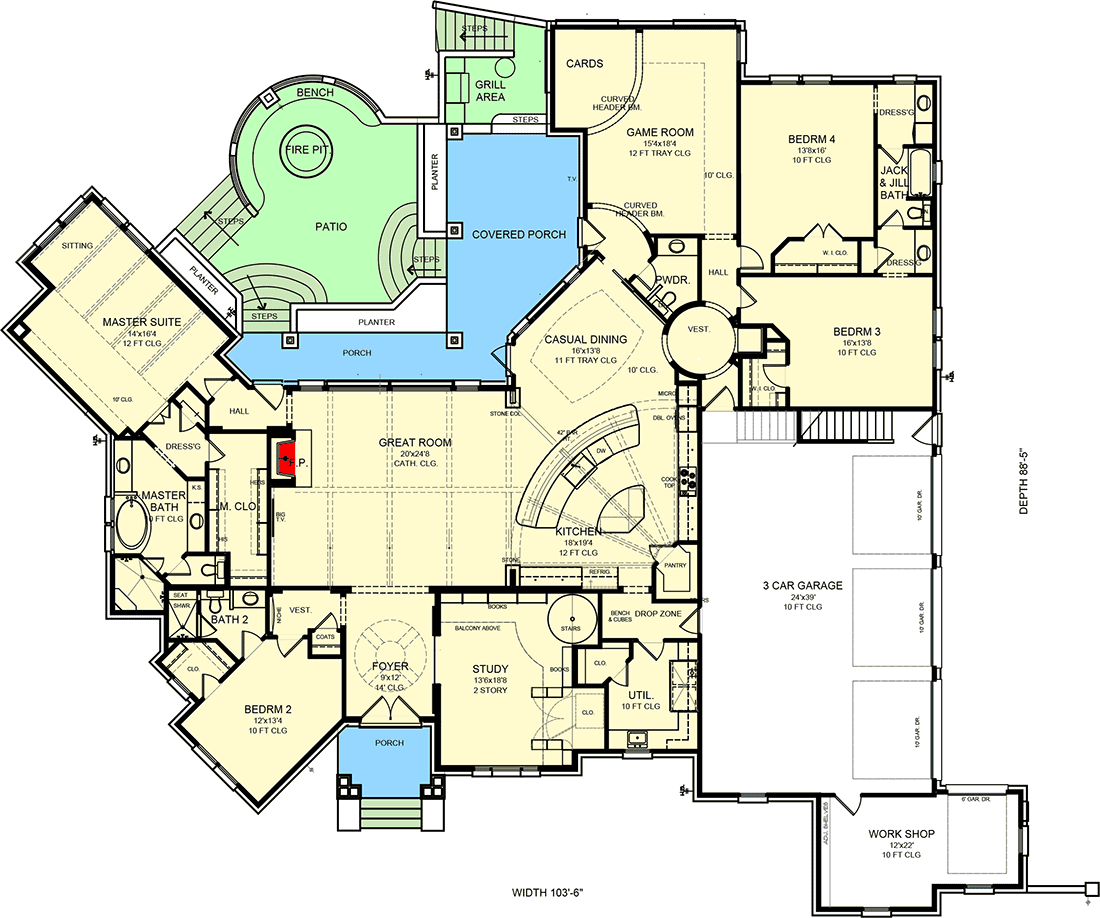

Main Level

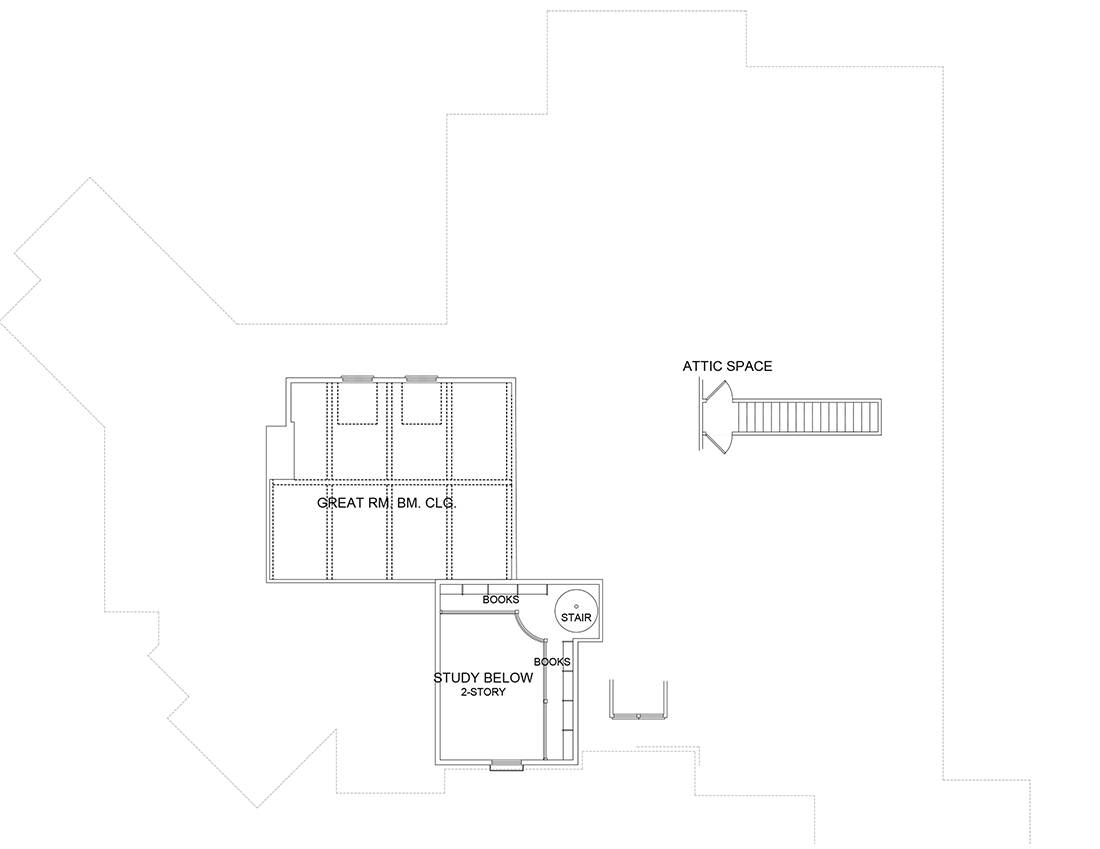

Ceiling Details

Plan Details

Timber frames decorate the front gables on the exterior of this 4-bedroom house plan, while inside, elegant ceilings help to differentiate the shared living spaces in the open floor plan.
A study to the right of the foyer highlights a spiral staircase that leads to an upper-level library, while straight ahead, a cathedral ceiling soars above the great room.
Two islands form the gourmet kitchen with loads of workspace that creates the perfect setting to show off your culinary skills.
While entertaining, enjoy the game room, or escape to the generously-sized outdoor living space, complete with a built-in grill and fire pit.
The fully-appointed master suite provides a sizable bedroom, 5-fixture bathroom, and large wardrobe. Three additional bedroom suites are sprinkled throughout the design; two share a Jack-and-Jill bath.
The hobbyist in the family will appreciate the dedicated workshop attached to the 3-car garage.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
