Plan 59318ND
Elegant Duplex House Plan
Heated S.F.
3,620
Units
2
Width
96'
Depth
43'
Cars
4
What's Included
Plan Details
  • This elegant duplex features large round top windows and tiered gables for great street appeal.
  • An arched porch welcomes you into a well designed split-level floor plan offering several family areas.
  • The breakfast and formal dining rooms are at the front of the house leaving the great room and master suite much appreciated privacy in the rear.
  • A large laundry room is centrally located for added convenience.
  • Upstairs you'll find a full bathroom and two additional bedrooms with creative ceilings heights.
Unit A
1,810 Sq. Ft.
1369 Sq. Ft. 1st Floor
441 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
380 Sq. Ft.
48' w 43' d 27' h
Unit B
1,810 Sq. Ft.
1369 Sq. Ft. 1st Floor
441 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
380 Sq. Ft.
48' w 43' d 27' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

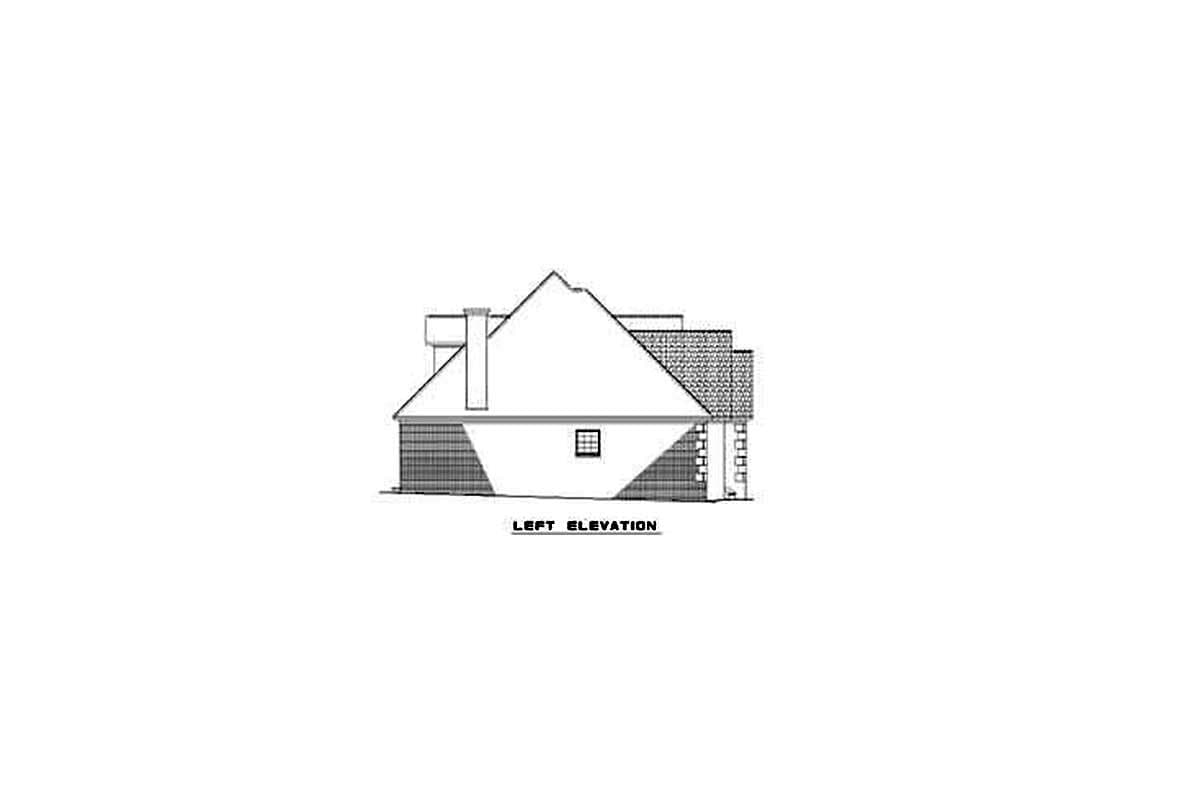

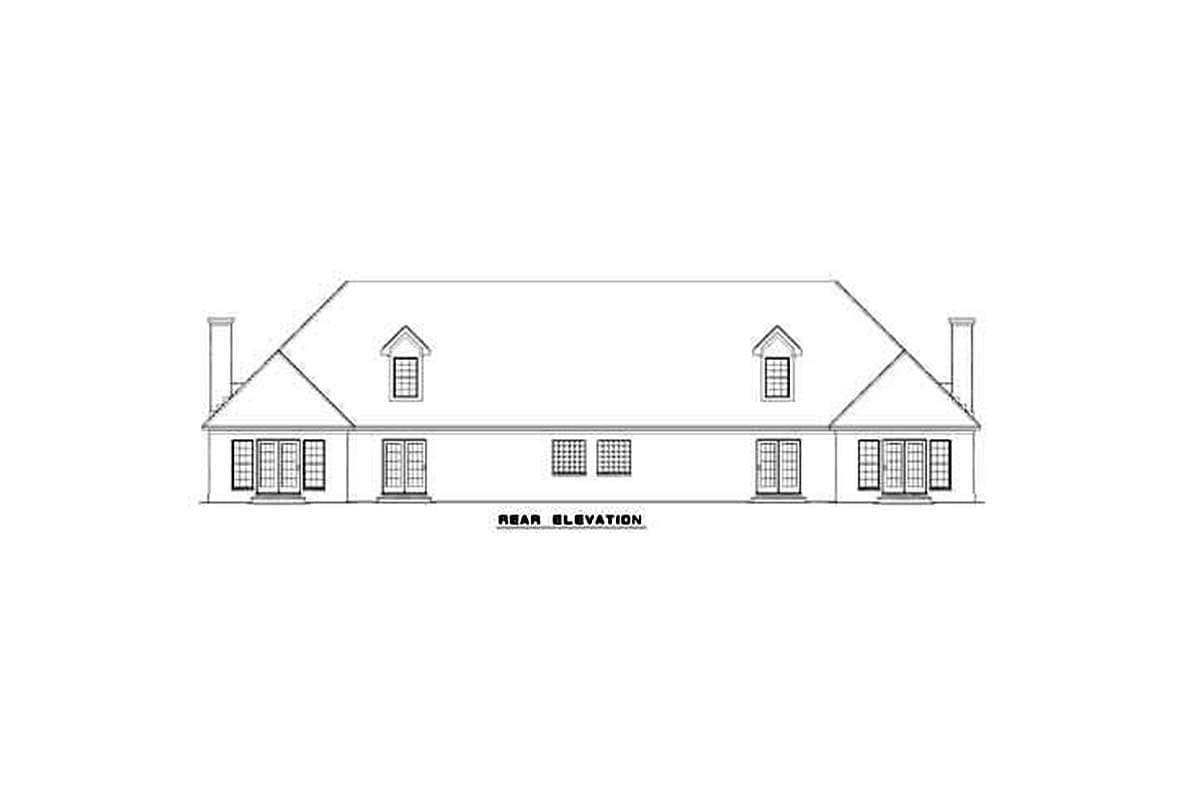

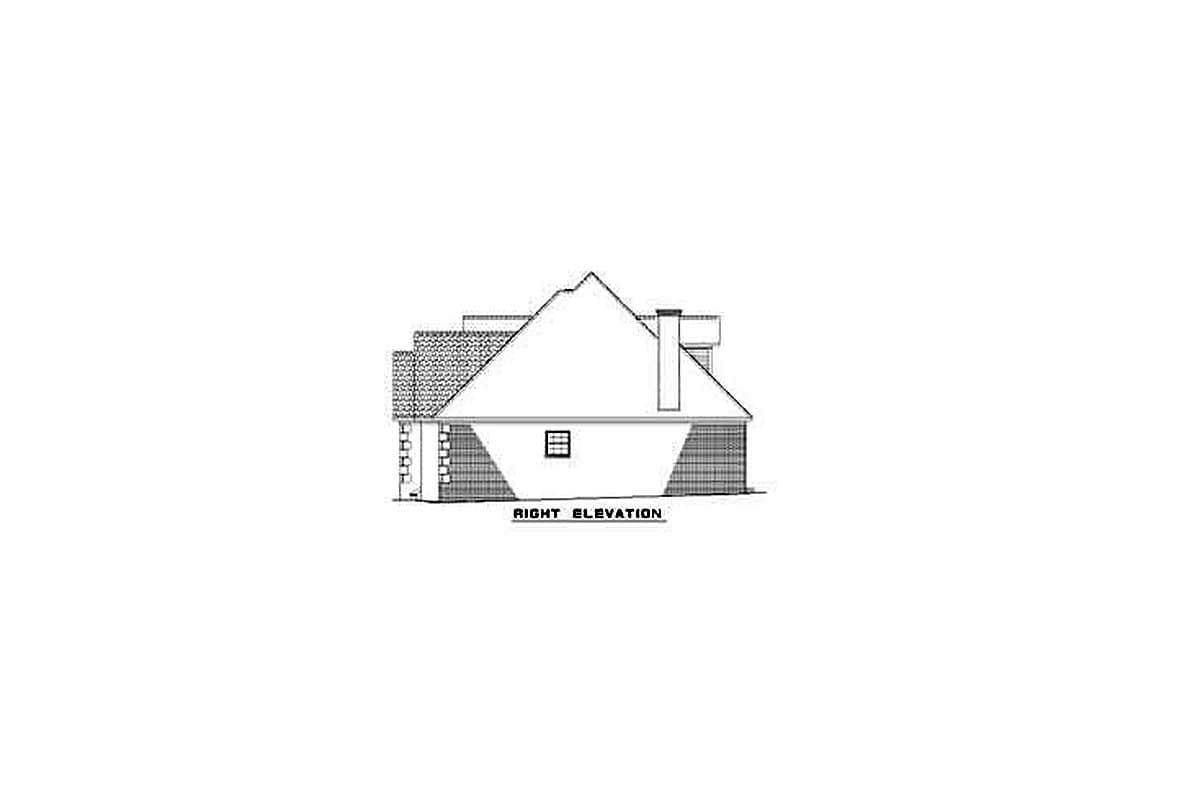

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Elegant Duplex House Plan

  • 3,620

    Heated s.f.

  • 2

    Units

  • 96'

    Width

  • 43'

    Depth

Floor Plan

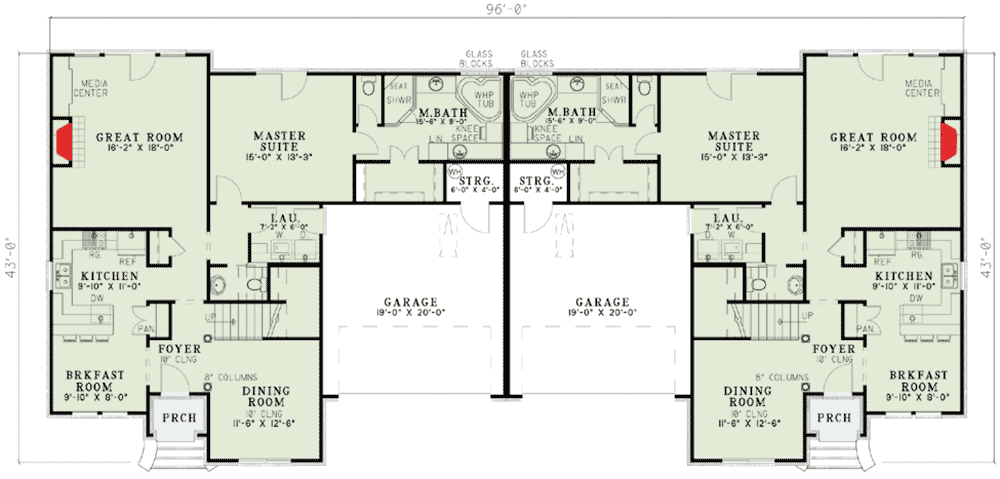

  • Main Level

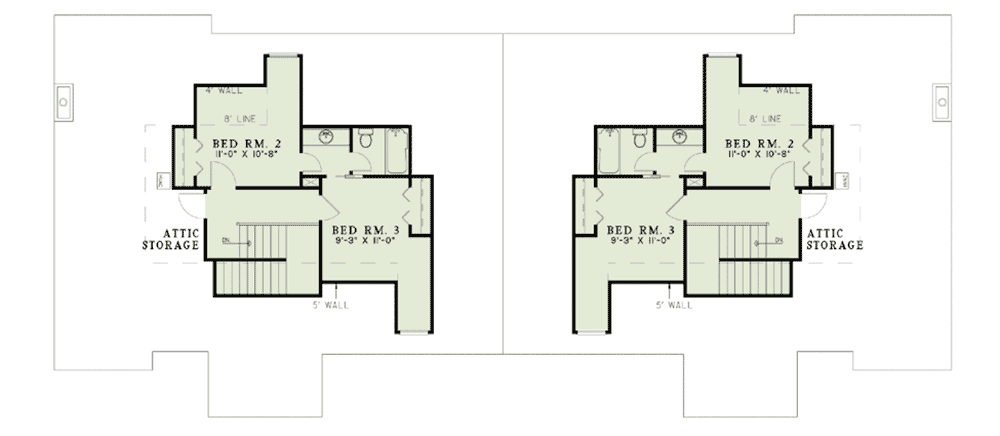

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,620 sq. ft.
  • 1st Floor: 2,738 sq. ft.
  • 2nd Floor: 882 sq. ft.

Dimensions

  • Width: 96' 0"
  • Depth: 43' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 760 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Pier, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Elegant Duplex House Plan

  • 3,620

    Heated s.f.

  • 2

    Units

  • 96'

    Width

  • 43'

    Depth

Elegant Duplex House Plan

  • 3,620

    Heated s.f.

  • 2

    Units

  • 96'

    Width

  • 43'

    Depth

Plan Details

Square Footage Breakdown

  • Total: 3,620 sq. ft.
  • 1st Floor: 2,738 sq. ft.
  • 2nd Floor: 882 sq. ft.

Dimensions

  • Width: 96' 0"
  • Depth: 43' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 760 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Pier, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
Plan 59318ND
