Plan 59176ND

Elegant Florida-Style House Plan with 3-Car Courtyard Garage

Heated S.F.
3,654
Beds
3
Baths
3
Stories
1
Cars
3

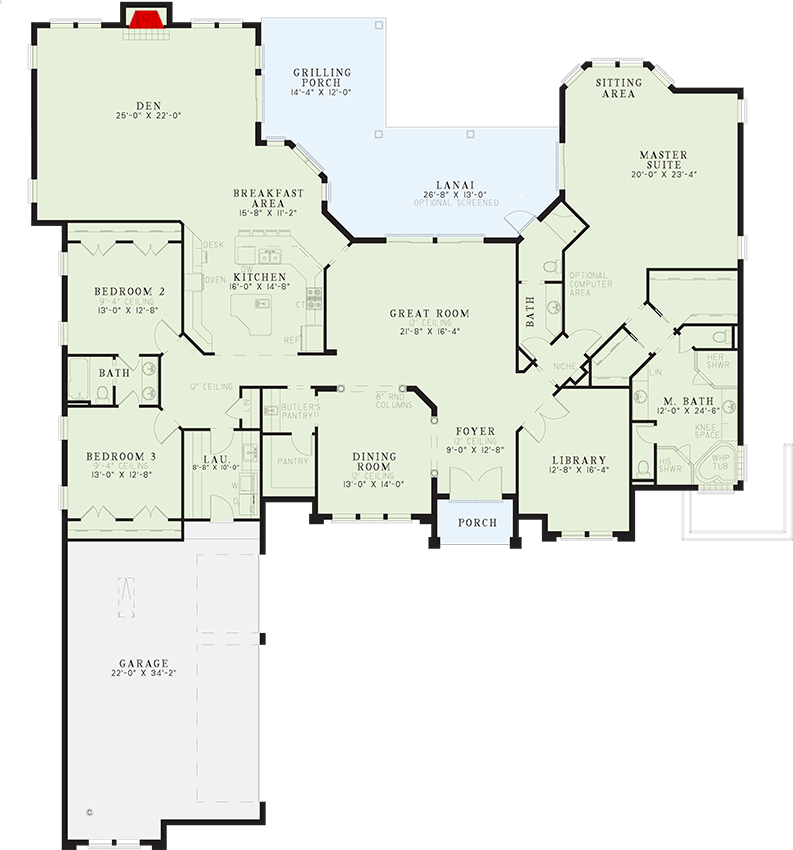

Floor Plan

Plan 59176ND

Main Level
Main Level

Plan 59176ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59176ND: Elegant Florida-Style House Plan with 3-Car Courtyard Garage - Floor Plan - Main Level - Florida-Style, Southern

Plan Details

  • This expansive 3,654 sq. ft. Florida-style house plan features three bedrooms, three full bathrooms, and an impressive 812 sq. ft. three-car courtyard entry garage, all finished with a sophisticated block and stucco exterior.
  • Upon entering, guests are welcomed into a grand foyer that immediately opens to a formal dining room, perfect for hosting elegant dinners, and a dedicated library or study, offering a quiet retreat for work or contemplation.
  • The heart of the home unfolds into an open-concept living area, seamlessly connecting a gourmet kitchen with a breakfast nook and a substantial butler's walk-in pantry, a cozy keeping room, and a spacious great room, fostering an effortless flow for daily living and entertaining.
  • The luxurious master suite, privately situated on the first floor, boasts a serene sitting area, creating a tranquil escape, while the split bedroom layout includes two additional bedrooms sharing a convenient Jack and Jill bath, ensuring comfort and privacy for all.
  • Beyond the main living areas, this plan includes a versatile den, a practical mudroom, and a main-level laundry room, enhancing both functionality and everyday convenience.
  • Embrace the outdoors with generous combined porch spaces totaling 528 sq. ft., providing ample opportunities for morning coffee or evening relaxation amidst lush landscaping.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

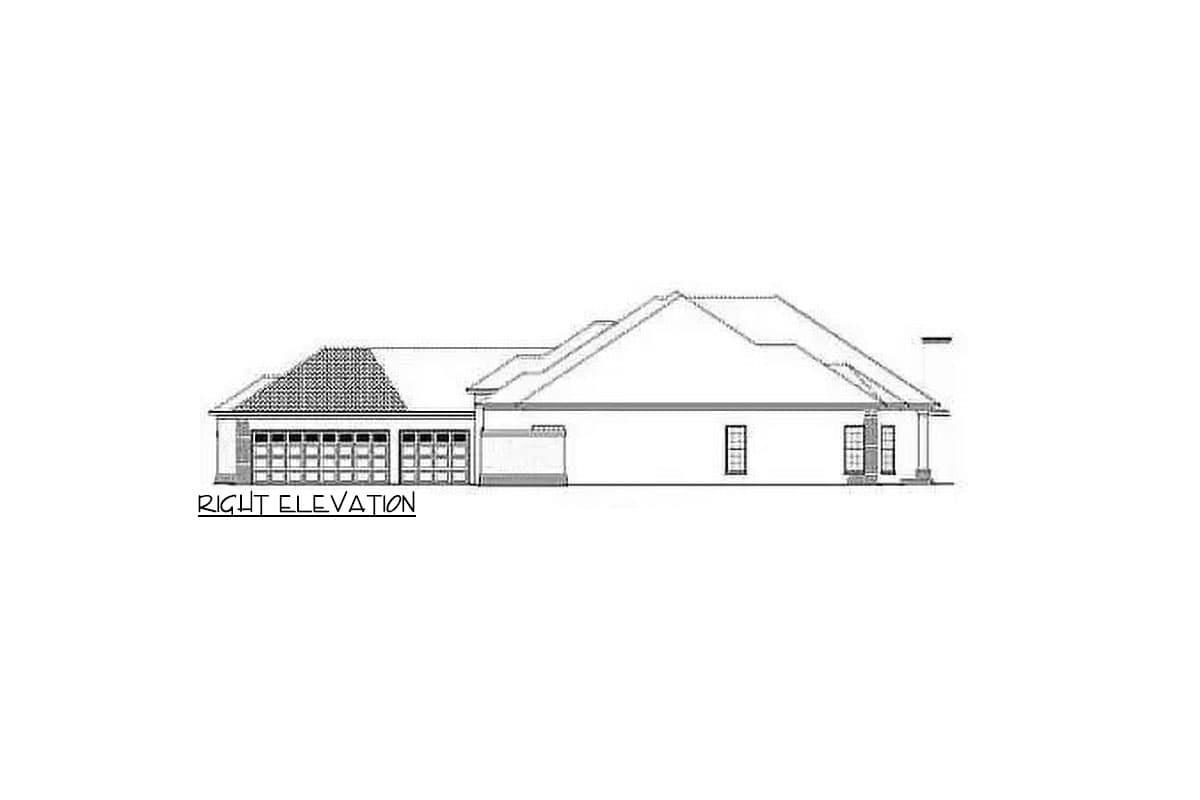

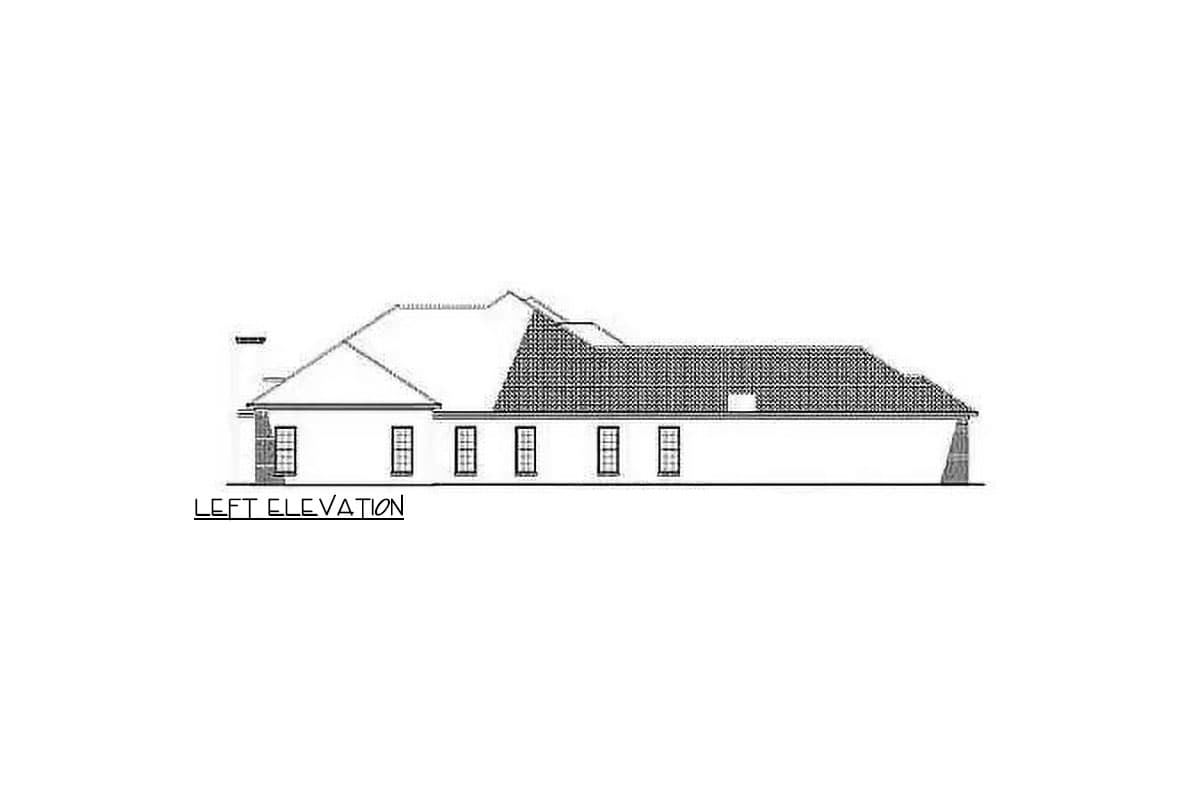

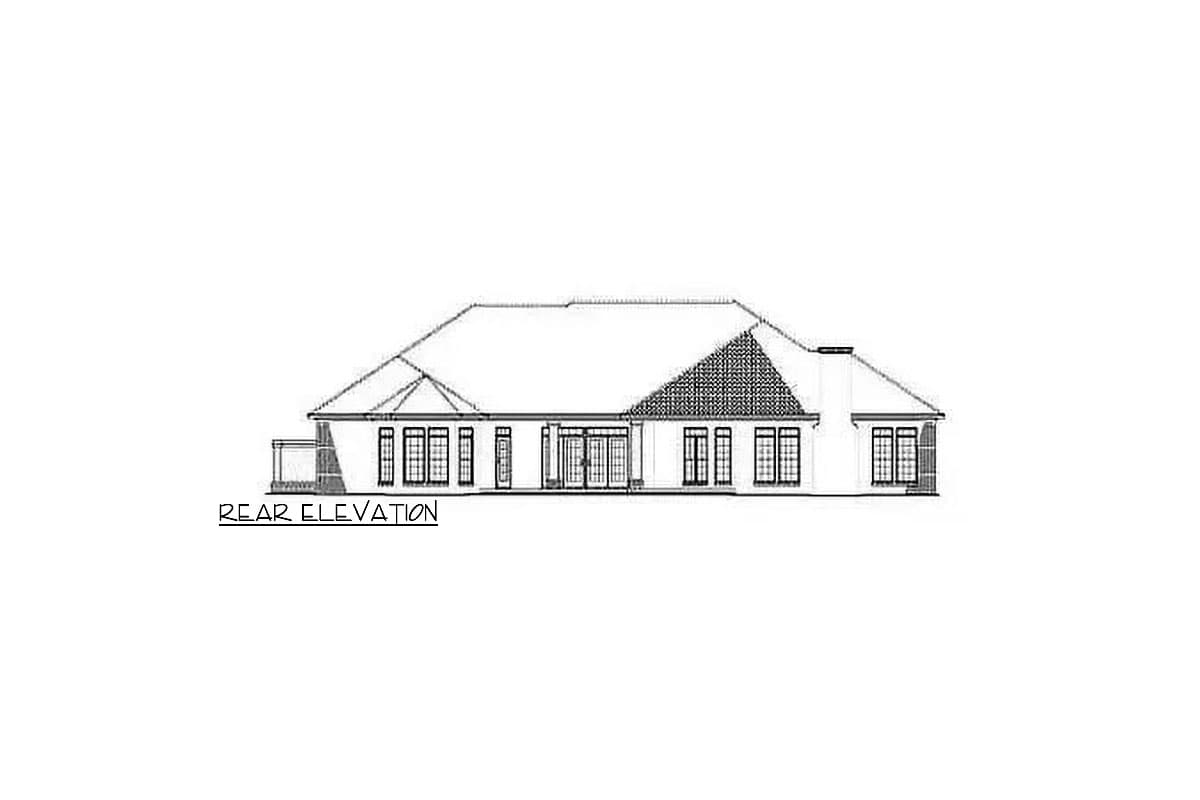

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,654 sq. ft.

1st Floor

3,654 sq. ft.

Porch, Combined

528 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

81' 7"

Depth

97' 2"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

812 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Florida-Style

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Den

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,654 sq. ft.

1st Floor

3,654 sq. ft.

Porch, Combined

528 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

81' 7"

Depth

97' 2"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

812 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Florida-Style

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Den

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Walk-in Pantry
