Plan 340050STR Elegant Luxury Farmhouse with Wraparound Porches and 2-Story Great Room

2,889 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Elegant Luxury Farmhouse with Wraparound Porches and 2-Story Great Room

Plan 340050STR

  • 2,889

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This luxury farmhouse has historical charm with its stone columns, decorative shutters, multiple gables and a gracious wraparound porch.
  • The unique and spacious interior creates an open, inviting environment. At the front of the home is the formal dining room and private study. A coffered ceiling enhances the stylish study while pillars and a stepped ceiling define the formal dining room. Conveniently located nearby is the gourmet kitchen. Decorative columns line the wraparound eating bar. Past the foyer, the open kitchen and great room have French doors that expand the living area outward. A two-story coffered ceiling soars over the common living space.
  • Tucked away on the left side is the private master suite is a quiet retreat. Sitting under a stepped ceiling, the suite features French doors that open to the back porch, a luxe bath and walk-in closet. The master bathroom boasts two vanities vanities, a walk-in shower, whirlpool tub, and a separate water closet. There is also a window seat in the master walk-in closet.
  • On the second floor are two guest bedrooms and a large bonus room. The two secondary bedrooms share a Jack and Jill bathroom that even has room for a whirlpool bathtub.
  • The bonus room also has an optional full bathroom. The bonus room is perfect for a home theater, game room or in-law suite.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

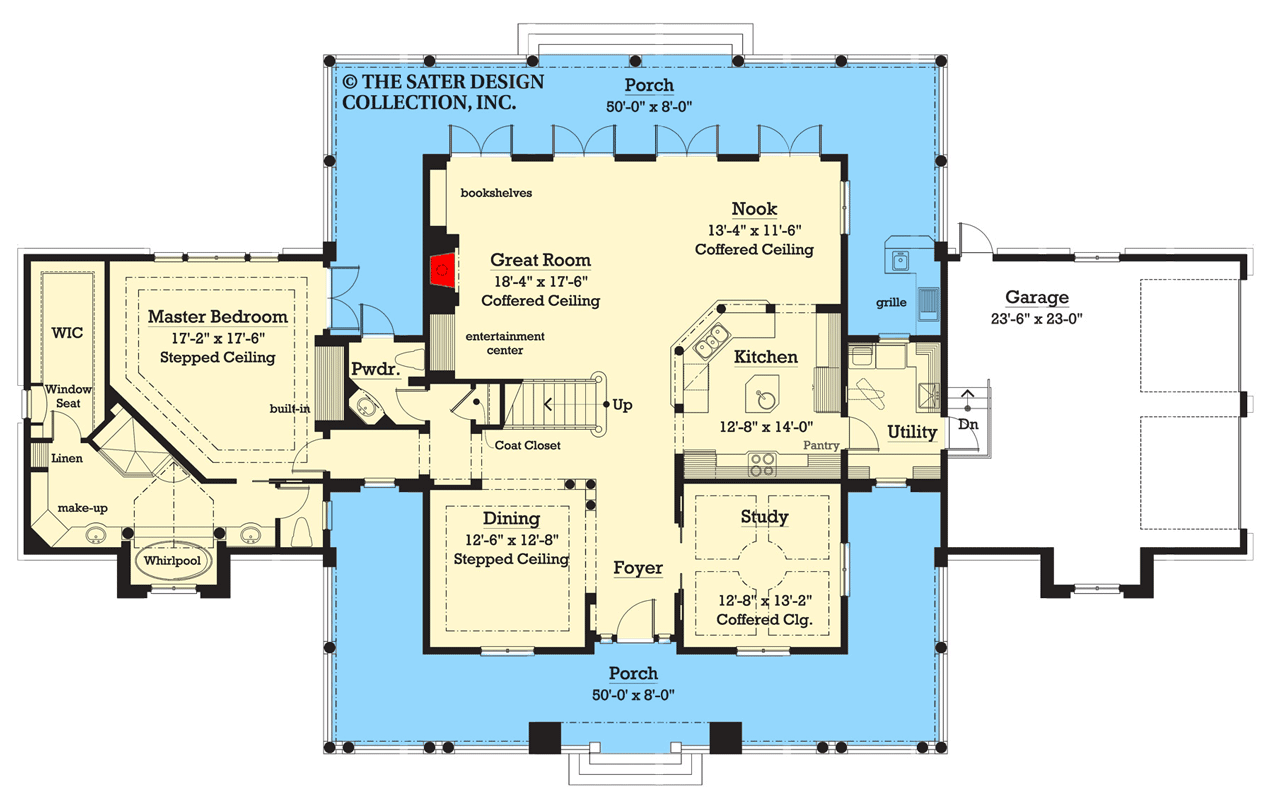

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Elegant Luxury Farmhouse with Wraparound Porches and 2-Story Great Room - 340050STR floor plan - Main Level

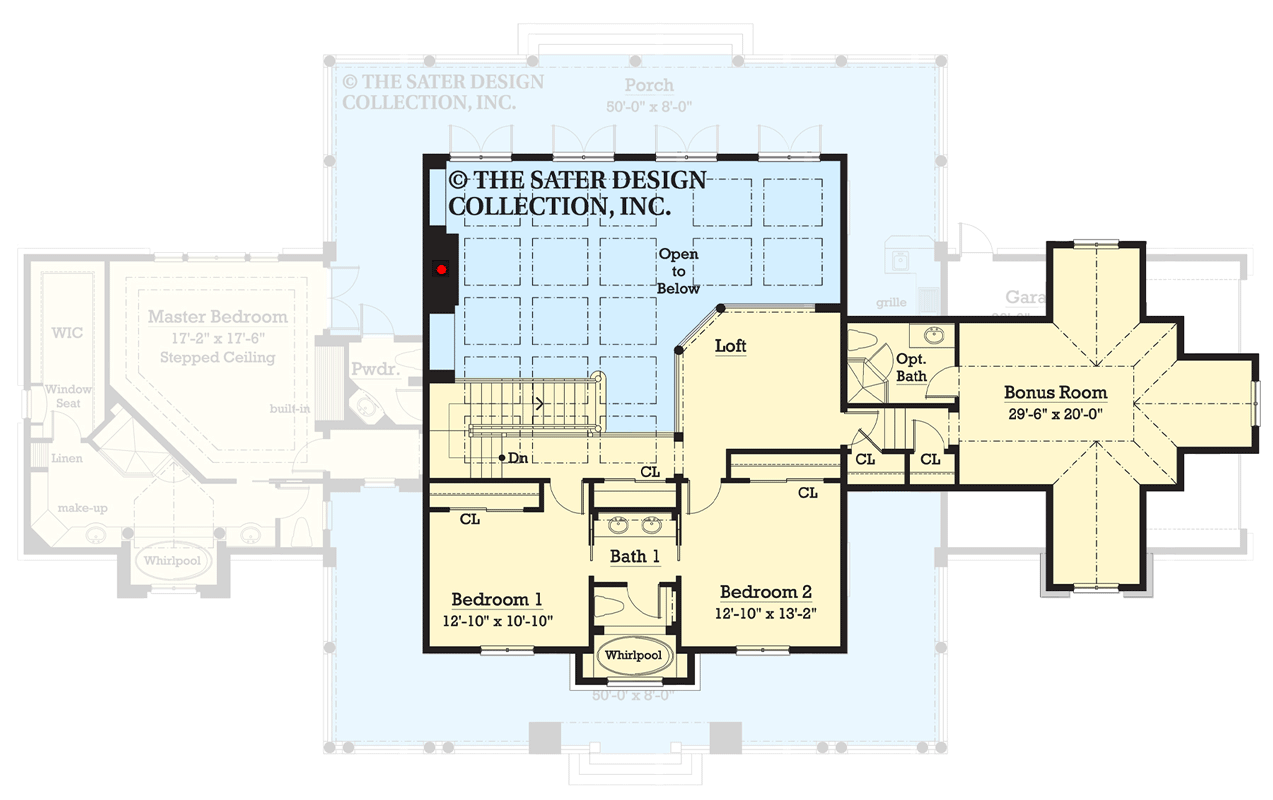

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Elegant Luxury Farmhouse with Wraparound Porches and 2-Story Great Room - 340050STR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,889 sq. ft.
  • 1st Floor: 2,151 sq. ft.
  • 2nd Floor: 738 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 0"
  • Depth: 56' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 606 sq. ft.
  • Count: 2 Cars

Architectural Style

Special features

Elegant Luxury Farmhouse with Wraparound Porches and 2-Story Great Room

  • 2,889

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,531
  • CAD - Single-Build $2,600
  • View all purchase option online

About This Plan

  • This luxury farmhouse has historical charm with its stone columns, decorative shutters, multiple gables and a gracious wraparound porch.
  • The unique and spacious interior creates an open, inviting environment. At the front of the home is the formal dining room and private study. A coffered ceiling enhances the stylish study while pillars and a stepped ceiling define the formal dining room. Conveniently located nearby is the gourmet kitchen. Decorative columns line the wraparound eating bar. Past the foyer, the open kitchen and great room have French doors that expand the living area outward. A two-story coffered ceiling soars over the common living space.
  • Tucked away on the left side is the private master suite is a quiet retreat. Sitting under a stepped ceiling, the suite features French doors that open to the back porch, a luxe bath and walk-in closet. The master bathroom boasts two vanities vanities, a walk-in shower, whirlpool tub, and a separate water closet. There is also a window seat in the master walk-in closet.
  • On the second floor are two guest bedrooms and a large bonus room. The two secondary bedrooms share a Jack and Jill bathroom that even has room for a whirlpool bathtub.
  • The bonus room also has an optional full bathroom. The bonus room is perfect for a home theater, game room or in-law suite.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,889 sq. ft.
  • 1st Floor: 2,151 sq. ft.
  • 2nd Floor: 738 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 0"
  • Depth: 56' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 606 sq. ft.
  • Count: 2 Cars
