Plan 61672UT

Elegant Ranch House Plan with 3-Car Garage and Split Bedrooms

Heated S.F.
2,602
Beds
2
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 61672UT

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 61672UT

M-F 9am-5pm EST |

1-203-761-8500

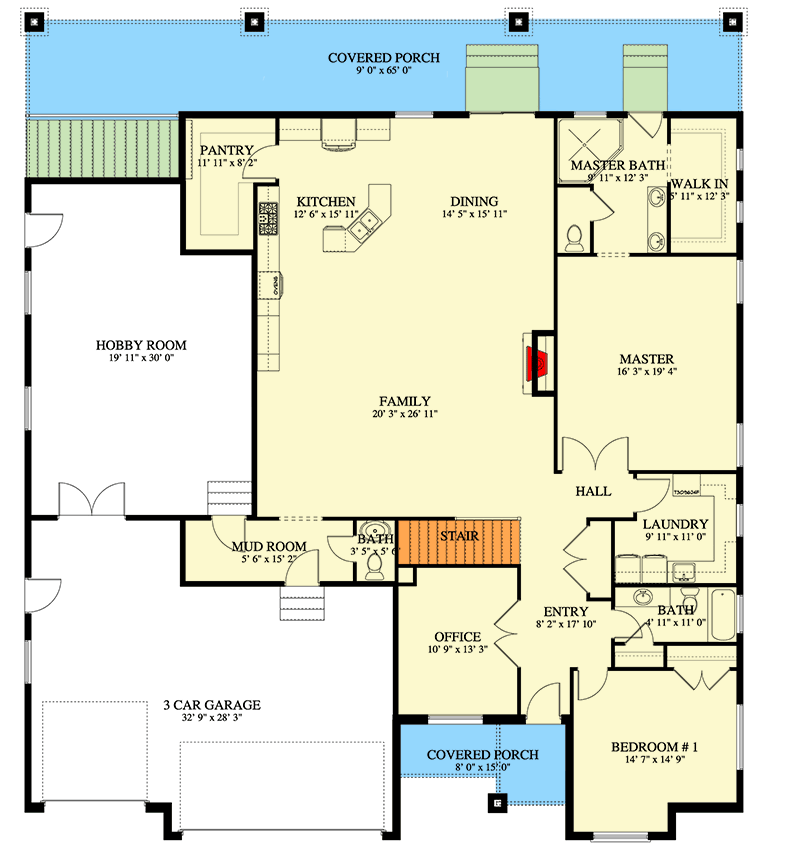

Main Level

Plan 61672UT: Elegant Ranch House Plan with 3-Car Garage and Split Bedrooms - Floor Plan - Main Level - Ranch, Traditional

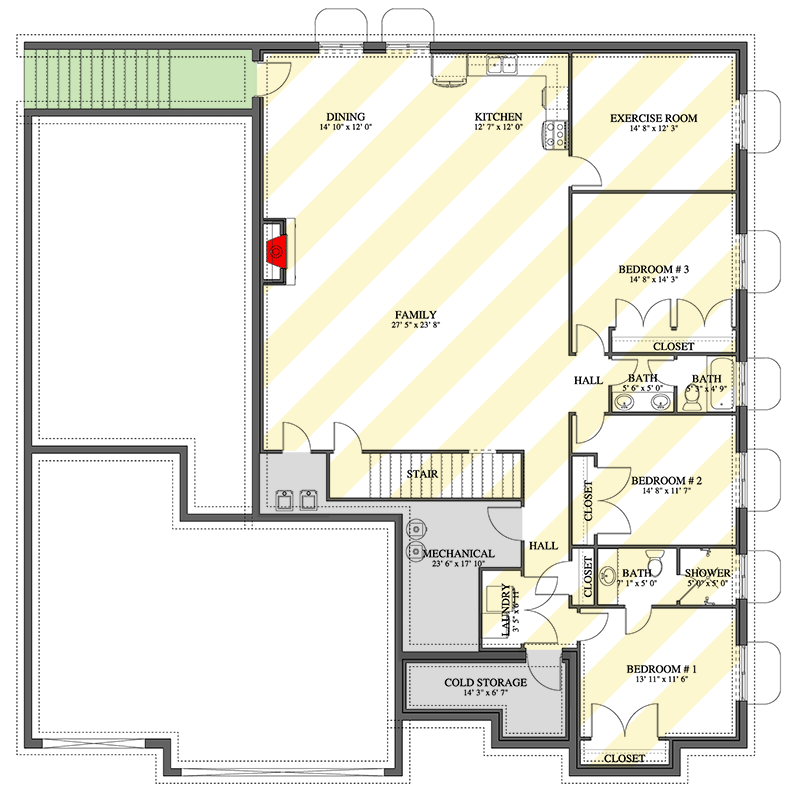

Optional Lower Level

Plan 61672UT: Elegant Ranch House Plan with 3-Car Garage and Split Bedrooms - Floor Plan - Optional Lower Level - Ranch, Traditional

Plan Details

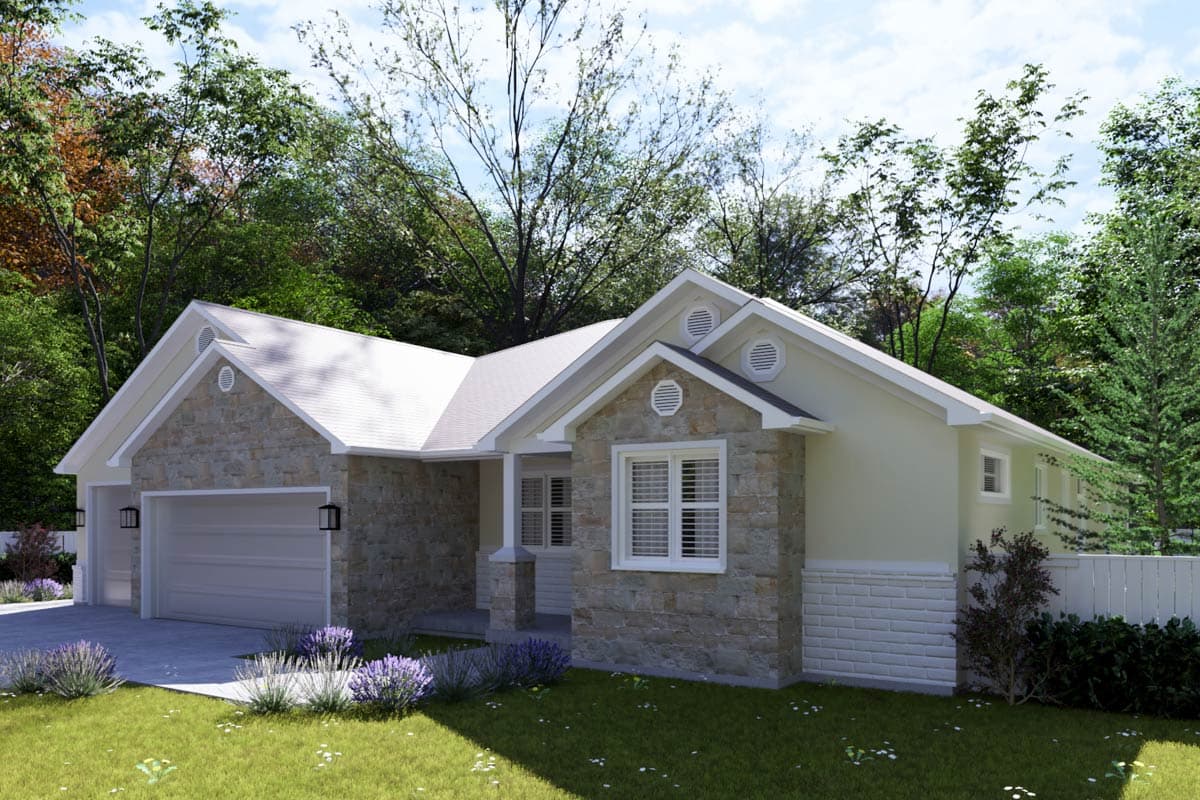

  • This inviting 2,602 sq. ft. Traditional Ranch House Plan features 2 bedrooms, 2 full bathrooms, a convenient half bath, and an attached 1,423 sq. ft. three-car garage, all wrapped in a charming stone and siding exterior.
  • Step inside to discover a thoughtfully designed main level, where a dedicated home office awaits just off the entry, perfect for productivity or quiet contemplation. The open-concept living areas flow seamlessly, creating an expansive feel.

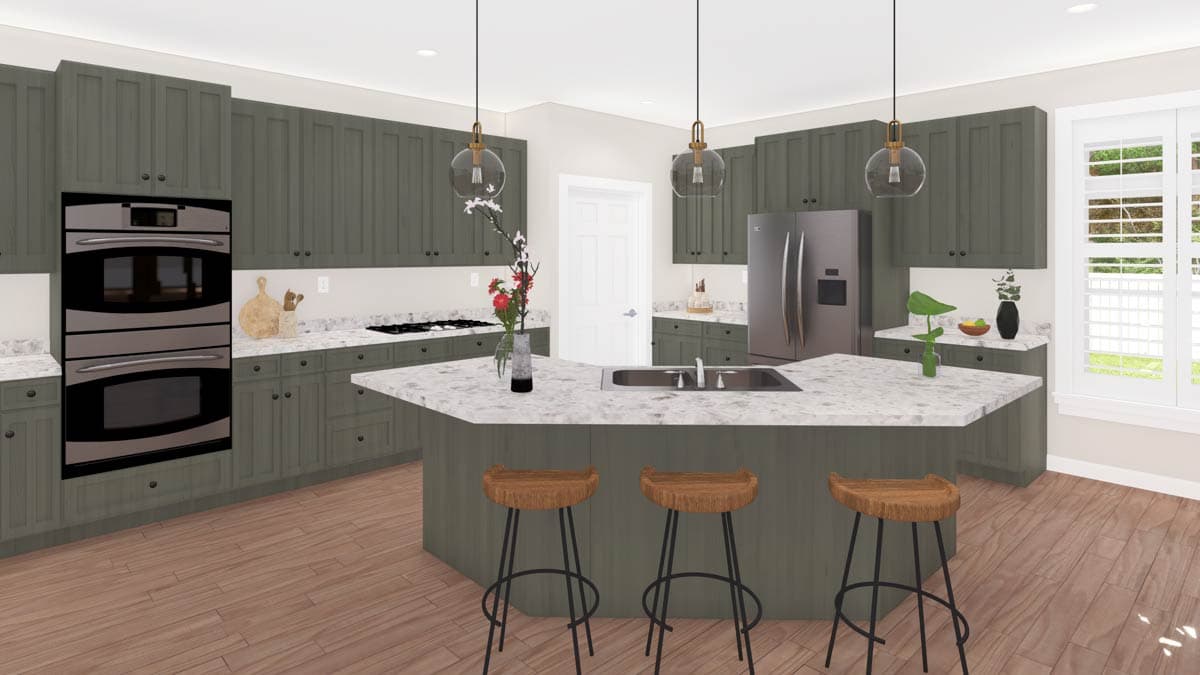

  • The heart of the home features a well-appointed kitchen, complete with a butler's walk-in pantry, providing ample storage and prep space. This culinary hub effortlessly connects to the dining area and great room, fostering an ideal environment for daily living and social gatherings.
  • The main floor boasts a private master suite, offering a serene retreat with its own luxurious bathroom. The secondary bedroom is strategically placed on the opposite side of the home, ensuring privacy and comfort for all occupants, a desirable split-bedroom layout.
  • Beyond the main living spaces, a versatile den offers additional flexibility, perhaps as a media room or cozy reading nook. A practical mudroom provides a convenient transition from the garage, keeping daily clutter at bay, while a dedicated workshop in the garage caters to hobbies and projects.
  • Enjoy the outdoors from the inviting 92 sq. ft. front porch, perfect for greeting guests, or retreat to the expansive 630 sq. ft. rear porch, an ideal setting for al fresco dining, entertaining, or simply unwinding with a morning coffee.
  • This plan offers the exciting option to finish the 2,568 sq. ft. lower level, providing vast potential for additional living space, entertainment zones, or a future laundry area, allowing for complete customization to suit your lifestyle needs.

What's Included

  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

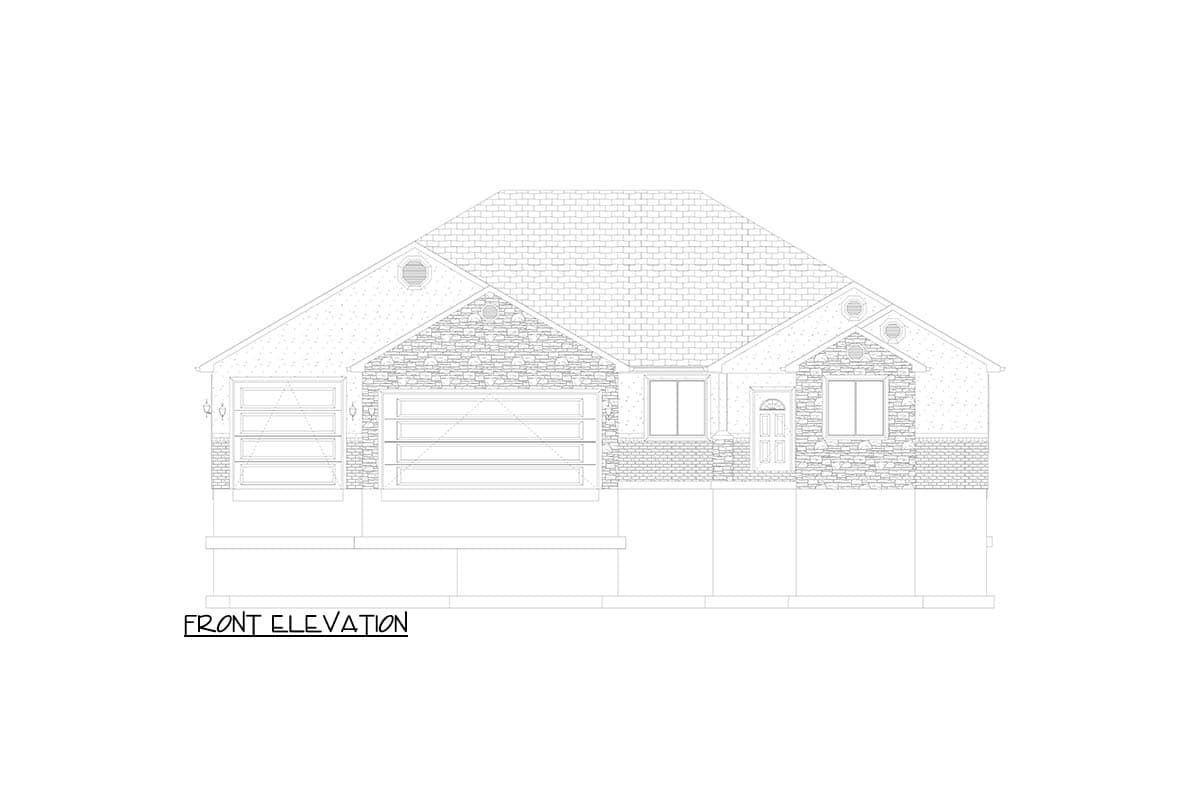

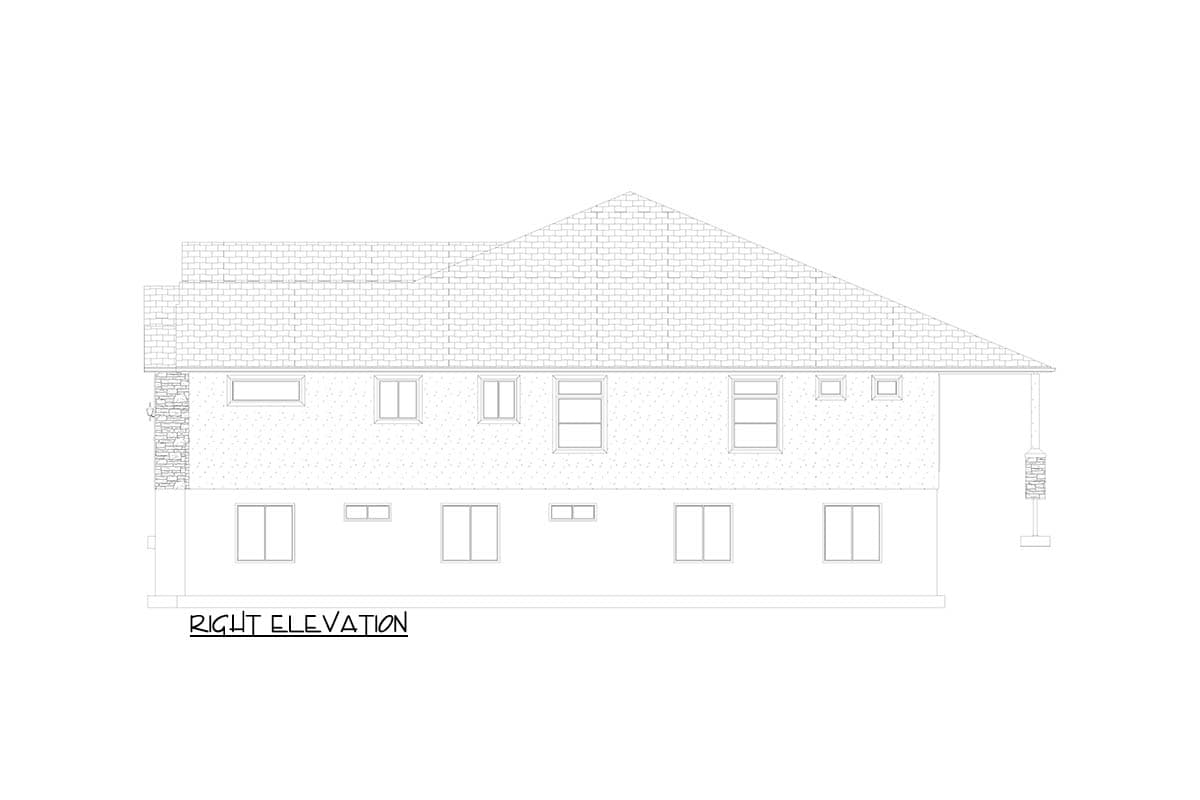

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,602 sq. ft.

1st Floor

2,602 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

630 sq. ft.

Optional Lower Level

2,568 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

66' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

1423 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Den

Home Office

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Multiple Stairs

Walk-in Pantry

Workshop
