Plan 510040WDY

Elegant Southern House Plan

Heated S.F.
2,318
Beds
3 - 4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 510040WDY

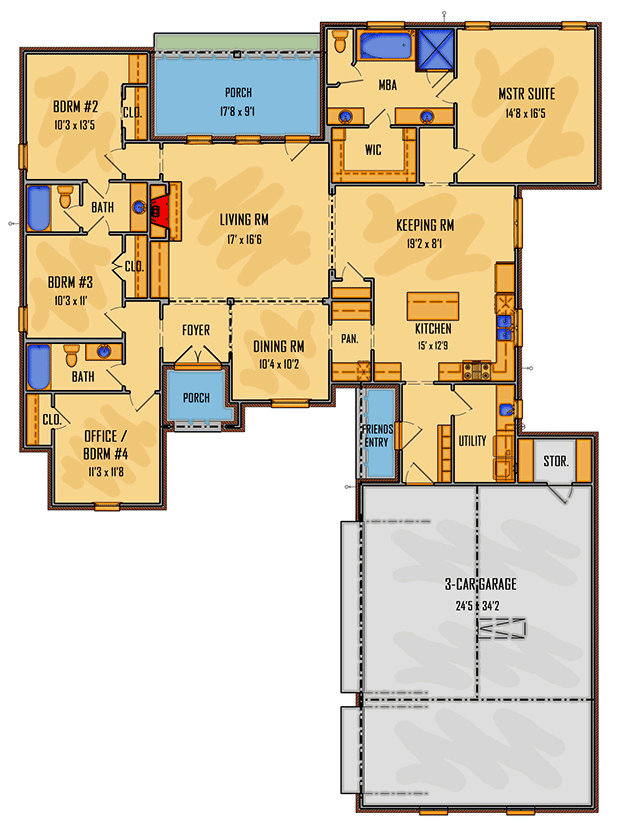

Main Level
Main Level

Plan 510040WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 510040WDY: Elegant Southern House Plan - Floor Plan - Main Level - Acadian, European, Louisiana-Style, Southern, Traditional, Transitional

Plan Details

  • With its graceful hip roof and brick siding, this one story Southern house plan is an elegant and easy-living home.
  • So convenient to live all on one floor and this home brings you an open layout too.
  • A side entry for friends and service people plus a large walk-in storage closet in the garage are welcome additions.
  • Choose from three bedrooms and a study or four bedrooms.
  • The split bedroom configuration offers privacy for the master suite located on the right at the back of the home.

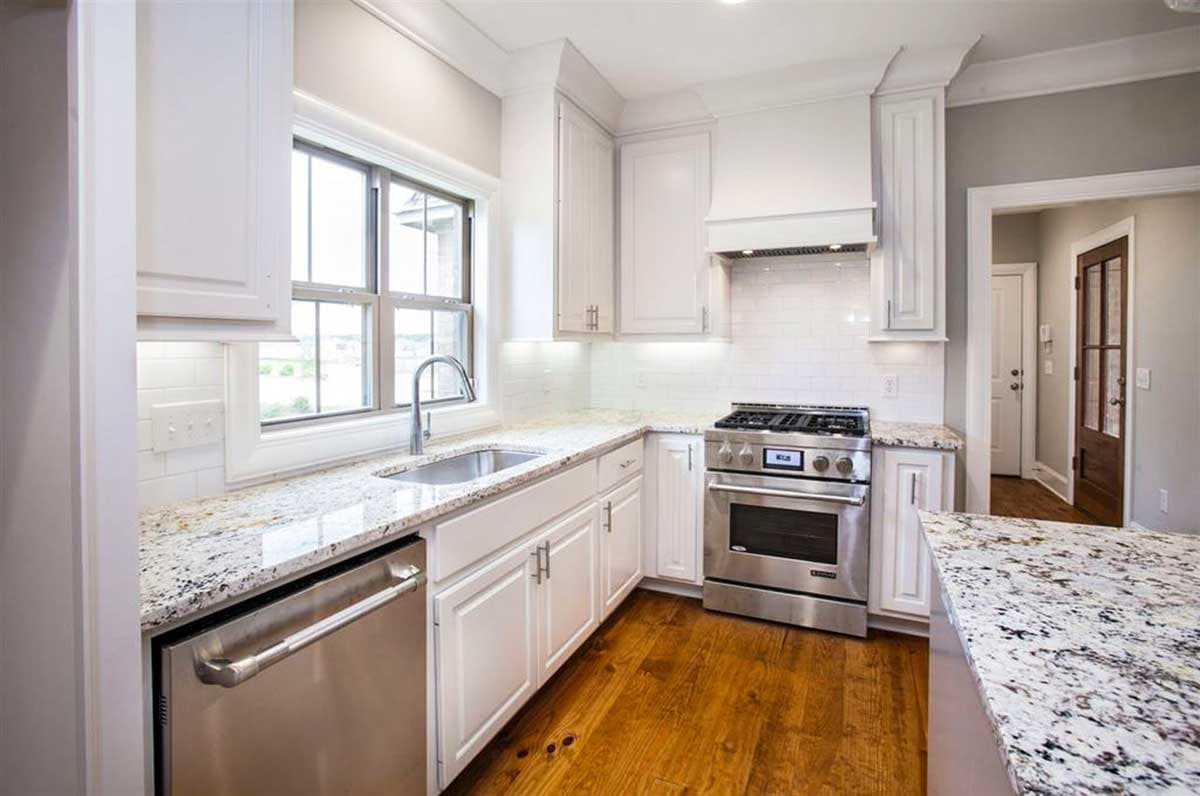

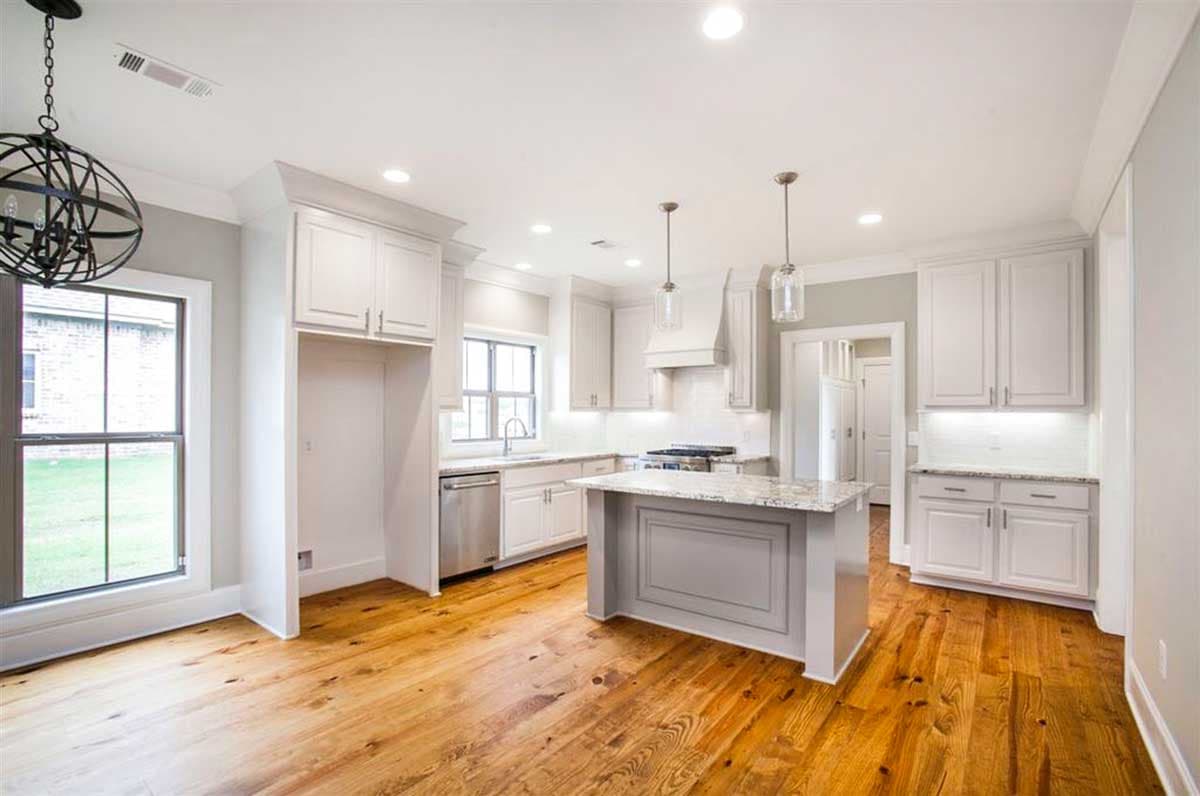

  • The walk-through pantry separates the kitchen from the formal dining room.

What's Included

This plan has 7 pages as follows:
  1.  Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

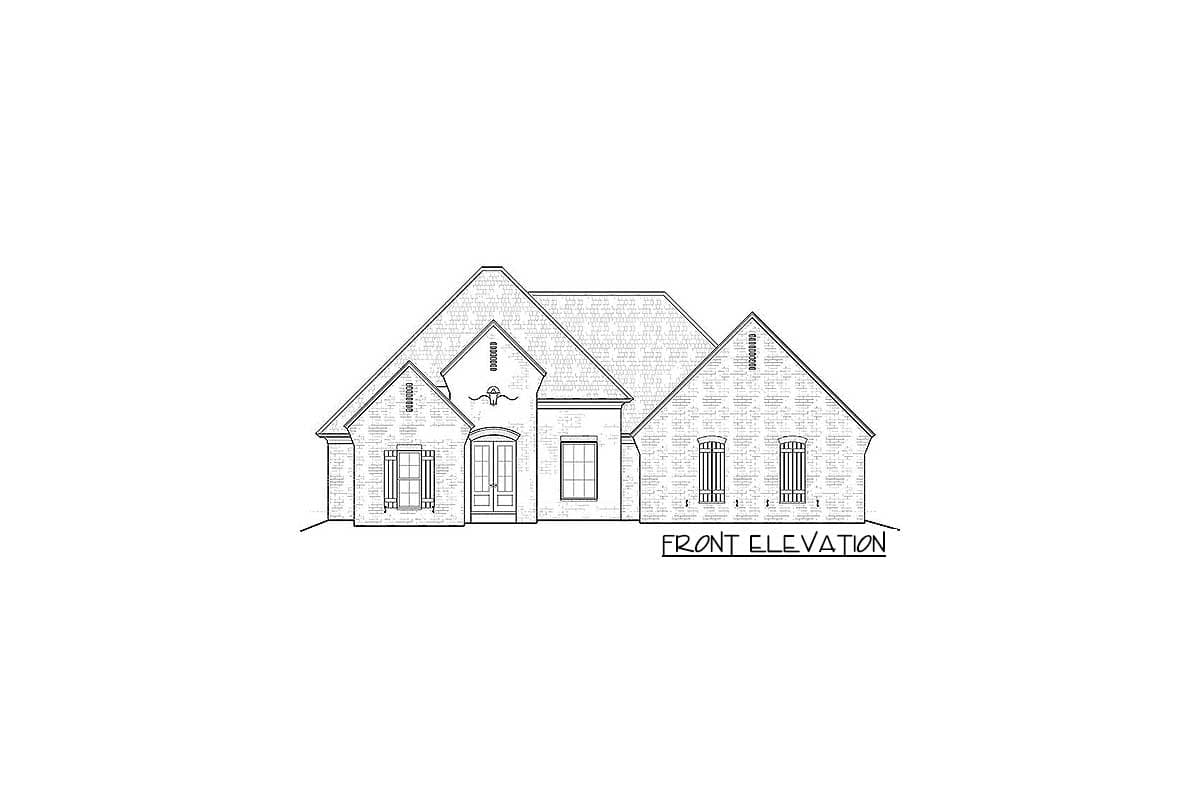

  3. All Four Exterior Elevations, Roof Plan, Ridge Detail, Upstrap Detail, Flush Rake Detail
  4. Building Section, Cornice Detail, Flashing Detail, Rafter Span Schedule, Flush Rake Detail, Beam Strap Detail
  5. Electrical Plan and Schedules
  6. Slab Foundation
  7. Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,318 sq. ft.

1st Floor

2,318 sq. ft.

Porch, Front

42 sq. ft.

Porch, Rear

161 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 0"

Depth

84' 3"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

906 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Acadian

European

Louisiana-Style

Southern

Traditional

Transitional

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
