Plan 86295HH
Elegant Southern Ranch Home
Heated S.F.
1,880
Beds
3-4
Baths
2
Stories
1
What's Included
Plan Details

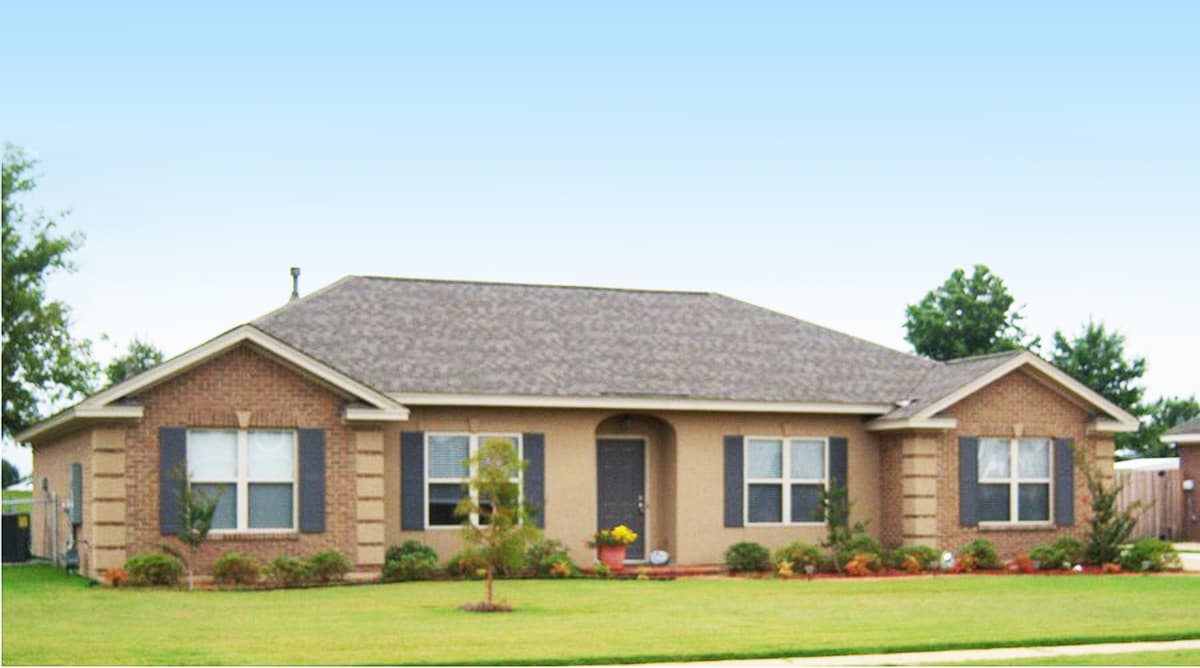

  • Split bedrooms are featured in this lovely Southern ranch house plan.
  • An elegant tray ceiling crowns the spacious living room that has a big fireplace as the focal point.
  • The kitchen and breakfast nook are kept separate from the living room to cut down on kitchen noise.
  • A large rear patio gives you outdoor space.
  • In the master suite, another tray ceiling adds a luxurious touch and the private bathroom comes with two sinks.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Elegant Southern Ranch Home

  • 1,880

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Floors

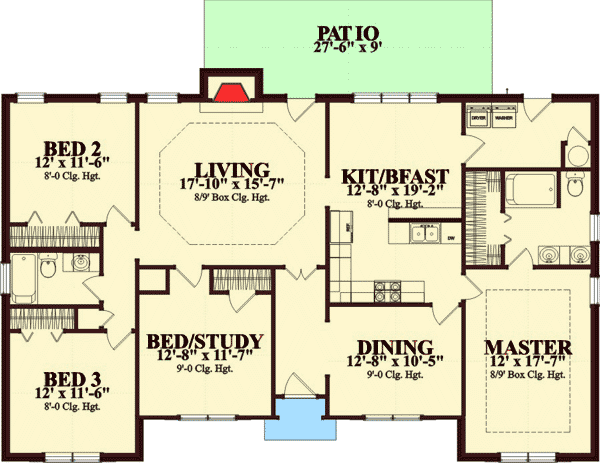

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,880 sq. ft.
  • 1st Floor: 1,880 sq. ft.

Dimensions

  • Width: 57' 0"
  • Depth: 44' 0"
  • Max ridge height: 16' 7"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
