Plan 86418HH

Elegant Traditional European House Plan with Main-Level Master and 3-Car Garage

Heated S.F.
3,166
Beds
3 - 4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 86418HH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 86418HH

M-F 9am-5pm EST |

1-203-761-8500

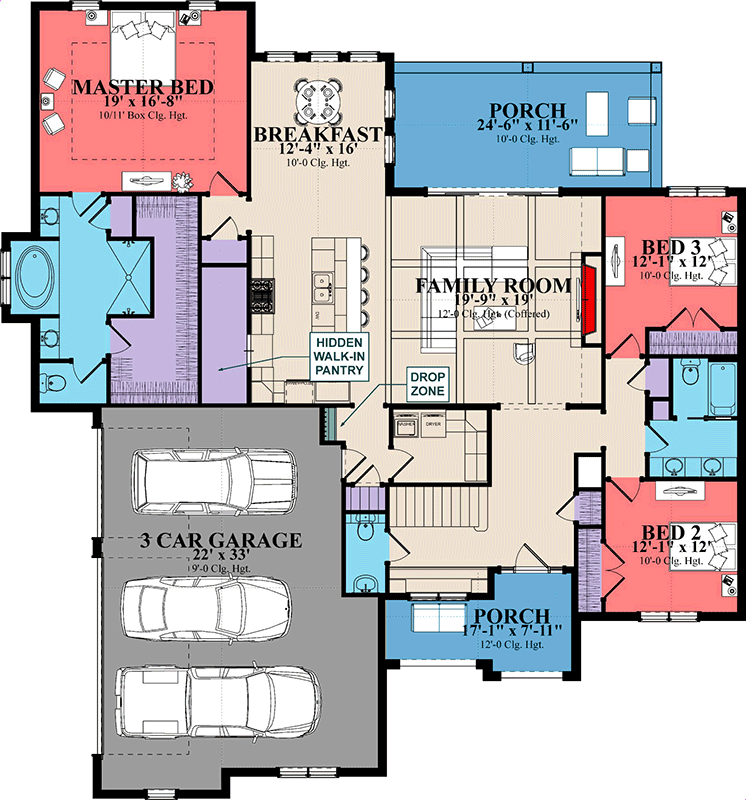

Main Level

Plan 86418HH: Elegant Traditional European House Plan with Main-Level Master and 3-Car Garage - Floor Plan - Main Level - European, Traditional

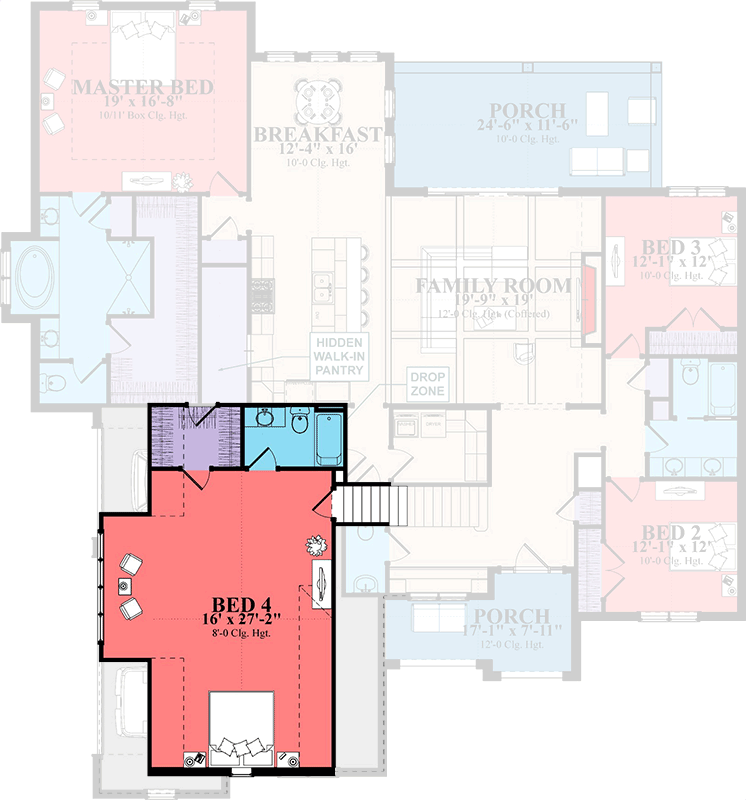

2nd Floor

Plan 86418HH: Elegant Traditional European House Plan with Main-Level Master and 3-Car Garage - Floor Plan - 2nd Floor - European, Traditional

Plan Details

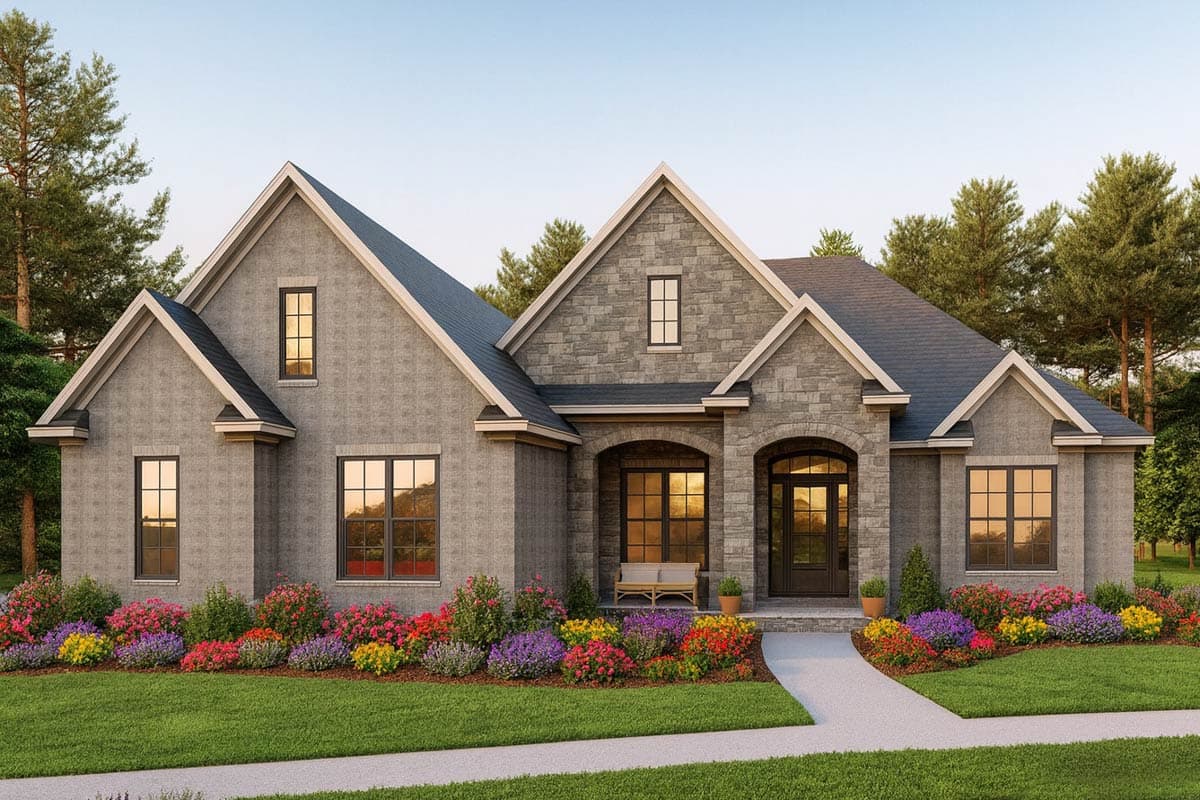

  • This stately Traditional  European-style house plan spans 3,166 sq. ft. of heated living space, offering 3 to 4 bedrooms, 3 full baths, 1 half bath, and an attached 852 sq. ft. three-car, side-entry garage.
  • Step inside this elegant home to experience the grandeur of 10-foot ceilings across the main level, creating an airy and expansive atmosphere. The thoughtful layout, featuring a convenient main-level laundry, is designed for both intimate family moments and gracious social gatherings.

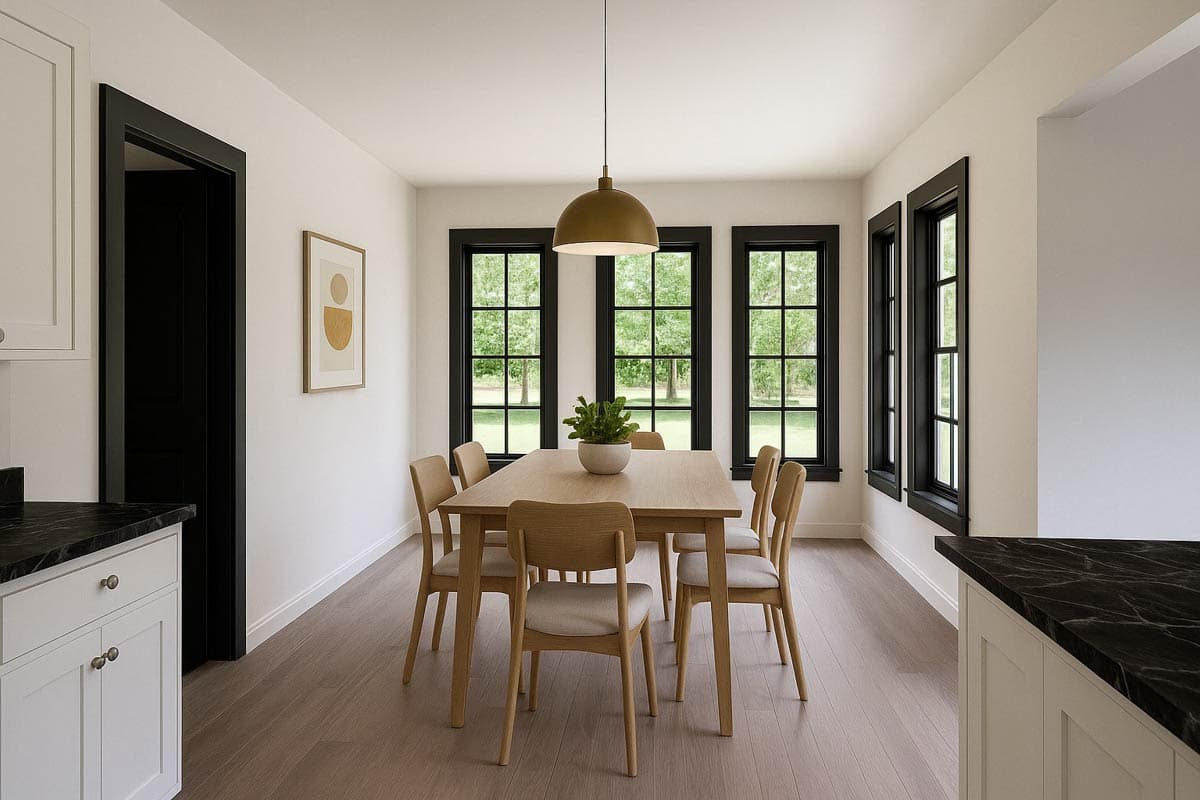

  • The heart of the home features a gourmet kitchen, complete with a sunny breakfast nook and a convenient butler walk-in pantry, perfect for culinary enthusiasts and effortless entertaining. This space flows seamlessly into adjacent common areas, fostering connection and conversation.
  • The luxurious master suite, privately situated on the first floor, offers a serene retreat with ample space for relaxation and rejuvenation. The plan incorporates a desirable split-bedroom layout, providing privacy for the primary suite while accommodating additional family members or guests.
  • Practicality meets luxury with a dedicated mudroom, providing essential organization for daily life. Upstairs, a finished bonus room on the second floor offers versatile space, ideal for a home office, media room, or a private guest suite, adding significant flexibility to the home's functionality.

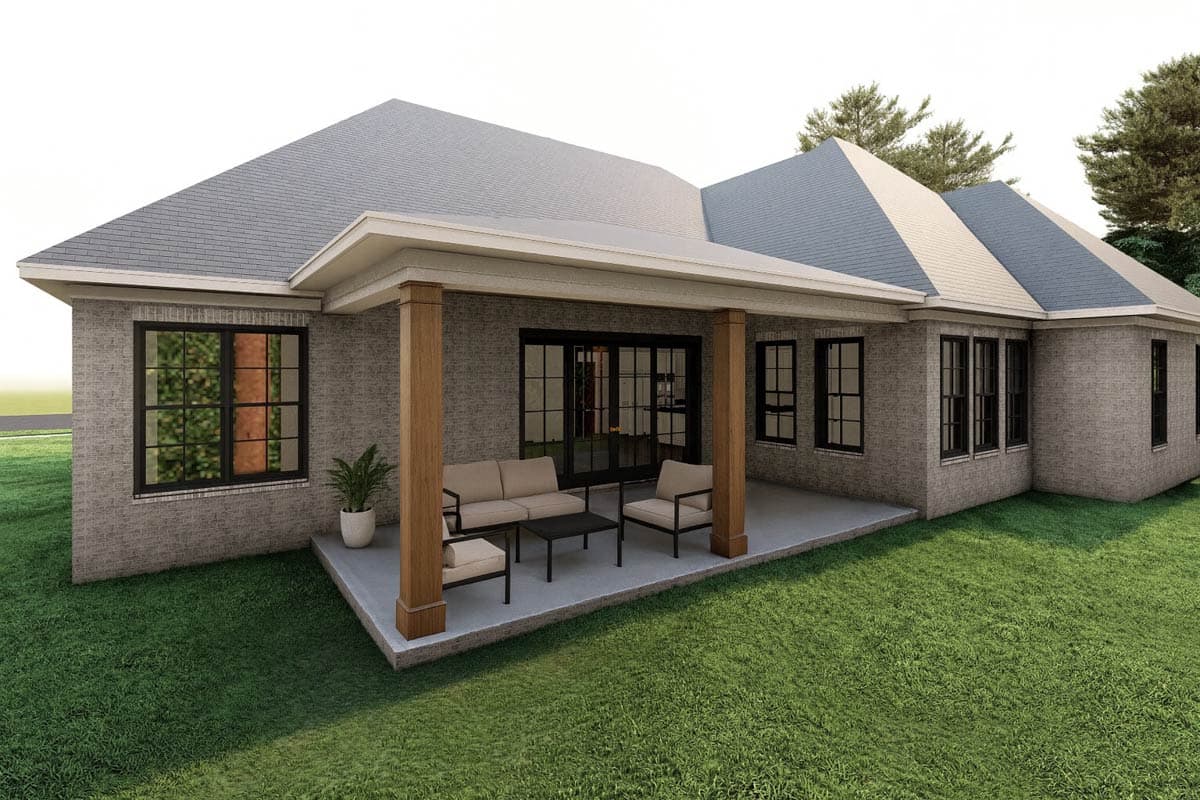

  • Embrace outdoor living on the inviting 139 sq. ft. front porch, perfect for greeting guests, or retreat to the expansive 282 sq. ft. rear porch, offering a tranquil setting for morning coffee or evening gatherings. These combined outdoor spaces provide 421 sq. ft. of covered enjoyment.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,166 sq. ft.

1st Floor

2,510 sq. ft.

2nd Floor

656 sq. ft.

Porch, Front

139 sq. ft.

Porch, Rear

282 sq. ft.

Porch, Combined

421 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

72' 0"

Garage

Type

Attached

Area

852 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Finished Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,166 sq. ft.

1st Floor

2,510 sq. ft.

2nd Floor

656 sq. ft.

Porch, Front

139 sq. ft.

Porch, Rear

282 sq. ft.

Porch, Combined

421 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

72' 0"

Garage

Type

Attached

Area

852 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Finished Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
