Plan 59449ND

Elegant Traditional Ranch House Plan with 4-Car Garage and Game Room

Name: Plan 59449ND: Elegant Traditional Ranch House Plan with 4-Car Garage and Game Room
Brand: Architectural Designs
SKU: 59449ND
Price: 1850.0 USD
Availability: InStock

Heated S.F.

5,129

Beds

Baths

4.5

Stories

Cars

Floor Plan

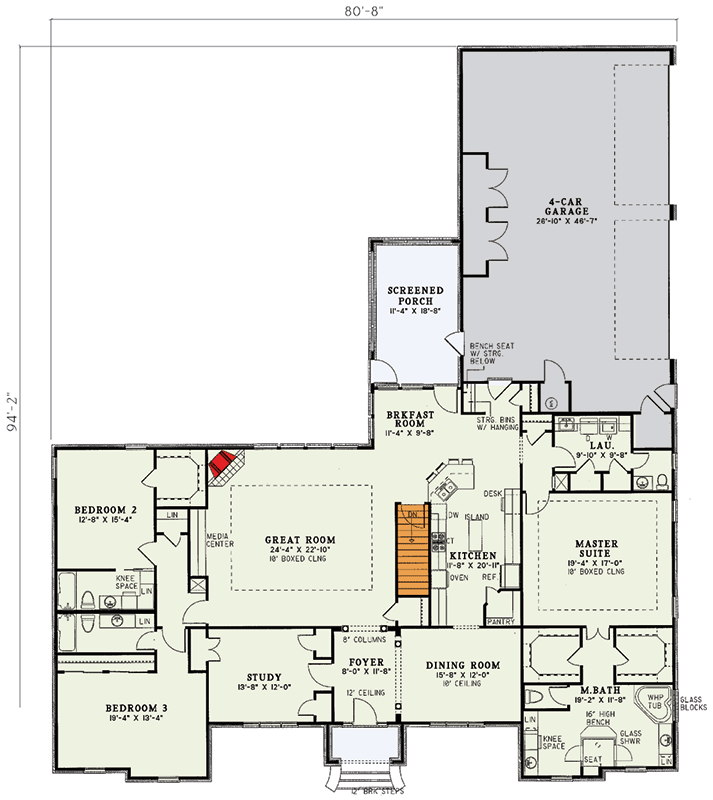

Main Level

2nd Floor

Plan Details

Discover this spacious 5,129 sq. ft. Ranch-style home featuring 4 bedrooms, 4.5 bathrooms, and a 4-car attached garage, offering both traditional charm and modern convenience.
A grand foyer welcomes you into an open layout, where a formal dining room and a cozy study flank the entrance, leading to the expansive great room with a boxed ceiling.
The main living areas boast a seamless flow, from the well-appointed kitchen with a butler's pantry to a breakfast nook opening to a screened porch—perfect for morning coffee.
The luxurious master suite is tucked away for privacy, featuring a large walk-in closet and a spa-like bathroom. Secondary bedrooms are split, providing privacy and comfort.

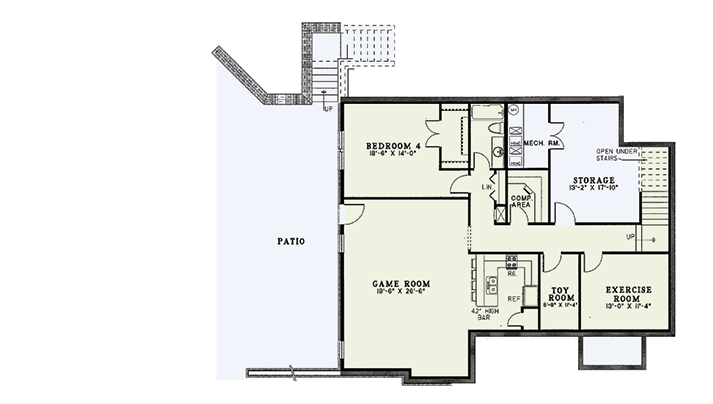

The lower level houses additional spaces, including a game room and an exercise room, ideal for leisure and fitness pursuits.
Outdoor spaces include a screened porch and a spacious patio, perfect for enjoying serene views and entertaining.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
Roof plan (bird's eye view of roof showing pitches, ridges and valleys
An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
