Empty Nester Cottage House Plan

Plan 92010VS

  • 2,753

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This cottage house plan with a first floor master bedroom suite is ideal for the couple who wants to scale down but have room for the family when they visit. A second floor that can accommodate a large family makes this ideal.
  • Stone and brick are blended to create an old world look to this charming Tudor style cottage perfect for a narrow lot development.
  • A rear entry garage helpos make this 40' wide plan fit in any neighborhood.
  • The master bedroom is located on the main floor creating the perfect empty nester plan.
  • Three feet wide doors on all first floor openings makes this ideal for the couple who wants to age in place.
  • Three full bedrooms and a study loft makes the plan perfect for a larfe family or a small one with guests.
  • A large bonus space above the garage allows for expansion. This allows for the perfect media or game room.

All plans include:

  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

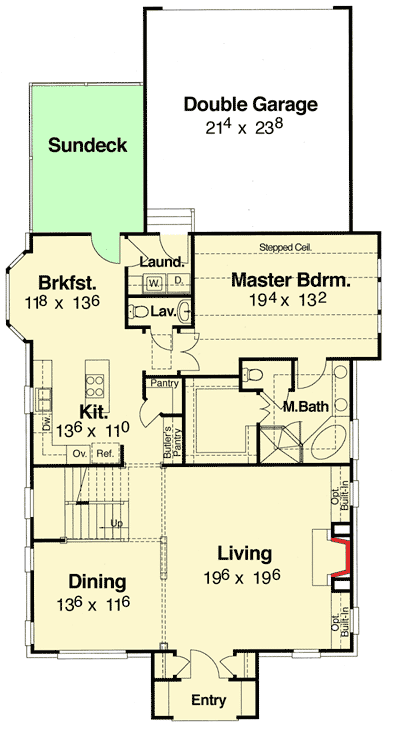

Empty Nester Cottage House Plan - 92010VS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

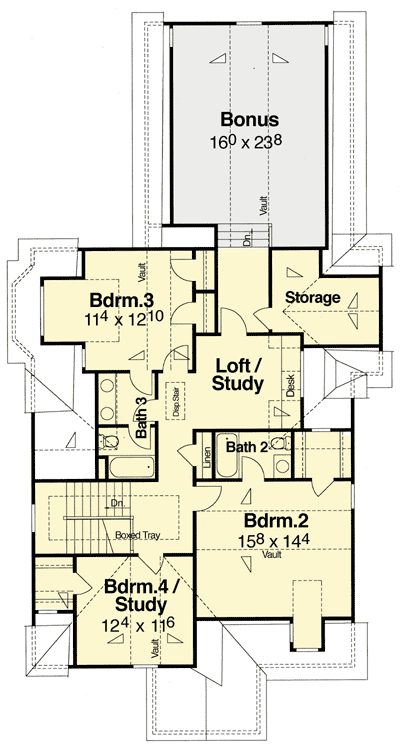

Empty Nester Cottage House Plan - 92010VS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,753 sq. ft.
  • 1st Floor: 1,622 sq. ft.
  • 2nd Floor: 1,131 sq. ft.
  • Bonus: 424 sq. ft.
  • Deck: 192 sq. ft.
  • Storage: 72 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 39' 6"
  • Depth: 76' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Empty Nester Cottage House Plan

  • 2,753

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,400
  • 5 Sets $1,550
  • PDF - Unlimited Build $2,800
  • View all purchase option online

About This Plan

  • This cottage house plan with a first floor master bedroom suite is ideal for the couple who wants to scale down but have room for the family when they visit. A second floor that can accommodate a large family makes this ideal.
  • Stone and brick are blended to create an old world look to this charming Tudor style cottage perfect for a narrow lot development.
  • A rear entry garage helpos make this 40' wide plan fit in any neighborhood.
  • The master bedroom is located on the main floor creating the perfect empty nester plan.
  • Three feet wide doors on all first floor openings makes this ideal for the couple who wants to age in place.
  • Three full bedrooms and a study loft makes the plan perfect for a larfe family or a small one with guests.
  • A large bonus space above the garage allows for expansion. This allows for the perfect media or game room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,753 sq. ft.
  • 1st Floor: 1,622 sq. ft.
  • 2nd Floor: 1,131 sq. ft.
  • Bonus: 424 sq. ft.
  • Deck: 192 sq. ft.
  • Storage: 72 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 39' 6"
  • Depth: 76' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
