Enchanting Mountain Cottage

Plan 12919KN

  • 2,614

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Special touches such as the shed dormer, decorative wood trim and some standing seam metal roofing make this Mountain home an enchanting place to live or vacation.
  • The open floor plan unites the kitchen, dining area and family room so you can always keep an eye on things from the kitchen.
  • Sliding glass doors lead out to a lovely rear deck where you can sit and enjoy the sun and views.
  • One bedroom is on the main floor with its box bay window and walk-in closet.
  • The master suite is off by itself up on the second floor, an ideal setup when you have guests visiting.
  • A fabulous lower level has the ideal in-law set up with its own kitchen and living room plus two bedrooms.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

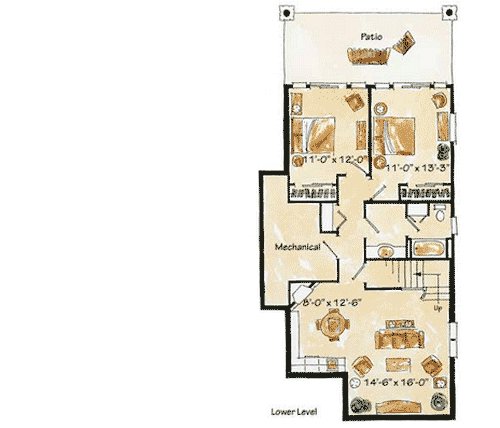

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Enchanting Mountain Cottage - 12919KN floor plan - Basement

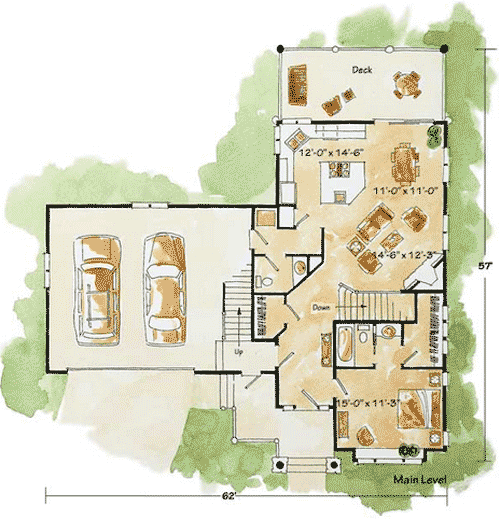

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Enchanting Mountain Cottage - 12919KN floor plan - Main Level

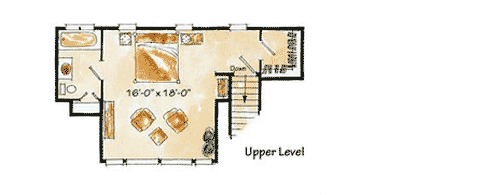

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Enchanting Mountain Cottage - 12919KN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,614 sq. ft.
  • Lower Level: 973 sq. ft.
  • 1st Floor: 1,147 sq. ft.
  • 2nd Floor: 494 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 57' 0"

Garage

  • Type: Attached
  • Area: 718 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 12' 0" Second Floor / 8' 0"

Architectural Style

Special features

Plan Collections

Enchanting Mountain Cottage

  • 2,614

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,825
  • CAD - Single-Build $3,175
  • View all purchase option online

About This Plan

  • Special touches such as the shed dormer, decorative wood trim and some standing seam metal roofing make this Mountain home an enchanting place to live or vacation.
  • The open floor plan unites the kitchen, dining area and family room so you can always keep an eye on things from the kitchen.
  • Sliding glass doors lead out to a lovely rear deck where you can sit and enjoy the sun and views.
  • One bedroom is on the main floor with its box bay window and walk-in closet.
  • The master suite is off by itself up on the second floor, an ideal setup when you have guests visiting.
  • A fabulous lower level has the ideal in-law set up with its own kitchen and living room plus two bedrooms.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,614 sq. ft.
  • Lower Level: 973 sq. ft.
  • 1st Floor: 1,147 sq. ft.
  • 2nd Floor: 494 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 57' 0"

Garage

  • Type: Attached
  • Area: 718 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 12' 0" Second Floor / 8' 0"
