Plan 33042ZRX

Southern-Style House Plan with 3 Bedrooms and Narrow Footprint - 1585 Sq Ft

Heated S.F.
1,593
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 33042ZRX

Main Level
Main Level

Plan 33042ZRX

M-F 9am-5pm EST |

1-203-761-8500

Main Level

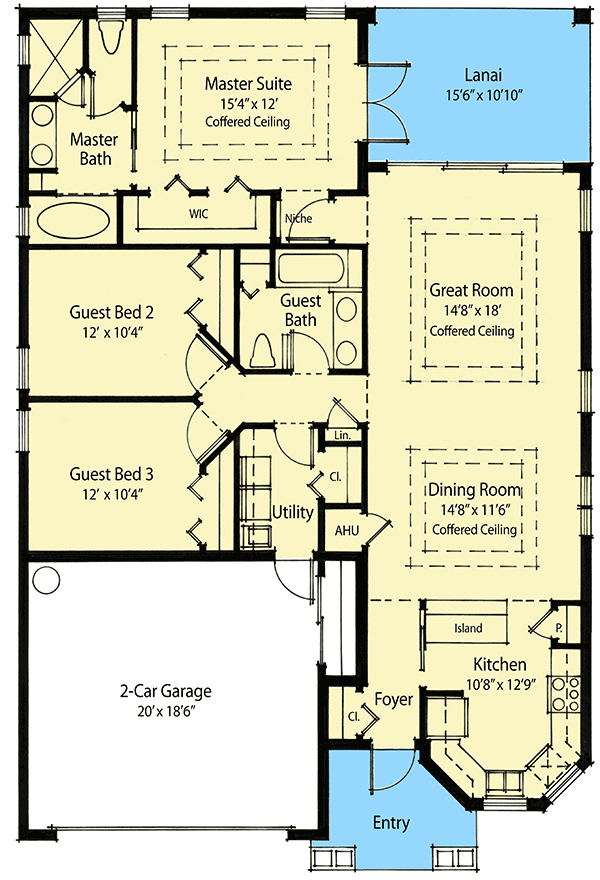

Plan 33042ZRX: Southern-Style House Plan with 3 Bedrooms and Narrow Footprint - 1585 Sq Ft - Floor Plan - Main Level - Cottage, Southern

Plan Details

  • This southern-style house plan has a narrow 39'6" wide footprint and gives you 1585 square feet of heated living space.
  • The design is full of amenities and upgrades from similar home plans and include 10' ceilings, generous guest bedrooms and a kitchen complete with a snack bar.
  • The generous rear porch can be accessed from the master bedroom with its own own lighted niche entry, walk-in-closet and opulent bath.
  • A full-size laundry room and coffered ceilings round out the home.
  • Related Plans: Flip the garage and master suite location with house plan 33036ZR. For an alternate elevations, see house plan 33043ZR and 33044ZR.

What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,593 sq. ft.

1st Floor

1,593 sq. ft.

Entry

70 sq. ft.

Lanai

167 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 6"

Depth

57' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
