Plan 33127ZR

Energy Saver House Plan

3,012 3-4 2.5 - 3.5 1-2 2
Pageloader

Energy Saver House Plan

Plan 33127ZR

  • 3,012

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Amenity rich and just the right size, these luxury Net Zero Energy homes are designed to look great in any neighborhood.
  • These super-efficient plans built to our specifications consume 50% less energy than a typical new home, which can reduce the monthly cost of home ownership by up to hundreds of dollars.
  • Energy Smart Home Plans are built with materials readily available at most builder supply stores, with skills sub-contractors already possess.
  • The well-designed floor plan features an open layout so that the kitchen and great room are open to each other.
  • Close off the den with sliding pocket doors that take up less space.
  • The dining room also has pocket doors as well as a tray ceiling.
  • The master suite is separated from the other bedrooms and boasts two large walk-in closets.
  • Bonus space on the second floor could easily become an extra bedroom with walk-in closet and private bath.
  • Related Plans: Get alternate exteriors with house plans 33126ZR and 33128ZR.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.



EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details

Floor Plan

Plan details



Energy Saver House Plan

  • 3,012

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,995
  • 5 Sets $2,095
  • CAD $2,495
  • View all purchase option online

About This Plan

  • Amenity rich and just the right size, these luxury Net Zero Energy homes are designed to look great in any neighborhood.
  • These super-efficient plans built to our specifications consume 50% less energy than a typical new home, which can reduce the monthly cost of home ownership by up to hundreds of dollars.
  • Energy Smart Home Plans are built with materials readily available at most builder supply stores, with skills sub-contractors already possess.
  • The well-designed floor plan features an open layout so that the kitchen and great room are open to each other.
  • Close off the den with sliding pocket doors that take up less space.
  • The dining room also has pocket doors as well as a tray ceiling.
  • The master suite is separated from the other bedrooms and boasts two large walk-in closets.
  • Bonus space on the second floor could easily become an extra bedroom with walk-in closet and private bath.
  • Related Plans: Get alternate exteriors with house plans 33126ZR and 33128ZR.

Floor Plans

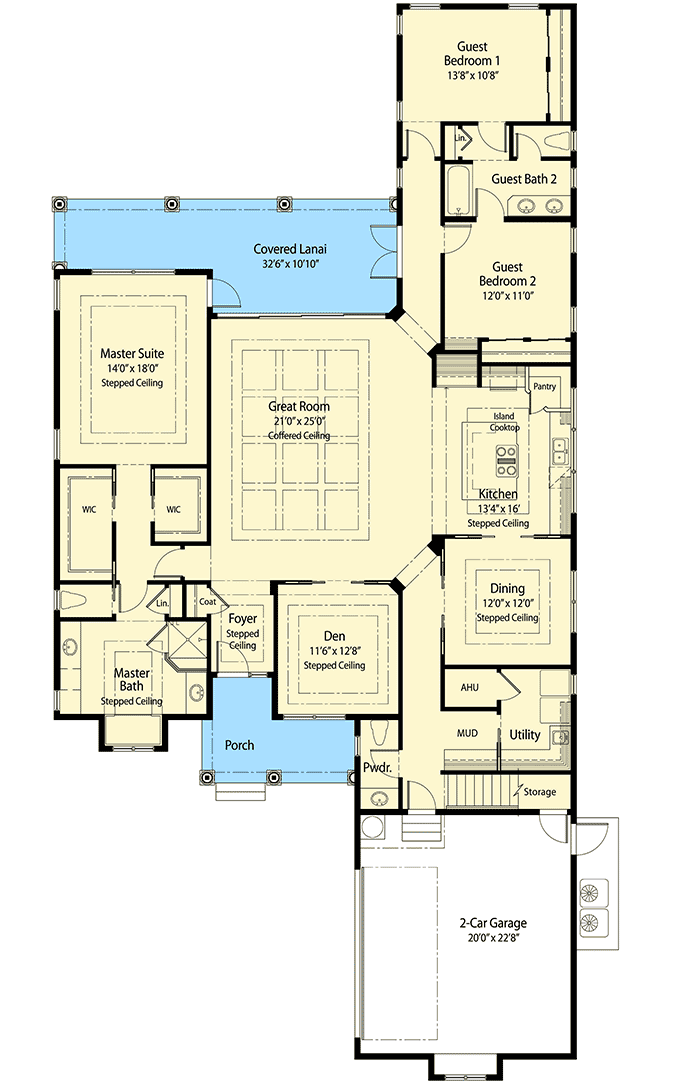

  • Main Level

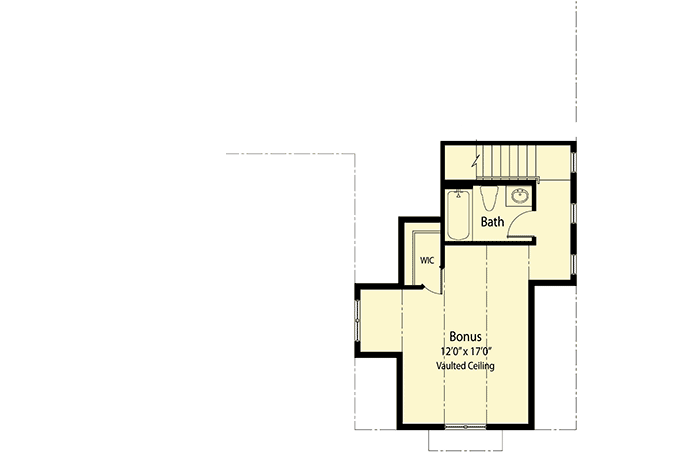

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,012 sq. ft.
  • 1st Floor: 2,605 sq. ft.
  • 2nd Floor: 407 sq. ft.
  • Lanai: 289 sq. ft.
  • Porch, Front: 110 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 6"
  • Depth: 102' 0"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Truss
