Engaging 4-Bed Traditional Plan with Side-Entry Garage

Plan 360027DK

  • 3,581

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 4 bedroom house plan - with a 5th bedroom option upstairs - is a larger version of its sister plan 36044DK, with a side-load garage. An 8'-deep front porch spans much of the front and gives you plenty of room to space out your outdoor furniture. The friend's entry (57 square feet), is 5'6" deep.
  • The foyer gives you views through to the back, including the family room with fireplace and built-ins.
  • The master is on the main level and has beautiful double tray ceilings and his and her walk-ins. It also has access to the covered rear terrace (347 sq. ft.).
  • The kitchen has great views to the back of the home and is centrally located to the formal dining room and the breakfast area. The attached deck provides space for a grilling station if desired.
  • Upstairs, there are two beds plus an optional third bedroom and media room.
  • The garage has parking for 3 cars. The doors are 9' wide and 8' tall and the garage has 9' ceilings, giving you great clearance for your vehicles.
  • Related Plans: Get a front-entry garage with house plan 36045DK and 36059DK. Get a smaller plan with 36044DK (3,277 sq. ft.) and more room with 360050DK (3,653 sq. ft.).

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

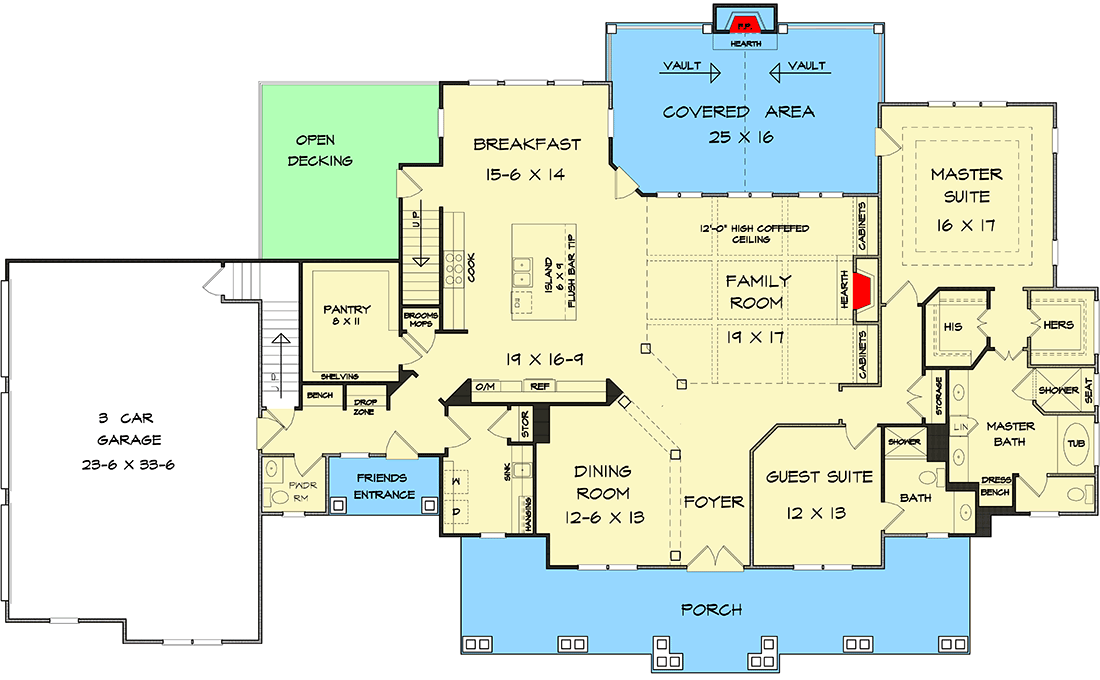

Engaging 4-Bed Traditional Plan with Side-Entry Garage - 360027DK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

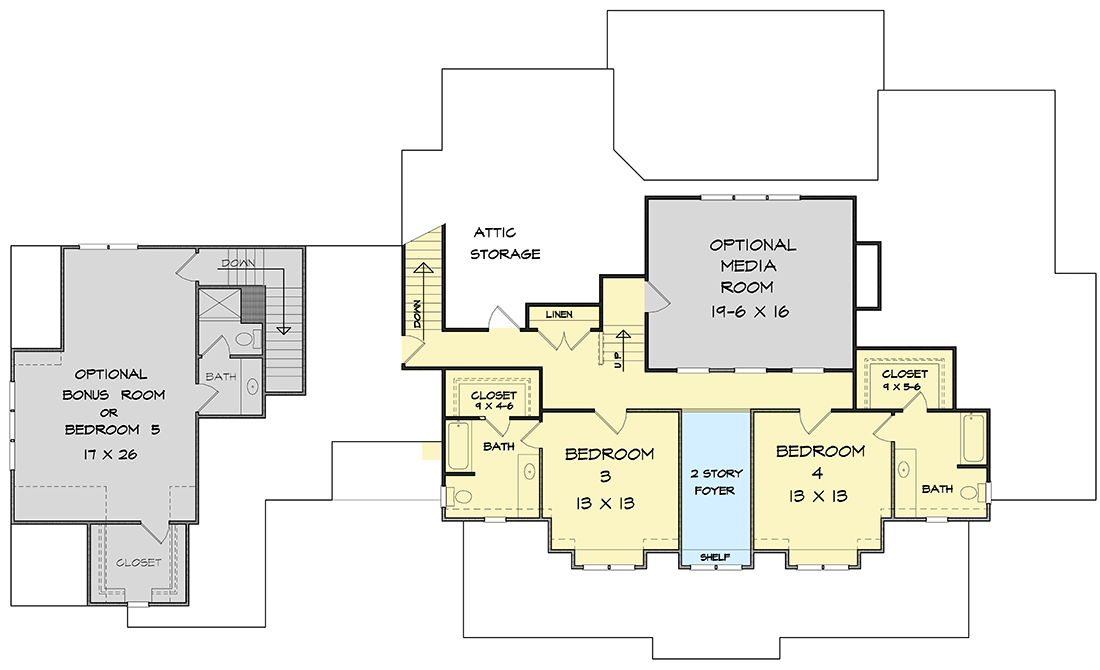

Engaging 4-Bed Traditional Plan with Side-Entry Garage - 360027DK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,581 sq. ft.
  • 1st Floor: 2,673 sq. ft.
  • 2nd Floor: 908 sq. ft.
  • Porch, Front: 451 sq. ft.
  • Bonus: 696 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 102' 4"
  • Depth: 62' 8"
  • Max ridge height: 32' 9"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Engaging 4-Bed Traditional Plan with Side-Entry Garage

  • 3,581

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,400
  • PDF Light $1,995
  • CAD + PDF - Single-Build $2,600
  • View all purchase option online

About This Plan

  • This 4 bedroom house plan - with a 5th bedroom option upstairs - is a larger version of its sister plan 36044DK, with a side-load garage. An 8'-deep front porch spans much of the front and gives you plenty of room to space out your outdoor furniture. The friend's entry (57 square feet), is 5'6" deep.
  • The foyer gives you views through to the back, including the family room with fireplace and built-ins.
  • The master is on the main level and has beautiful double tray ceilings and his and her walk-ins. It also has access to the covered rear terrace (347 sq. ft.).
  • The kitchen has great views to the back of the home and is centrally located to the formal dining room and the breakfast area. The attached deck provides space for a grilling station if desired.
  • Upstairs, there are two beds plus an optional third bedroom and media room.
  • The garage has parking for 3 cars. The doors are 9' wide and 8' tall and the garage has 9' ceilings, giving you great clearance for your vehicles.
  • Related Plans: Get a front-entry garage with house plan 36045DK and 36059DK. Get a smaller plan with 36044DK (3,277 sq. ft.) and more room with 360050DK (3,653 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,581 sq. ft.
  • 1st Floor: 2,673 sq. ft.
  • 2nd Floor: 908 sq. ft.
  • Porch, Front: 451 sq. ft.
  • Bonus: 696 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 102' 4"
  • Depth: 62' 8"
  • Max ridge height: 32' 9"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
