Plan 15878GE

English Country Manor

Name: Plan 15878GE: English Country Manor
Brand: Architectural Designs
SKU: 15878GE
Price: 1849.60 USD
Availability: InStock

Heated S.F.

5,684

Beds

3 - 5

Baths

2.5 - 5.5

Stories

Cars

Floor Plan

A Tudor-like entry evokes the grandeur of an English country manor.
Enter this master up house plan through a vaulted foyer.
On opposing sides of the foyer, coffered ceilings grace the library and a formal dining room.
The family room shares a see-thru fireplace with a covered porch and flows to the kitchen and grand room.

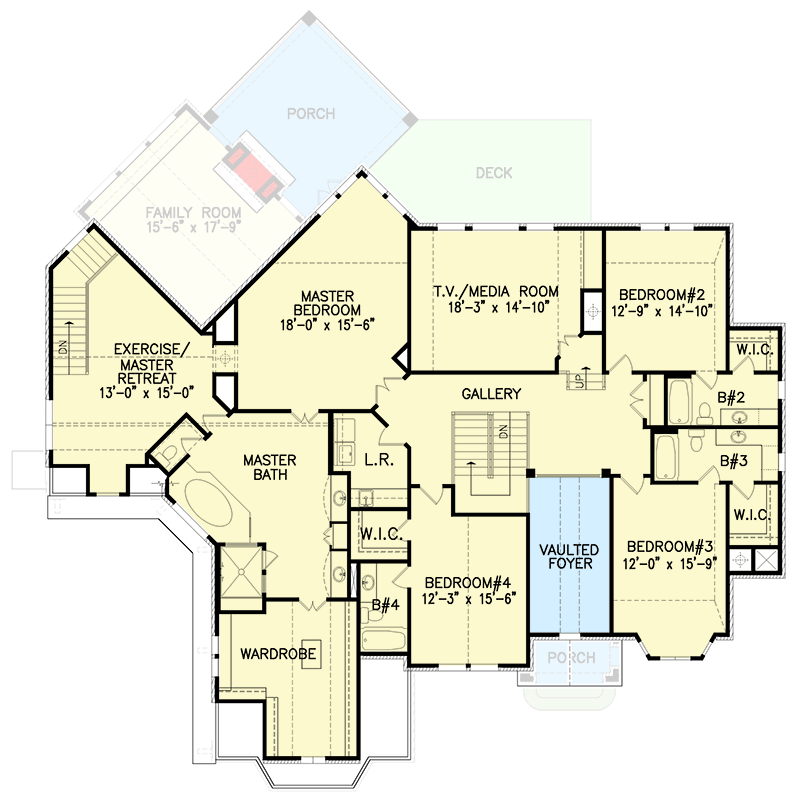

The second floor master suite has its own retreat, a luxurious bath and an expansive wardrobe room.
A media room and three additional bedrooms with private bathrooms complete this home.

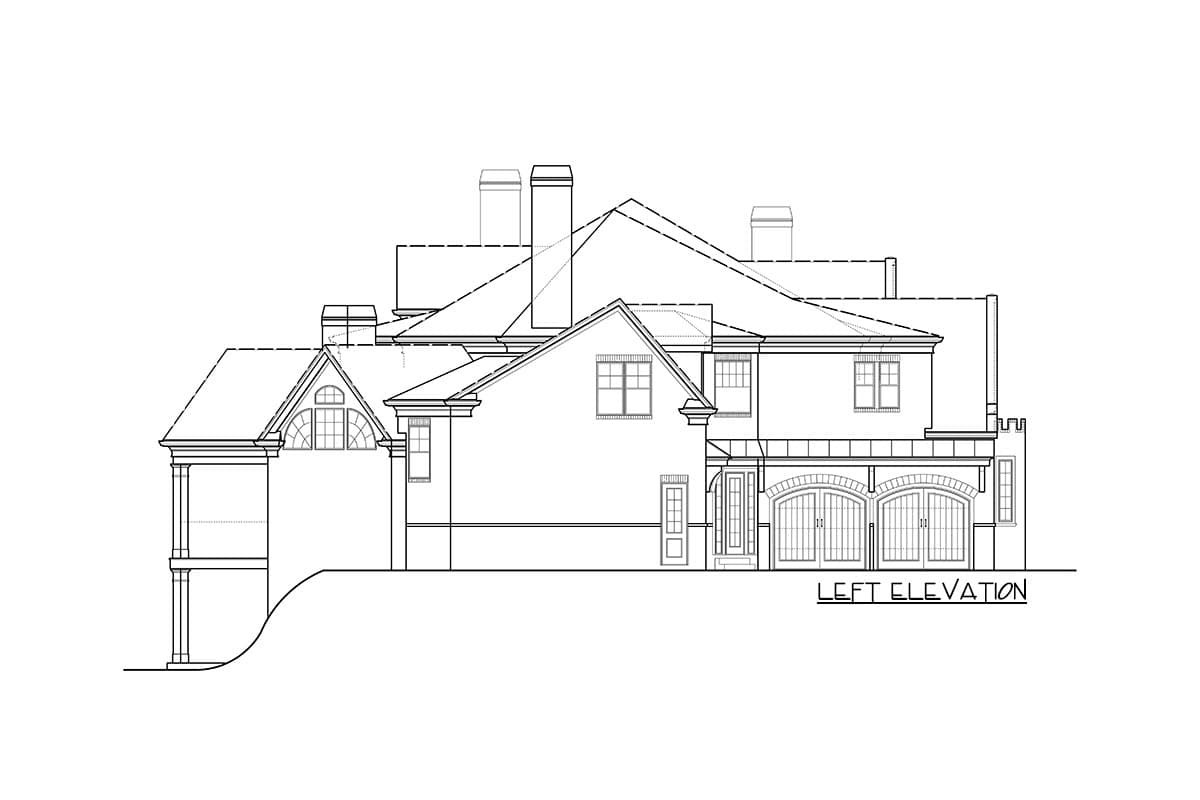

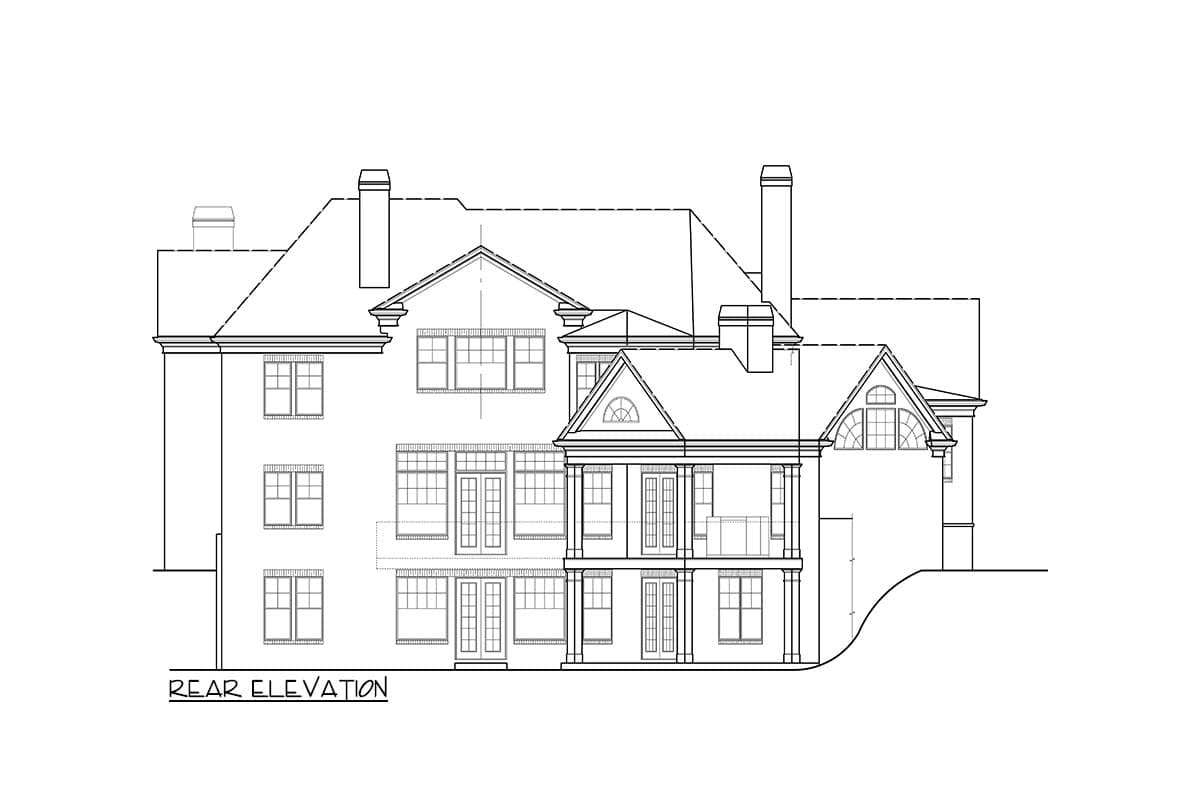

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

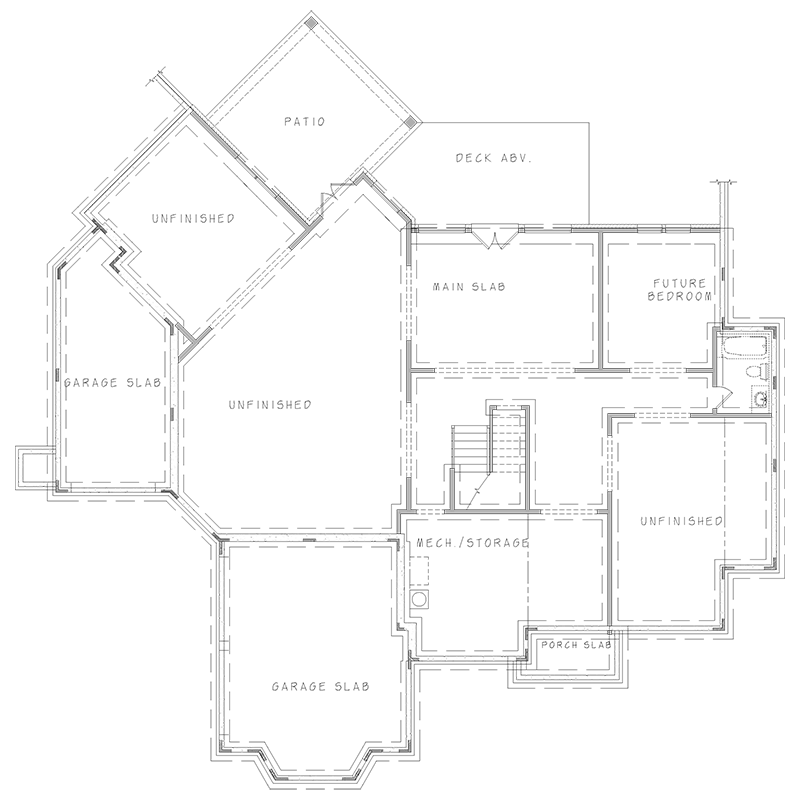

Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

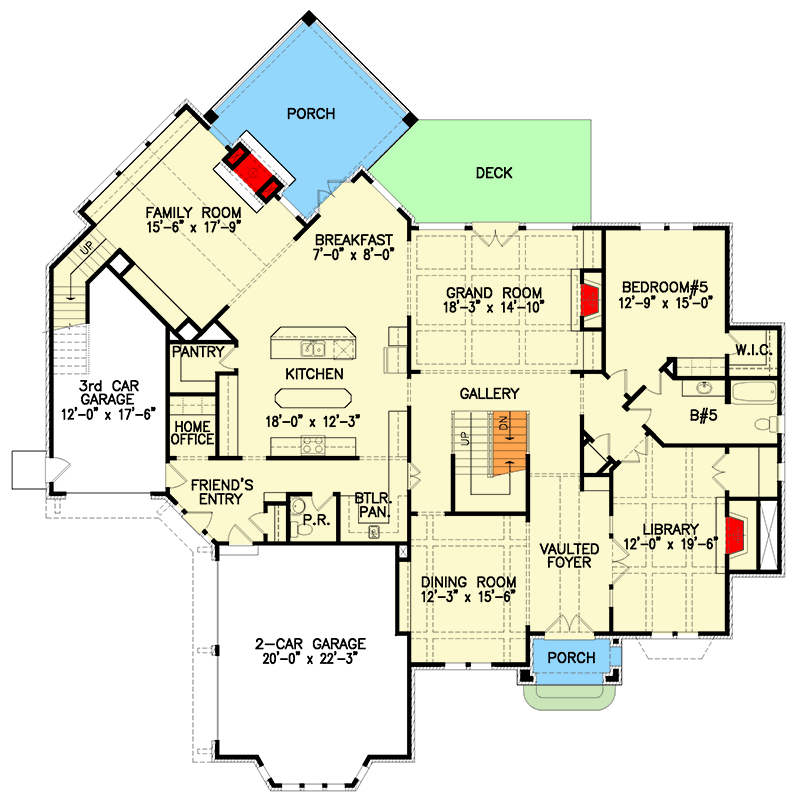

Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
