Plan 93019EL
EXCLUSIVE
English Manor Tudor Style Home
Heated S.F.
4,818
Beds
5
Baths
5.5
Stories
2
Cars
4
What's Included
Plan Details
  • You’ll love the classic exterior appearance of this English Manor Tudor style home.
  • Inside, you’ll find an attractive open floor plan that features five suites, including a downstairs master suite with his and her’s walk-in closets and a spacious master bath with a walk-in shower.
  • Other popular features in this home include a wine cellar, a study, a mud room, an open terrace and outdoor living space in back, and a large game room with a wet bar upstairs.
  • There are two garages with 2-car dimensions.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation

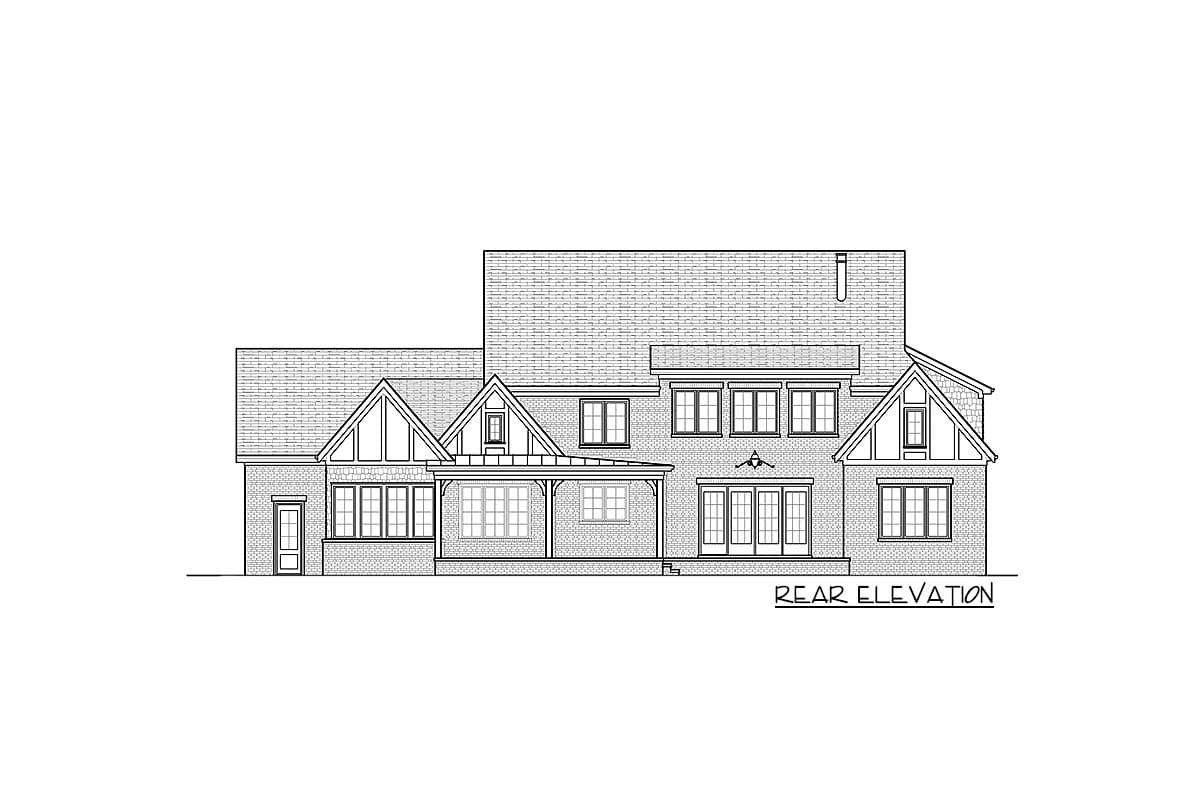

  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

English Manor Tudor Style Home

  • 4,818

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

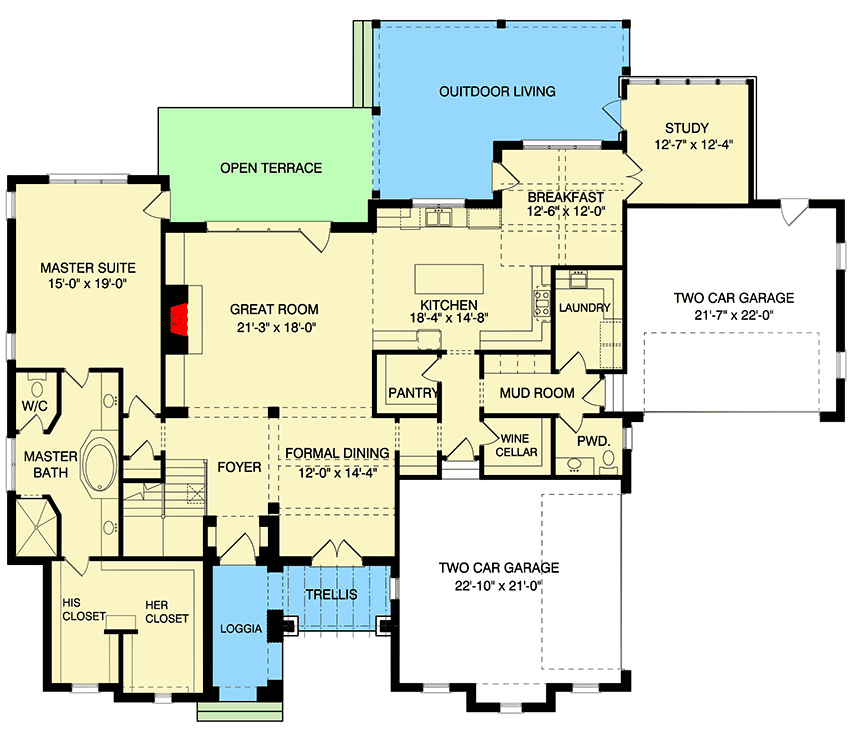

  • Main Level

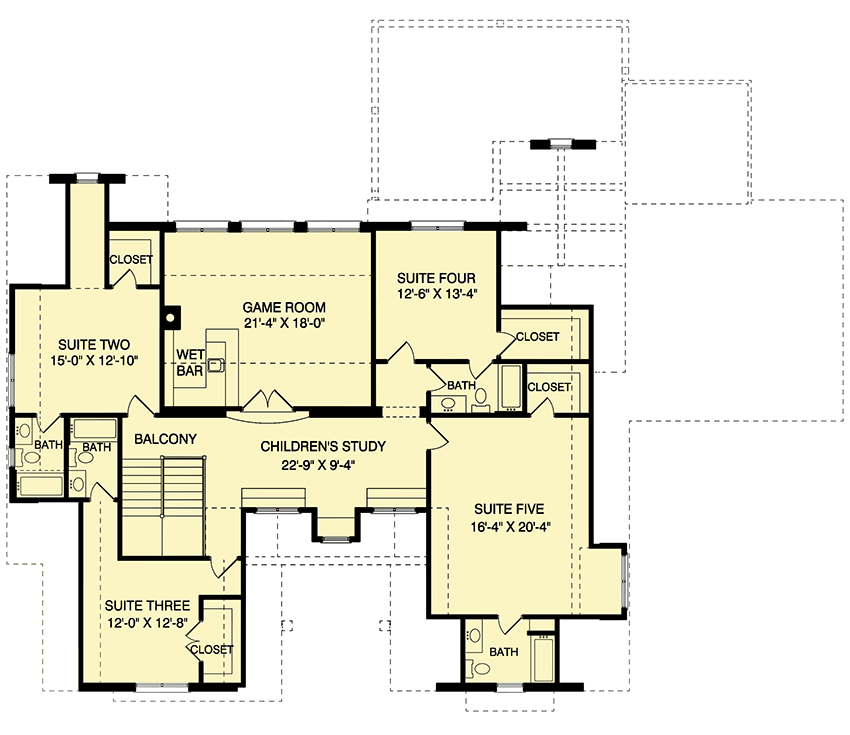

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,818 sq. ft.
  • 1st Floor: 2,628 sq. ft.
  • 2nd Floor: 2,190 sq. ft.

Dimensions

  • Width: 85' 9"
  • Depth: 70' 10"
  • Max ridge height: 35' 7"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1052 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Secondary Pitch: 14 on 12
