English Tudor Craftsman House Plan

Plan 93046EL

  • 2,226

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • This English Tudor Craftsman style house plan offers you a nice open floor plan with the main entertaining areas on the main floor.
  • The master suite is located on the second floor with a walk-in closet as well as the other two suites.
  • The laundry is also located on the second floor for easy access to the bedrooms.
  • This plan offers an optional third floor plan with a game room and 1/2 bath upstairs.
  • Related Plan: Get an alternate exterior with house plan 93047EL.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

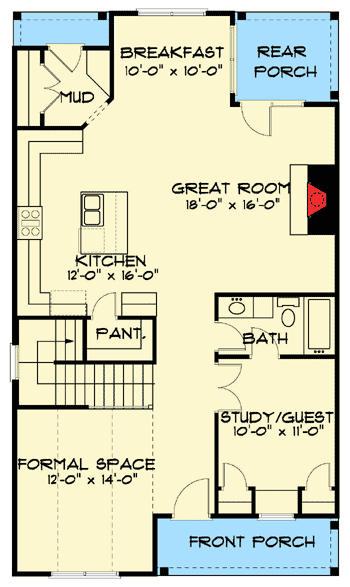

English Tudor Craftsman House Plan - 93046EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

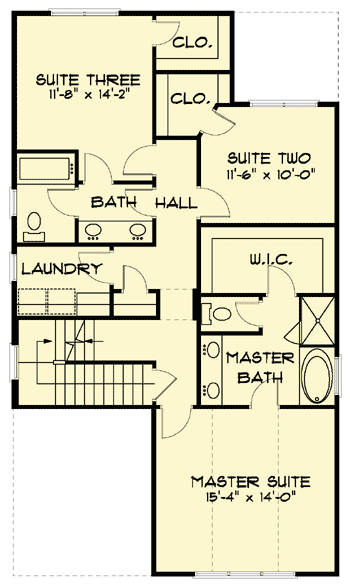

English Tudor Craftsman House Plan - 93046EL floor plan - 2nd Floor

Optional

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

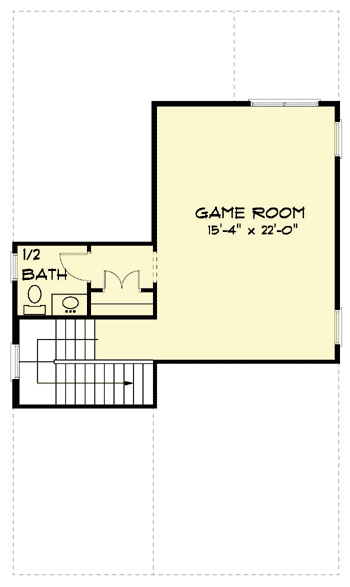

English Tudor Craftsman House Plan - 93046EL floor plan - Optional

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,226 sq. ft.
  • 1st Floor: 1,184 sq. ft.
  • 2nd Floor: 1,042 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 28' 2"
  • Depth: 48' 7"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

English Tudor Craftsman House Plan

  • 2,226

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD+PDF - Single-Build $2,395
  • View all purchase option online

About This Plan

  • This English Tudor Craftsman style house plan offers you a nice open floor plan with the main entertaining areas on the main floor.
  • The master suite is located on the second floor with a walk-in closet as well as the other two suites.
  • The laundry is also located on the second floor for easy access to the bedrooms.
  • This plan offers an optional third floor plan with a game room and 1/2 bath upstairs.
  • Related Plan: Get an alternate exterior with house plan 93047EL.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,226 sq. ft.
  • 1st Floor: 1,184 sq. ft.
  • 2nd Floor: 1,042 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 28' 2"
  • Depth: 48' 7"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Plan 93046EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93046EL
|
