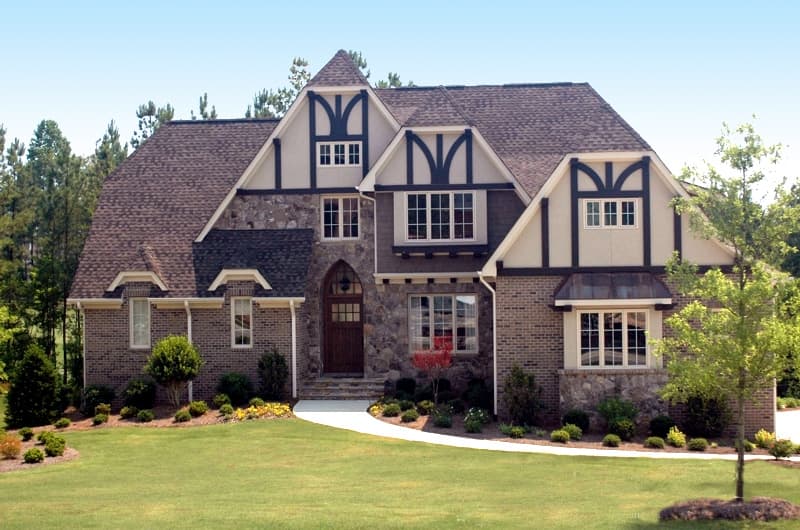

Englsh Manor With Expansion Upstairs

Plan 9384EL

  • 3,839

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • There's one great feature after another in this incredible English Manor Tudor house plan. The open floor plan features a stunning gourmet kitchen with a breakfast area opening onto a large terrace outside.
  • There will never again be any arguments about closet space, thanks to spacious his and her's walk-in closets in the downstairs master suite.
  • There's plenty of space for sleepovers and kids activities upstairs, with three suites, and a media room or playroom, plus optional space for future expansion.
  • Parking is a breeze in the garage with 3-car dimensions. If you need more space, an optional basement is available.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Englsh Manor With Expansion Upstairs - 9384EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Englsh Manor With Expansion Upstairs - 9384EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,839 sq. ft.
  • 1st Floor: 2,370 sq. ft.
  • 2nd Floor: 1,469 sq. ft.
  • Entry: 24 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 2"
  • Depth: 75' 1"
  • Max ridge height: 34' 2"

Garage

  • Type: Attached
  • Area: 770 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Englsh Manor With Expansion Upstairs

  • 3,839

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • CAD+PDF - Single-Build $2,750
  • PDF - Unlimited Build $2,945
  • CAD - Unlimited Build $3,600
  • View all purchase option online

About This Plan

  • There's one great feature after another in this incredible English Manor Tudor house plan. The open floor plan features a stunning gourmet kitchen with a breakfast area opening onto a large terrace outside.
  • There will never again be any arguments about closet space, thanks to spacious his and her's walk-in closets in the downstairs master suite.
  • There's plenty of space for sleepovers and kids activities upstairs, with three suites, and a media room or playroom, plus optional space for future expansion.
  • Parking is a breeze in the garage with 3-car dimensions. If you need more space, an optional basement is available.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,839 sq. ft.
  • 1st Floor: 2,370 sq. ft.
  • 2nd Floor: 1,469 sq. ft.
  • Entry: 24 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 2"
  • Depth: 75' 1"
  • Max ridge height: 34' 2"

Garage

  • Type: Attached
  • Area: 770 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Plan 9384EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/9384EL
|
