Enjoy the View

Plan 67709MG

  • 1,559

    Heated s.f.

  • 2-4

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • This multi-featured design emphasizes the indoor-outdoor relationship and gives you great spaces of both kinds.
  • All of the main living rooms have plenty of windows to take advantage of the view and easy access is provided to the large covered deck.
  • The open kitchen with its eating bar and walk-in pantry has a commanding view of the dining and great room and beyond, and it will be easy to visit with family and guests alike while preparing meals.
  • The master suite features an attractive tray ceiling and the master bath has an oversize corner shower.
  • On the basement floor there is plenty of room for extra bedrooms, bathroom, family room and and can be finished now or left for future expansion.
  • The roof has a 6:12 main pitch and a 7:12 secondary pitch.
  • The depth includes the covered outdoor area in back.

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

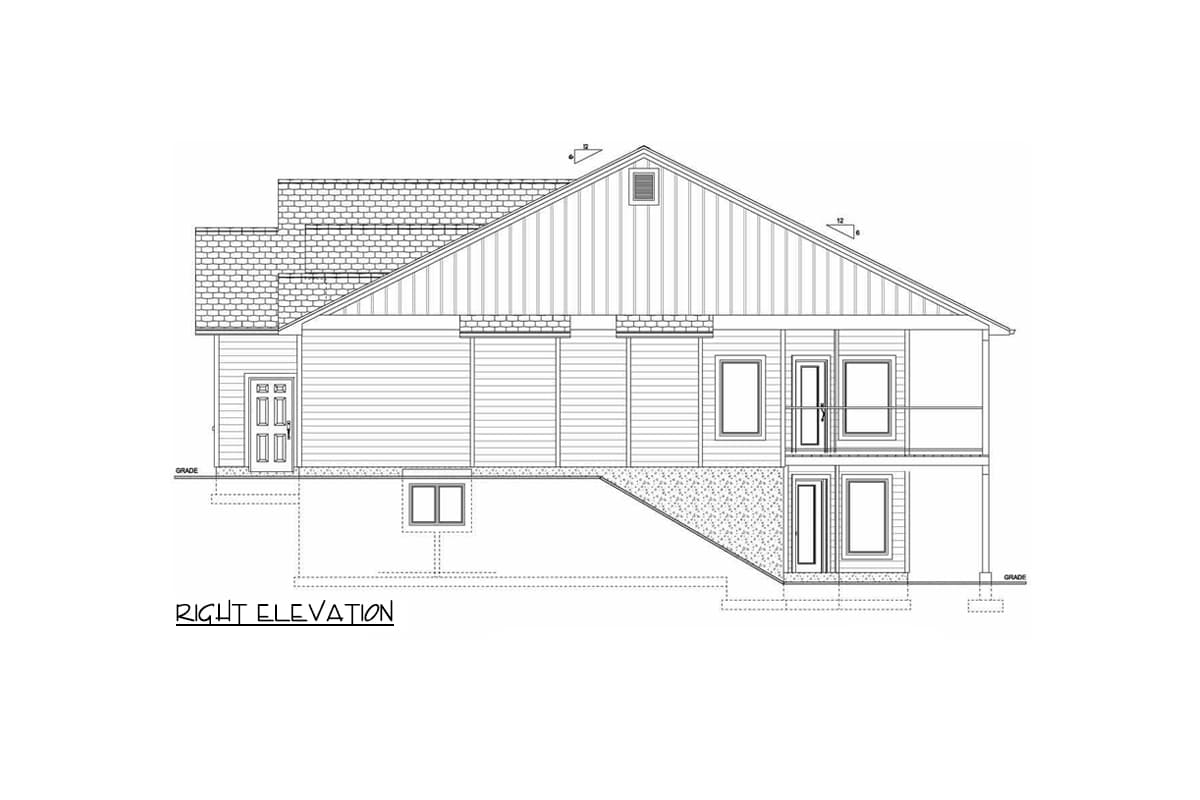

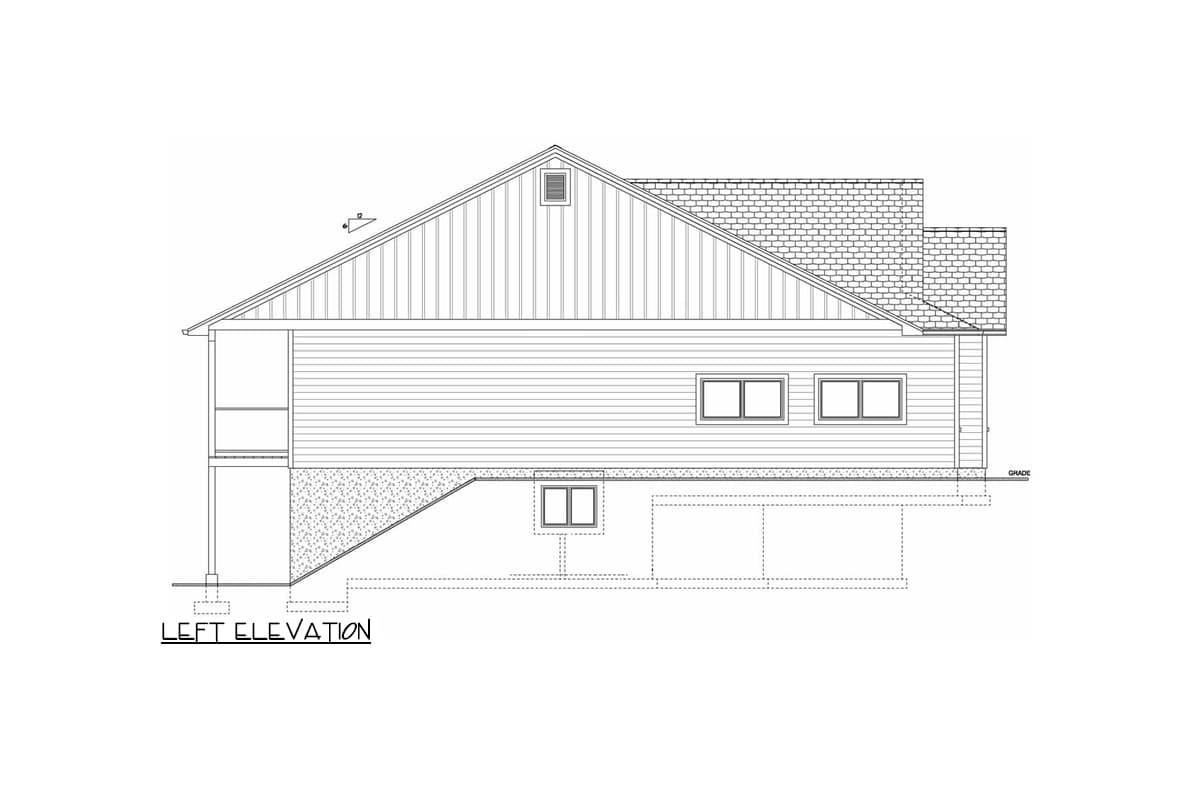

  • 4 elevations
  • Cross section
  • Wall details, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

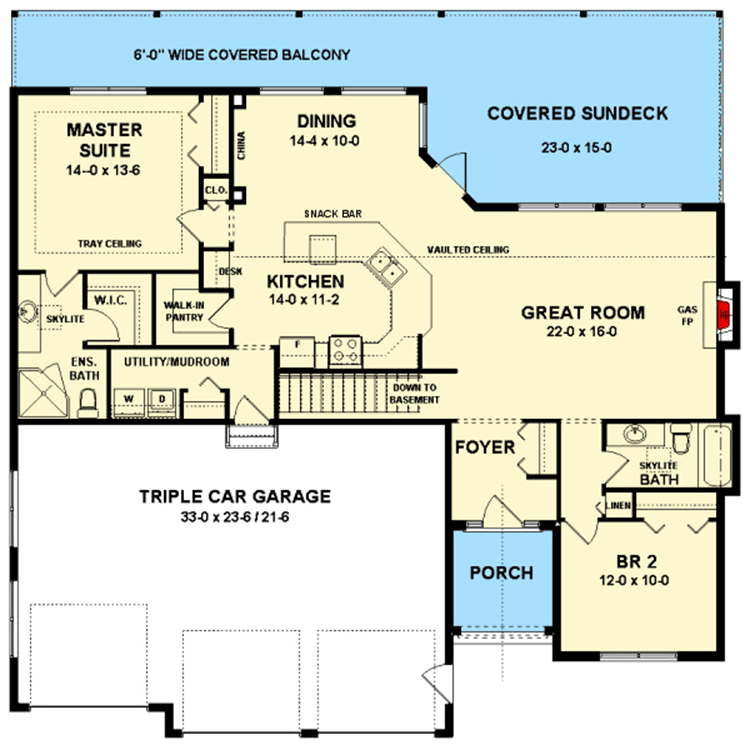

Enjoy the View - 67709MG floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

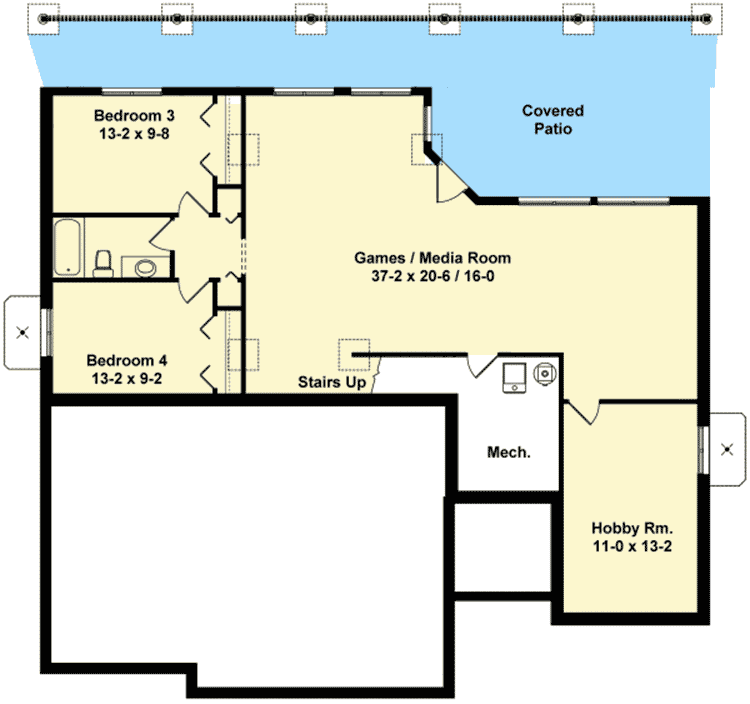

Enjoy the View - 67709MG floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,559 sq. ft.
  • 1st Floor: 1,559 sq. ft.
  • Optional Lower Level: 1,542 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 56' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 789 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Vaulted
Kitchen Vaulted
Master Bedroom Tray

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 7 on 12

Architectural Style

Special features

Plan Collections

Enjoy the View

  • 1,559

    Heated s.f.

  • 2-4

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,150
  • 5 Sets + PDF $1,400
  • CAD + PDF - Single-Build $1,645
  • View all purchase option online

About This Plan

  • This multi-featured design emphasizes the indoor-outdoor relationship and gives you great spaces of both kinds.
  • All of the main living rooms have plenty of windows to take advantage of the view and easy access is provided to the large covered deck.
  • The open kitchen with its eating bar and walk-in pantry has a commanding view of the dining and great room and beyond, and it will be easy to visit with family and guests alike while preparing meals.
  • The master suite features an attractive tray ceiling and the master bath has an oversize corner shower.
  • On the basement floor there is plenty of room for extra bedrooms, bathroom, family room and and can be finished now or left for future expansion.
  • The roof has a 6:12 main pitch and a 7:12 secondary pitch.
  • The depth includes the covered outdoor area in back.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,559 sq. ft.
  • 1st Floor: 1,559 sq. ft.
  • Optional Lower Level: 1,542 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 56' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 789 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 7 on 12
Plan 67709MG
