Estate Elegance

Plan 9546RW

  • 3,695

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

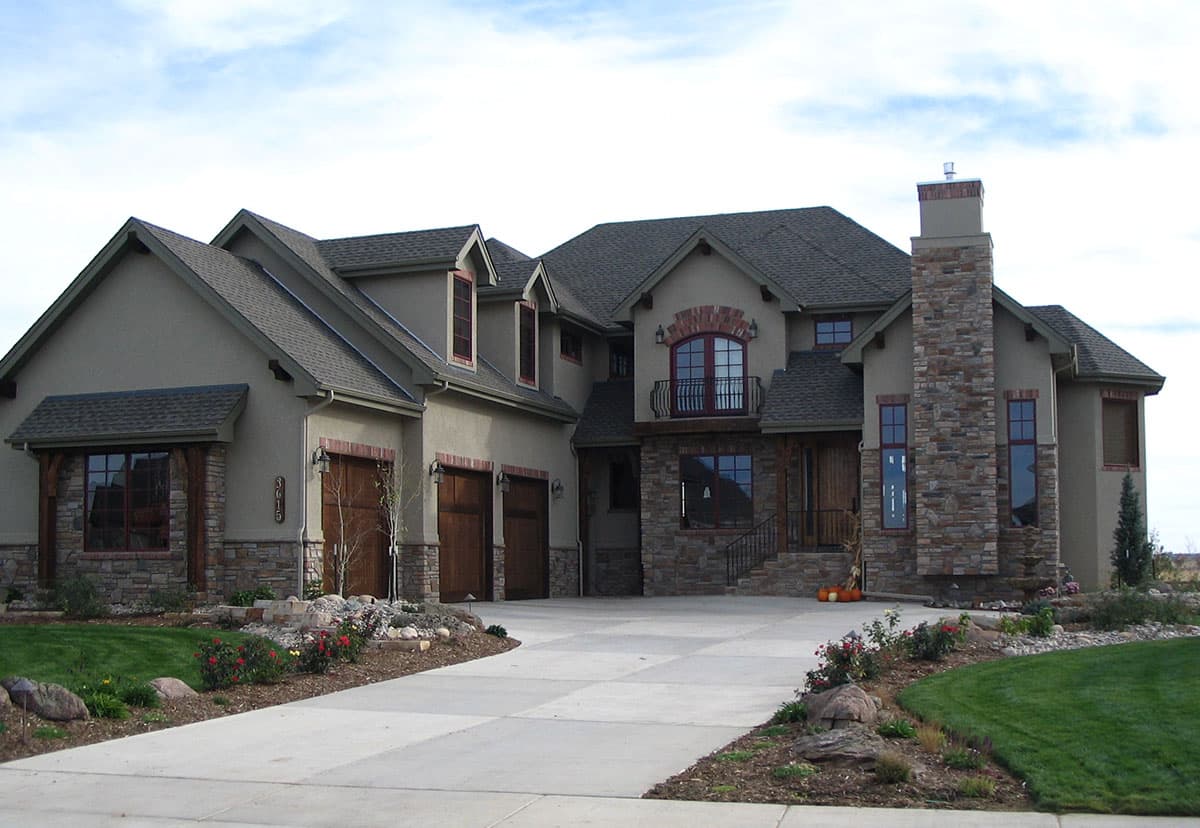

  • Stone, stucco and a hip roof all combine to give this luxury European home plan its elegance.
  • The two-story foyer makes a grand entrance with views of the formal dining room to your left as you enter.
  • Step down to the family room with its fireplace and wall of windows overlooking the rear and huge deck area.
  • Climb the stairs to access the raised study with a big bay window.
  • All the bedrooms are on the upper floor including the spacious master suite with two huge walk-in closets.
  • Bedrooms 3 and 4 share a Jack and Jill bath while bedroom 2 has a private bath.
  • As an added bonus, the optional finished lower level that comes with the plans gives you a media room, guest suite and more.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

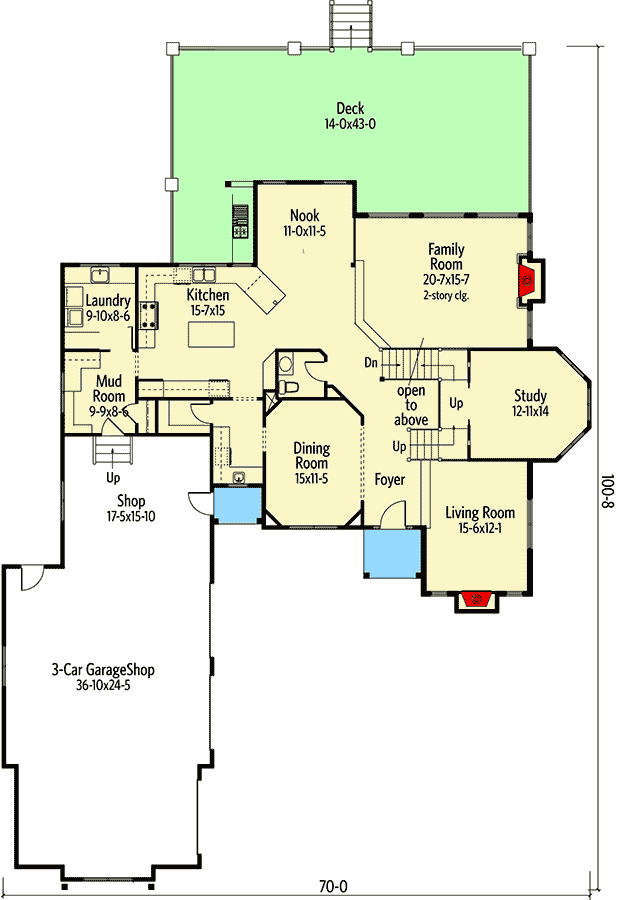

Estate Elegance - 9546RW floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

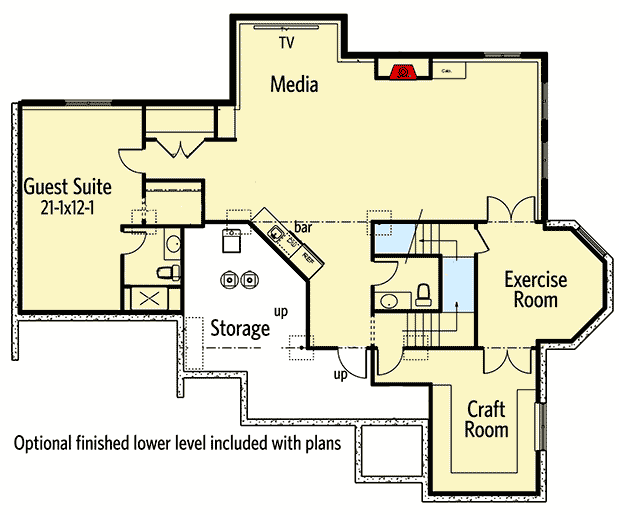

Estate Elegance - 9546RW floor plan - Lower Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

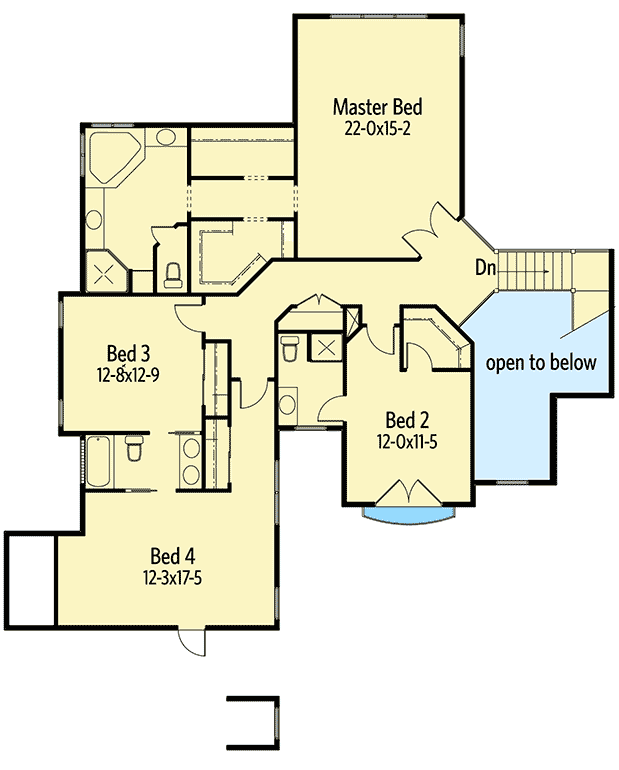

Estate Elegance - 9546RW floor plan - Second Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,695 sq. ft.
  • 1st Floor: 2,063 sq. ft.
  • 2nd Floor: 1,632 sq. ft.
  • Basement Unfinished: 2,063 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 100' 8"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 1159 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Estate Elegance

  • 3,695

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage
