Plan 19212GT
Estate Guest Cottage
Heated S.F.
581
Beds
1
Baths
1
Stories
1
What's Included
Plan Details
  • This cozy cottage features an intelligent use of space to create a much larger feel for a home of just 581 square feet.
  • The bedroom is generously sized, and an upstairs loft provides another interesting and appealing use of space.
What's Included
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

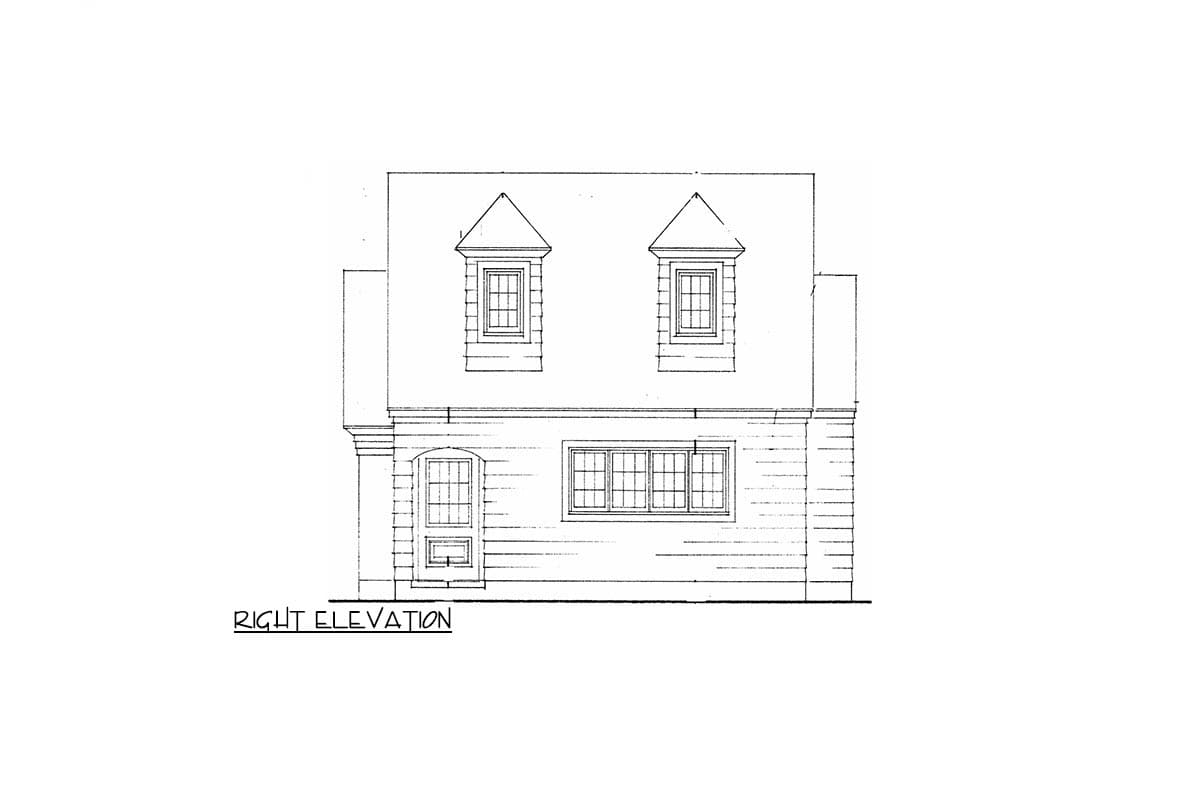

  • Exterior Elevations: A blueprint picture of all four sides showing exterior elevations with roof pitches, elements and measurements drawn to 1/4” scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Estate Guest Cottage

  • 581

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

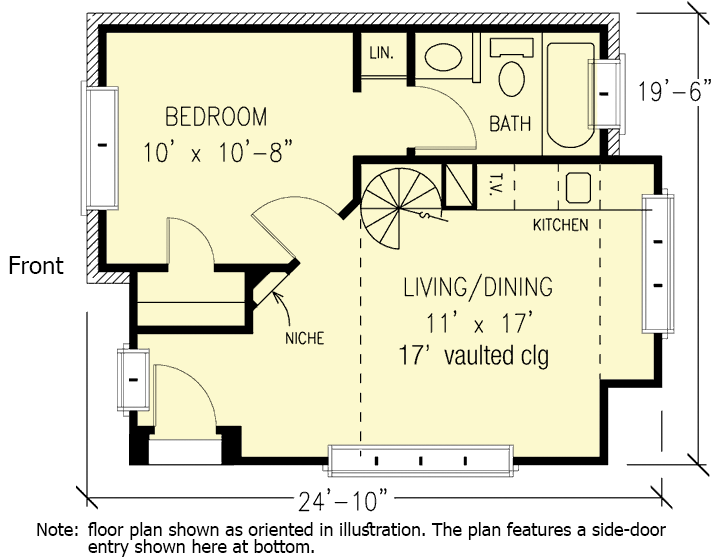

  • Main Level

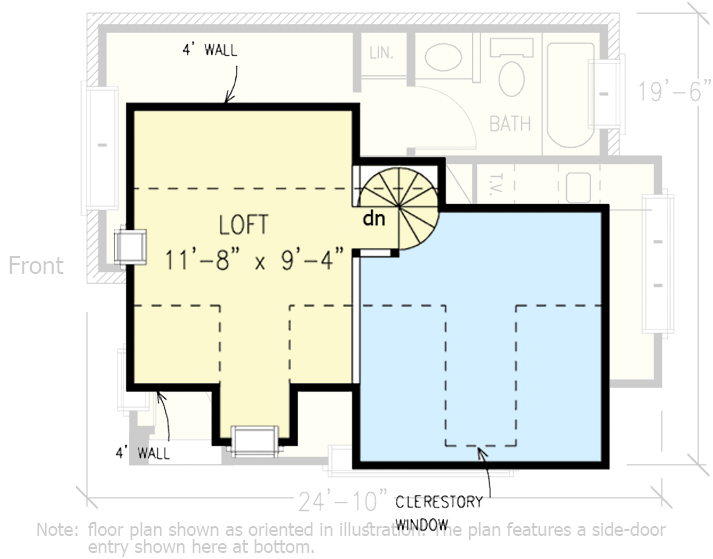

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 581 sq. ft.
  • 1st Floor: 449 sq. ft.
  • 2nd Floor: 132 sq. ft.

Dimensions

  • Width: 19' 6"
  • Depth: 24' 10"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Estate Guest Cottage

  • 581

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Estate Guest Cottage

  • 581

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Plan Details

Square Footage Breakdown

  • Total: 581 sq. ft.
  • 1st Floor: 449 sq. ft.
  • 2nd Floor: 132 sq. ft.

Dimensions

  • Width: 19' 6"
  • Depth: 24' 10"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12

    Main Level

    2nd Floor
