Euro-Contemporary House Plan with Indoor-Outdoor Living on Main Floor

Heated S.F.
2,711
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 36693TX

Main Level
Main Level
2nd Floor
2nd Floor

Plan 36693TX

M-F 9am-5pm EST |

1-203-761-8500

Main Level

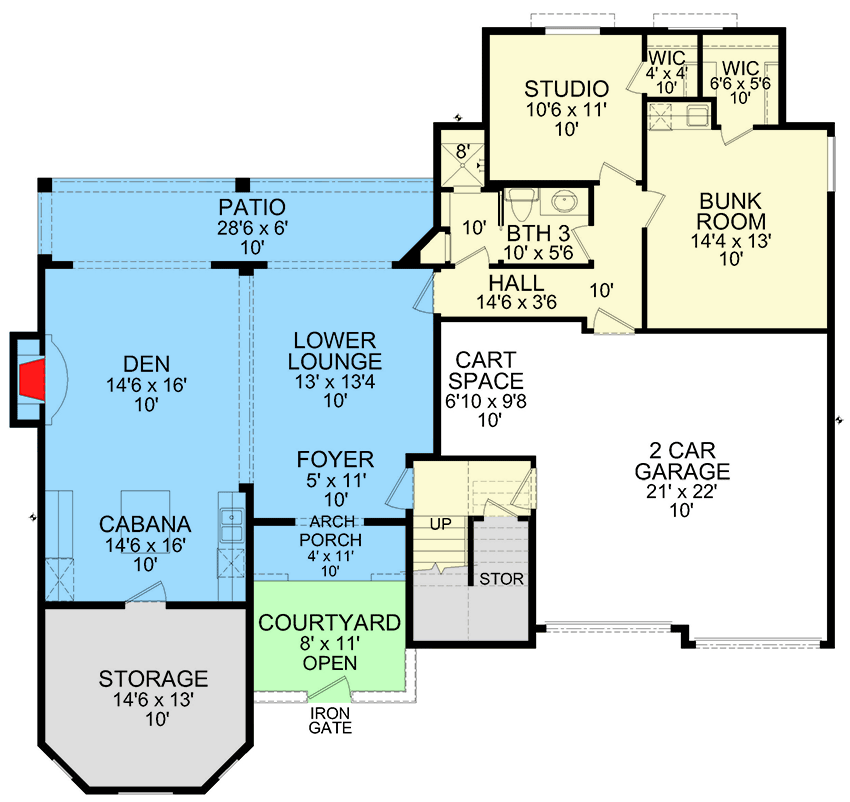

Plan 36693TX: Euro-Contemporary House Plan with Indoor-Outdoor Living on Main Floor - Floor Plan - Main Level - European, Transitional

2nd Floor

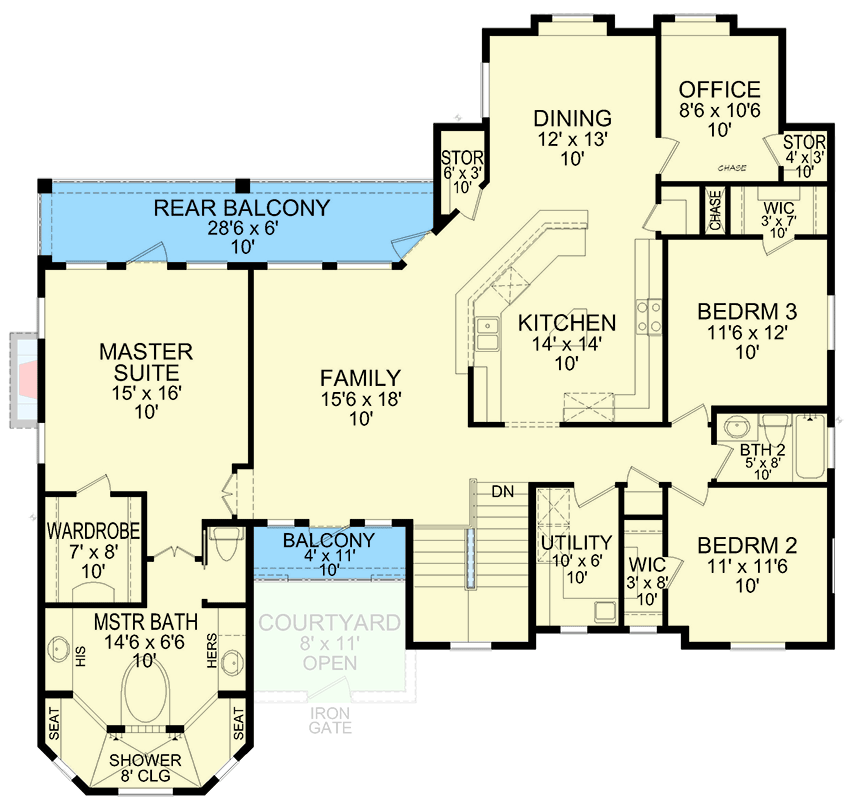

Plan 36693TX: Euro-Contemporary House Plan with Indoor-Outdoor Living on Main Floor - Floor Plan - 2nd Floor - European, Transitional

Plan Details

  • This 3 bed, 3 bath house plan gives you 2,711 square feet of heated living area and has a novel main floor with the "foyer" open to a lounge, den with fireplace and cabana that is open to the rear patio without any doors. That's right: you are indoors but outdoors, having fun with your friends.
  • The remainder of the main floor has a studio, a bunk room and a full bath.
  • Three bedrooms are on the second floor as is the kitchen and family room. A rear balcony offers another fresh air space and is accessible from both the master suite and the open living area.
  • A home office located in the back-right corner makes a great work-from-home space.

What's Included

  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

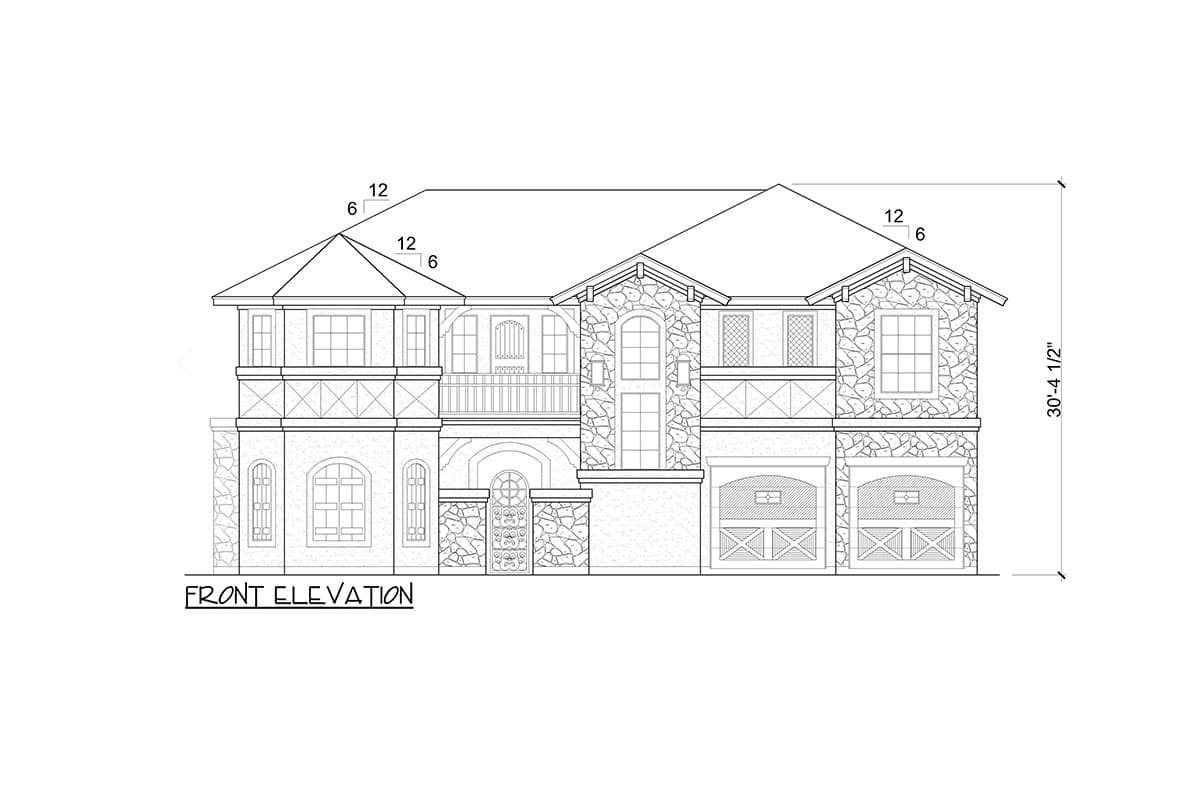

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,711 sq. ft.

1st Floor

712 sq. ft.

2nd Floor

1,999 sq. ft.

Porch, Front

44 sq. ft.

Porch, Rear

641 sq. ft.

Balcony / Veranda

44 sq. ft.

Covered Patio

168 sq. ft.

Rear Balcony

168 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

56' 0"

Max Ridge Height

30' 5"

Garage

Type

Attached

Area

544 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

European

Transitional

Special Features

Bunk Room

Den

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,711 sq. ft.

1st Floor

712 sq. ft.

2nd Floor

1,999 sq. ft.

Porch, Front

44 sq. ft.

Porch, Rear

641 sq. ft.

Balcony / Veranda

44 sq. ft.

Covered Patio

168 sq. ft.

Rear Balcony

168 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

56' 0"

Max Ridge Height

30' 5"

Garage

Type

Attached

Area

544 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

European

Transitional

Special Features

Bunk Room

Den

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - Upstairs
