Plan 12289JL
European Castle with Grand Staircase
Heated S.F.
6,780
Beds
5
Baths
5.5+ - 6.5+
Stories
2
Cars
4
What's Included
Plan Details

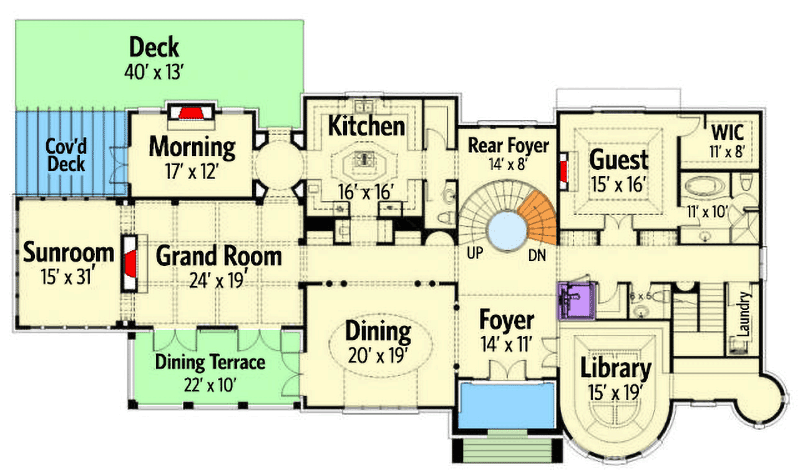

  • A grand circular staircase is the first thing you see when you enter this spacious European castle house plan.
  • Double doors in the formal dining room and grand room swing open to the front dining terrace.
  • Stunning special ceiling treatments can be found throughout the house even in the master hall and bathroom.
  • There's a bright and airy sunroom with windows on 3 sides and a morning room with fireplace for informal meals.
  • The huge kitchen has all the counter space you could want plus a tray ceiling.

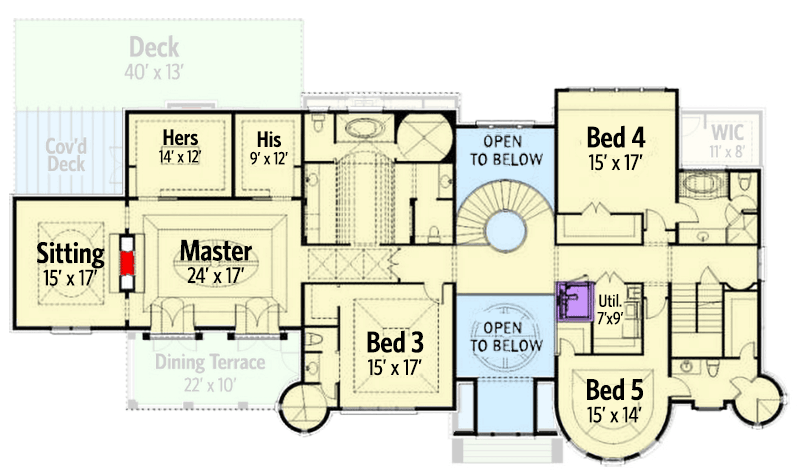

  • On the second floor, the magnificent master suite is top drawer, with a separate sitting room warmed by a two-way fireplace shared with the bedroom.
  • A stunning master bathroom rivals any spa and has a barrel vaulted ceiling, circular shower and a grand soaking tub.
  • Each of the other three bedrooms on this floor has a private bathroom and walk-in closet.
  • Two of the bedrooms have unique circular showers as well.

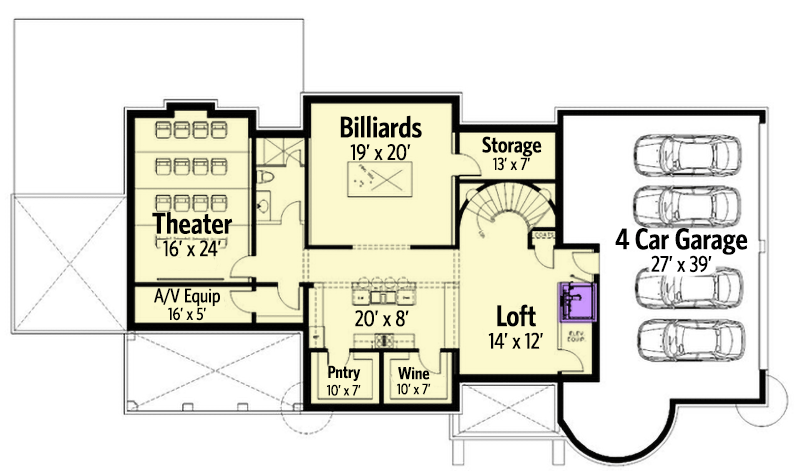

  • Finish the lower level and gain a fabulous home theater room, billiards room and wine cellar with wet bar nearby.
What's Included

  • Cover Sheet -The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation - These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above.  If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan - This page is drawn to 1/4”=1’-0” scale and includes exterior dimensions to build the home.  The notes are precise directions for your builder.  Important features such as built-ins, niches, and appliances are noted.  Doors and windows are identified and specific sizing can be found on window and door schedules. Conventional framing.
  • Second Floor Plan - The second floor includes stair details.  Often the reflective roof detail is shown legibly over the second floor plan.  This is helpful for the framing contractor.
  • Lighting and Electrical - On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors.  It is common place to build with your builder and/or electrician before the work starts to review this plan.  Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting - The same details as provided for the first floor.

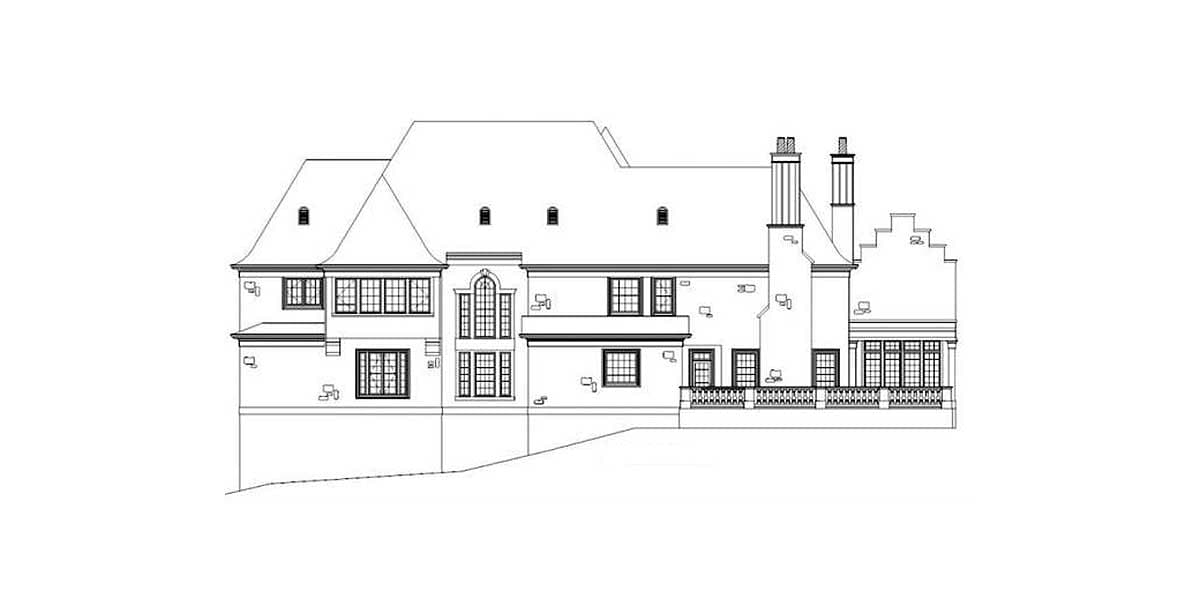

  • Front and Rear Elevations - The front and rear elevations may be on separate pages depending on the size of the house.  This page comes with exterior dimensions and notes required to complete construction.  This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
  • Right and Left Elevations - The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan - This drawing, usually at 1/4”=1’-0” scale, will be a bird’s eye view of the home.  It will show the ridges, hips, and valleys.  This page will show a beautifully designed roof.
  • Cross-Sections - Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations - Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes.  Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified.  After framing and sheet rock installation sizes of walls may change slightly.  The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: Most house plans will contain interior/cabinet elevations, however not all plans will. Please inquire prior to purchase.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

European Castle with Grand Staircase

  • 6,780

    Heated s.f.

  • 5

    Beds

  • 5.5+ - 6.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 6,780 sq. ft.
  • 1st Floor: 3,627 sq. ft.
  • 2nd Floor: 3,153 sq. ft.

Dimensions

  • Width: 102' 0"
  • Depth: 50' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5 or 6
  • Half bathrooms: 2

Garage

  • Type: Drive Under
  • Area: 1042 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site

European Castle with Grand Staircase

  • 6,780

    Heated s.f.

  • 5

    Beds

  • 5.5+ - 6.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

European Castle with Grand Staircase

  • 6,780

    Heated s.f.

  • 5

    Beds

  • 5.5+ - 6.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 6,780 sq. ft.
  • 1st Floor: 3,627 sq. ft.
  • 2nd Floor: 3,153 sq. ft.

Dimensions

  • Width: 102' 0"
  • Depth: 50' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5 or 6
  • Half bathrooms: 2

Garage

  • Type: Drive Under
  • Area: 1042 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
