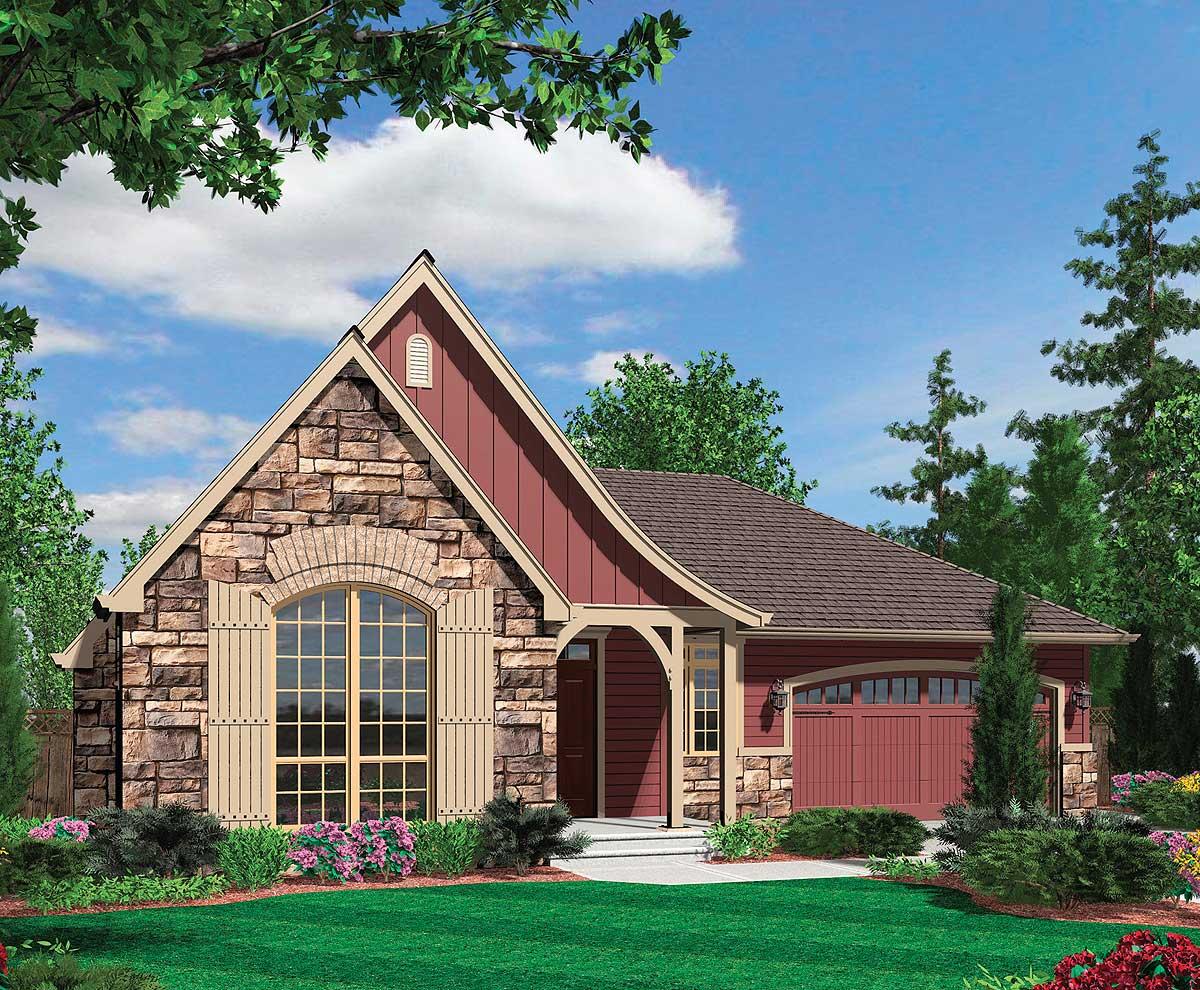

No stone was left unturned in the design of this enchanting plan. Though moderate in size, it accounts for great livability and marvelous curb appeal. Note, for instance, the carefully chosen mix of exterior siding materials: stone, lap siding and vertical battens.
A hint of Craftsman detail appears in the suggested arch at the entry, echoing the arch on the two-car garage.

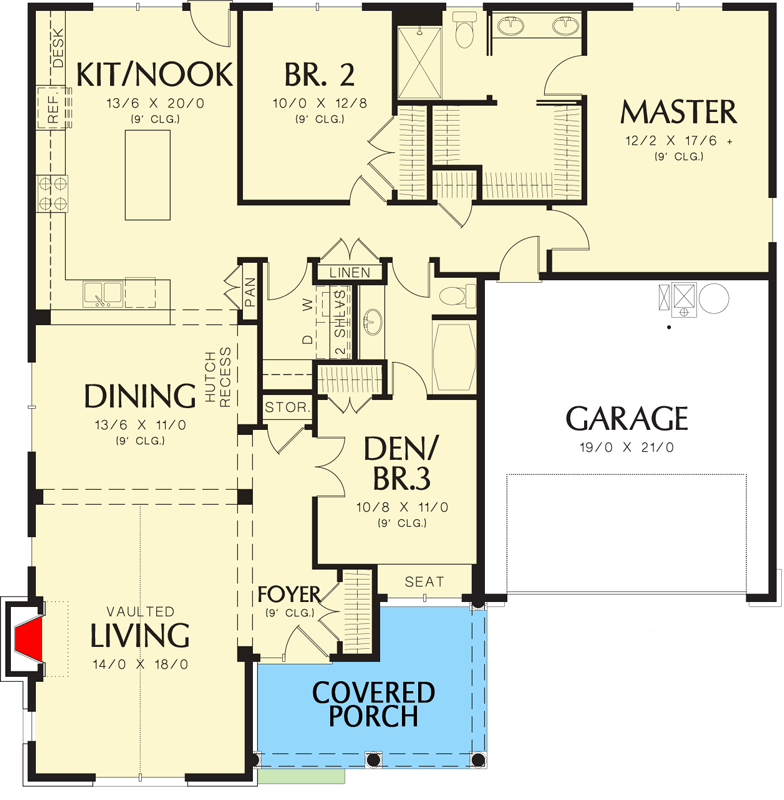

The floor plan is flexible, yet includes well-defined spaces. Move easily from front living room (with fireplace), through the dining room, to the gourmet kitchen and attached nook. A door in the nook leads out to a rear patio.
You may prefer two bedrooms and a den, or three bedrooms'the floor plan allows for either option.
The master suite is especially interesting. It has a spacious salon, walk-in closet and bath with dual lavatories.
The den and Bedroom 2 share a full bath with nearby linen closet.
Related Plan: For an alternate version, see house plan 69117AM.

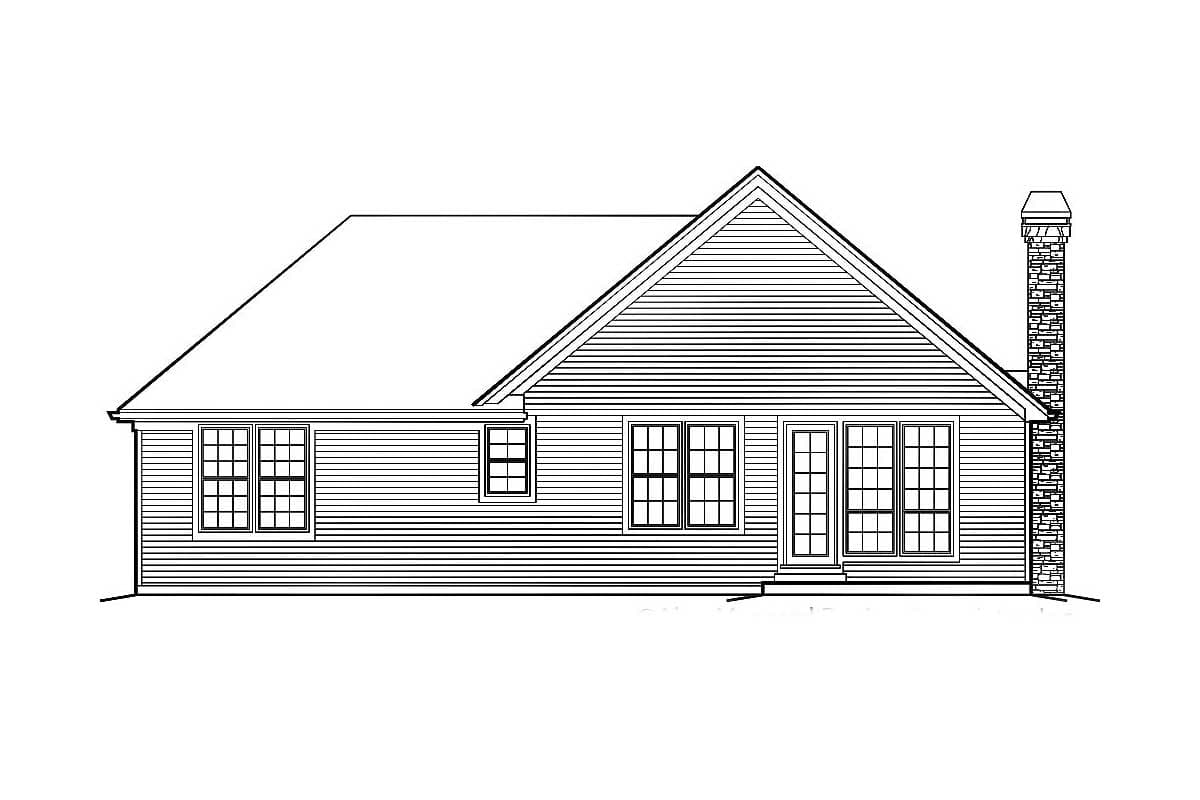

Exterior Elevations: In addition to the front exterior, your
drawing set will include drawings of the rear and sides of your house as well.
These drawings give notes on exterior materials and finishes. Particular
attention is given to cornice detail, brick and stone accents, or other finish
items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete
walls, footings, pads, posts, beams, bearing walls, and any stepped foundation
information along with any retaining wall info (schematic only). A typical wall
section for the home is also usually included on this page (if not, it is
elsewhere in your plan set, as space allows). If your plan features a poured
concrete slab rather than a basement or crawlspace, the foundation page shows
footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and
windows/doors are dimensioned. Room sizes are indicated and any beams, posts
and structural bearing points are called out. The floor plans include an
electrical legend, and electrical fittings, lights and outlets are shown. Floor
Plans will also indicate cross–section details (provided on the sections page)
and show any special framing details applicable to the design. Cabinet elevations
are included for kitchen and bathrooms; some designs feature cabinet elevations
for design–related built–ins too.
Building Sections: Building sections show changes in
floor, ceiling, or roof height, and the relationship of one level to another. Our
section pages also show how the stairs are calculated (if there are some!) and
depict roof and foundation members. We try and draw sections to show the most
useful information — choosing locations where there are elements you or your
contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are
shown, slope directions are indicated and structural members are sized and
called out if applicable. The gravity loads used to calculate the rafters,
beams and posts are indicated , and we also show gutters, downspouts, and any
roof venting required for your home.
Notes and Details
home comes detailed to meet the requirements of the latest adopted version of
the ‘International Residential Code’, and our notes and details pages outline
all the elements applicable to the design of your home. Compliance with further
standards may need to be incorporated into your plan set, depending on the
requirements of your building department — these are usually done locally.
